URJ201W-GNZGK (2015)
Toyota Lexus Lx570
Production
Sep 2015
-
Sep 9999
Engine
3URFE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )

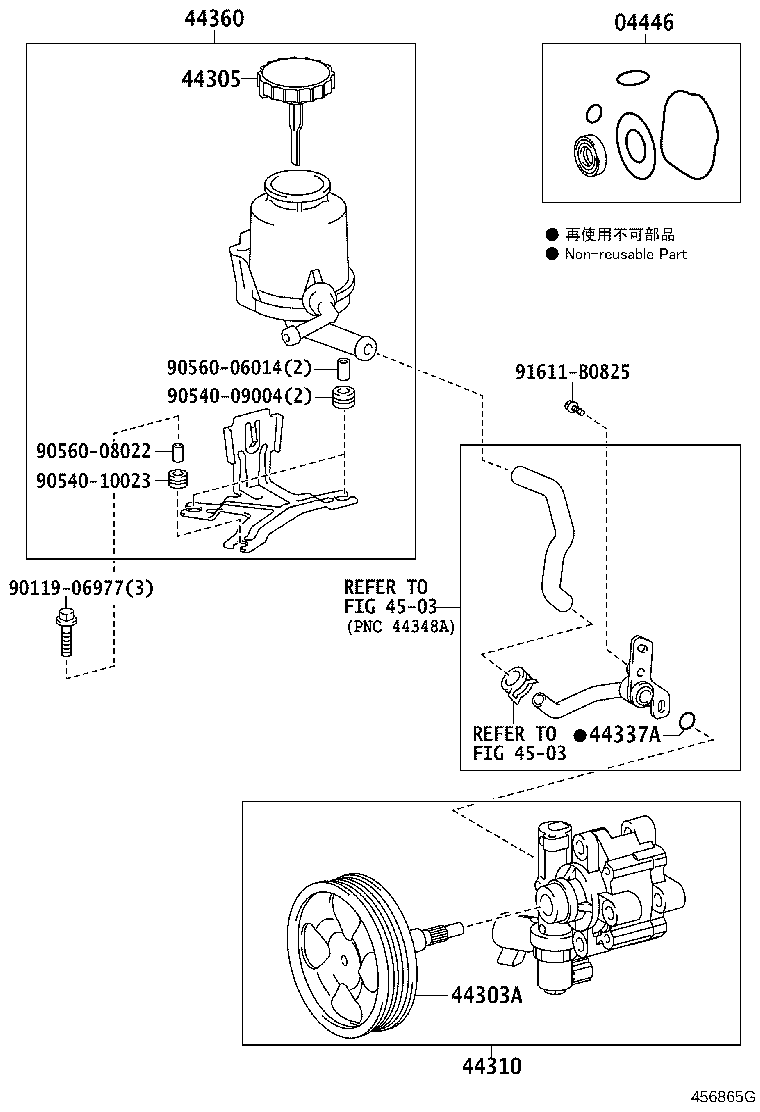

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60311 |
URJ201 |
1 | ||
| 04446-60310 |
URJ201 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-60030 |
URJ201 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-37031 |
URJ201 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-60631 |
URJ201 |
1 | ||
| 44310-60630 |
URJ201 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-15025 |
URJ201 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60291 |
URJ201 |
1 | ||
| Common parts | ||||
| 90119-06977 | ||||
| 90540-09004 | ||||
| 90540-10023 | ||||
| 90560-06014 | ||||
| 90560-08022 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 4503 | ||||
