UVF46-AEXQH (2007)
Toyota Lexus Ls600h/600hl

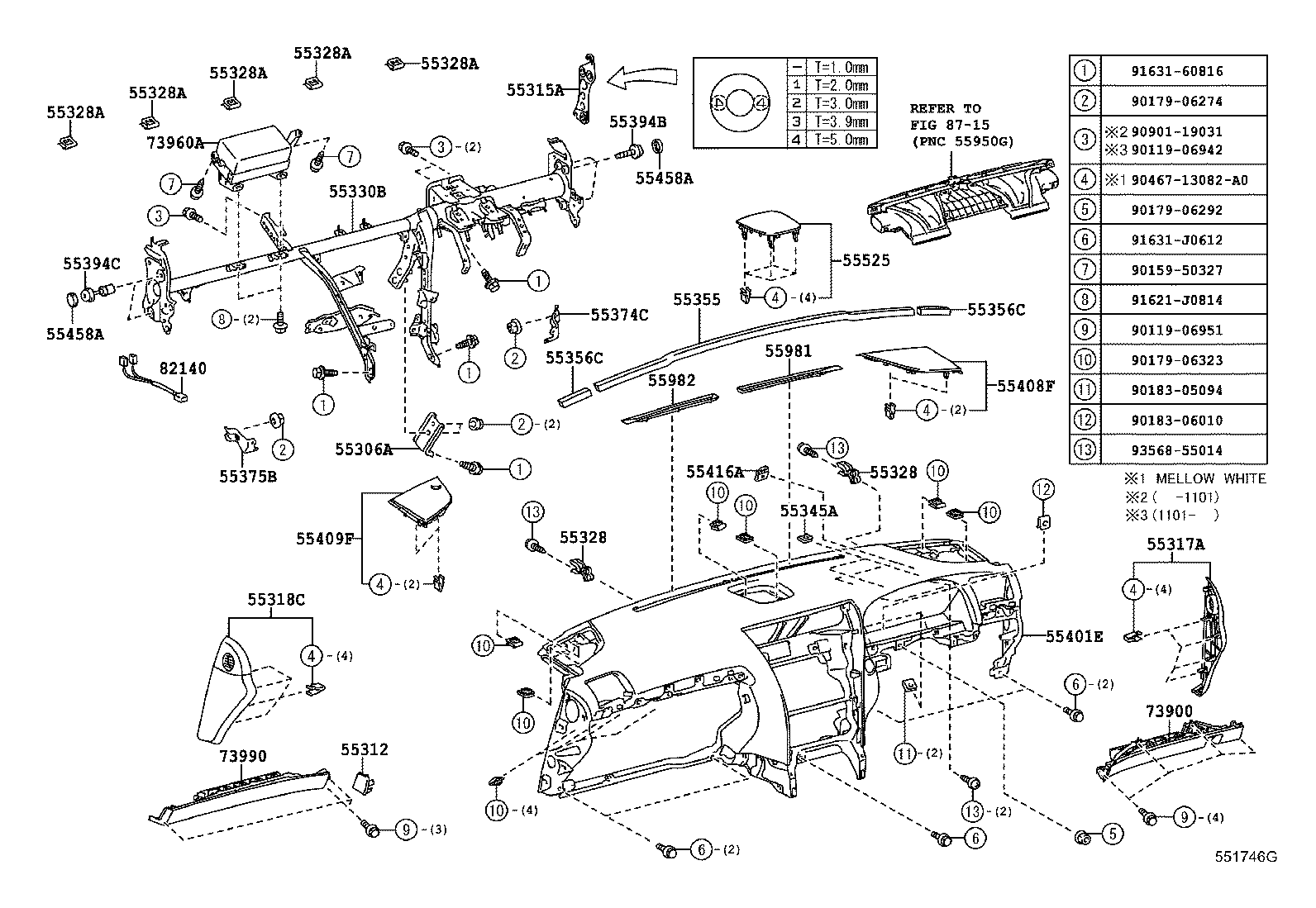

ILLUST NO. 1 OF 2(0704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50210 |
UVF4# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-50080A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55312-50080A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 55312-50080B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55312-50080C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 62231-50020 |
UVF4# 厚さ=2.0 |
1 | ||
| 62231-50050 |
UVF4# 厚さ=5.0 |
1 | ||
| 62231-50010 |
UVF4# 厚さ=1.0 |
1 | ||
| 62231-50040 |
UVF4# 厚さ=3.9 |
1 | ||
| 62231-50030 |
UVF4# 厚さ=3.0 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-50040C1 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55317-50040C0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55317-50040E1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55317-50040E0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-50050E0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55318-50050E1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55318-50050C1 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55318-50050C0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50160 |
UVF4# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50160 |
UVF4# |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-50230 |
UVF4# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
UVF4# |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-50080 |
UVF4# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-50020 |
UVF4# |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-50020 |
UVF4# |
2 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-50100 |
UVF4# |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-50110 |
UVF4# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-50010 |
UVF4# |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-33041 |
UVF4# |
2 | ||
| 55394-51011 |
UVF4# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-50160C3 |
UVF46 BLACK,TRIM05,08,20,21 |
1 | ||
| 55401-50160C4 |
UVF46 BLACK,TRIM10,11 |
1 | ||
| 55401-50910C2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM10,11 |
1 | ||
| 55401-50160E2 |
UVF46 ORCHID BROWN,TRIM00,06 |
1 | ||
| 55401-50160E3 |
UVF46 ORCHID BROWN,TRIM01,07 |
1 | ||
| 55401-50910E3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,ORCHID BROWN,TRIM01,07 |
1 | ||
| 55401-50910E2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,ORCHID BROWN,TRIM00,06 |
1 | ||
| 55401-50910C3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM05,08,20,21 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-50120C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55408-50120E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-50070E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55409-50070C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UVF4# |
2 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
UVF4# |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
UVF4# |
5 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-50020C0 |
UVF46 BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55510-50020E0 |
UVF46 ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50110 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用 |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-50050 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-50040A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 73900-50040A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 73900-50040C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 73900-50040B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-50090 |
UVF4# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-50040A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 73990-50040A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 73990-50040C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 73990-50040B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-47010 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 90179-06323 | ||||
| 90183-05094 | ||||
| 90183-06010 | ||||
| 90467-13082A0 | ||||
| 90901-19031 | ||||
| 91621-J0814 | ||||
| 91631-60816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||

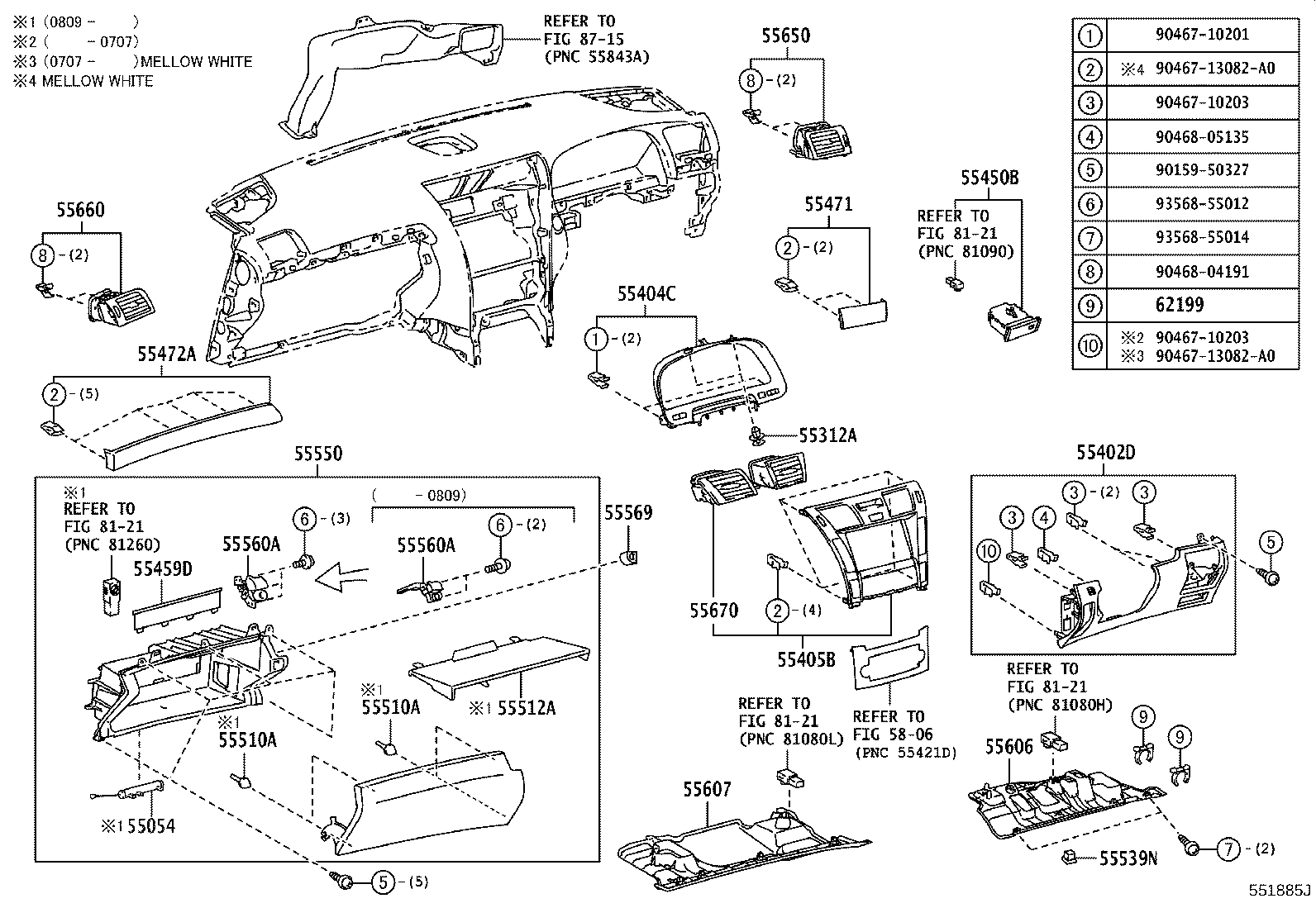

ILLUST NO. 2 OF 2(0704-0911)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06165 |
UVF4# |
2 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-50190A4 |
UVF46 IVORY,TRIM00,06 |
1 | ||
| 55402-50200B2 |
UVF46 ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),LT.GRAY,TRIM10,11 |
1 | ||
| 55402-50200A4 |
UVF46 ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),IVORY,TRIM00,06 |
1 | ||
| 55402-50200A5 |
UVF46 ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),MELLOW WHITE,TRIM01,07 |
1 | ||
| 55402-50150A2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用&ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),IVORY,TRIM00,06 |
1 | ||
| 55402-50150A3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,MELLOW WHITE,TRIM01,07 |
1 | ||
| 55402-50190B2 |
UVF46 LT.GRAY,TRIM10,11 |
1 | ||
| 55402-50190A5 |
UVF46 MELLOW WHITE,TRIM01,07 |
1 | ||
| 55402-50200C2 |
UVF46 ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),BLACK,TRIM05,08,20,21 |
1 | ||
| 55402-50190C2 |
UVF46 BLACK,TRIM05,08,20,21 |
1 | ||
| 55402-50150A2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,IVORY,TRIM00,06 |
1 | ||
| 55402-50150B1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用&ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),LT.GRAY,TRIM10,11 |
1 | ||
| 55402-50150A3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用&ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),MELLOW WHITE,TRIM01,07 |
1 | ||
| 55402-50150B1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,LT.GRAY,TRIM10,11 |
1 | ||
| 55402-50150C1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用&ﾘﾔｼｰﾄｱｼﾞｬｽﾀ−ｵｯﾄﾏﾝ(ﾊﾟﾜｰ),BLACK,TRIM05,08,20,21 |
1 | ||
| 55402-50150C1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM05,08,20,21 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50190 |
UVF4# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & ﾊﾛｹﾞﾝ & *AFLS & 赤外線 |
1 | ||
| 55404-50190 |
UVF4# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & ﾊﾛｹﾞﾝ & *AFLS |
1 | ||
| 55404-50180 |
UVF4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-50110 |
UVF4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-50090A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55450-50090B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55450-50090A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 55450-50090C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
UVF4# |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-50020B0 |
UVF4# MD.GRAY,TRIM06,08,10,21 |
1 | ||
| 55471-50020E1 |
UVF4# BROWN,TRIM00,07,11,20 |
1 | ||
| 55471-50020E0 |
UVF4# DK.BROWN,TRIM01,05 |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-50040B0 |
UVF46 GRAY,TRIM06,08,10,21 |
1 | ||
| 55472-50040E1 |
UVF46 BROWN,TRIM00,07,11,20 |
1 | ||
| 55472-50020B0 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,MD.GRAY,TRIM06,08,10,21 |
1 | ||
| 55472-50040E0 |
UVF46 DK.BROWN,TRIM01,05 |
1 | ||
| 55472-50020E0 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,DK.BROWN,TRIM01,05 |
1 | ||
| 55472-50020E1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BROWN,TRIM00,07,11,20 |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
UVF4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-50170B3 |
UVF46 LT.GRAY,TRIM10,11 |
1 | ||
| 55550-50140C1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM05,08,20,21 |
1 | ||
| 55550-50170C3 |
UVF46 BLACK,TRIM05,08,20,21 |
1 | ||
| 55550-50140A3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,MELLOW WHITE,TRIM01,07 |
1 | ||
| 55550-50140A2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,IVORY,TRIM00,06 |
1 | ||
| 55550-50170A7 |
UVF46 MELLOW WHITE,TRIM01,07 |
1 | ||
| 55550-50170A6 |
UVF46 IVORY,TRIM00,06 |
1 | ||
| 55550-50140B1 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,LT.GRAY,TRIM10,11 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50160A1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55560-50160C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55560-50160A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55560-50160B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50160A1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55560-50160C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55560-50160A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55560-50160B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50060A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 55569-50060A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55569-50060B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55569-50060C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-50140 |
UVF4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-50150 |
UVF4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50090E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55650-50090C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50150E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55660-50150C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-50070 |
UVF4# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
UVF4# |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8121 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0704- )
ﾎﾝｶﾞﾜﾊﾞﾘ-ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50210 |
UVF4# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-50080A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55312-50080A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 55312-50080B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55312-50080C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 62231-50020 |
UVF4# 厚さ=2.0 |
1 | ||
| 62231-50050 |
UVF4# 厚さ=5.0 |
1 | ||
| 62231-50010 |
UVF4# 厚さ=1.0 |
1 | ||
| 62231-50040 |
UVF4# 厚さ=3.9 |
1 | ||
| 62231-50030 |
UVF4# 厚さ=3.0 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-50040C1 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55317-50040C0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55317-50040E1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55317-50040E0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-50050E0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 55318-50050E1 |
UVF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55318-50050C1 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 55318-50050C0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50160 |
UVF4# |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-50160 |
UVF4# |
2 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-30160 |
UVF4# |
5 | ||
| 55328-50170 |
UVF4# |
5 | ||
| 55328-33120 |
UVF4# |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-50230 |
UVF4# |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
UVF4# |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-50080 |
UVF4# |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-50020 |
UVF4# |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-50020 |
UVF4# |
2 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-50100 |
UVF4# |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-50110 |
UVF4# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-50010 |
UVF4# |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-33041 |
UVF4# |
2 | ||
| 55394-51011 |
UVF4# |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-50160C3 |
UVF46 BLACK,TRIM05,08,20,21 |
1 | ||
| 55401-50160C4 |
UVF46 BLACK,TRIM10,11 |
1 | ||
| 55401-50910C2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM10,11 |
1 | ||
| 55401-50160E2 |
UVF46 ORCHID BROWN,TRIM00,06 |
1 | ||
| 55401-50160E3 |
UVF46 ORCHID BROWN,TRIM01,07 |
1 | ||
| 55401-50910E3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,ORCHID BROWN,TRIM01,07 |
1 | ||
| 55401-50910E2 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,ORCHID BROWN,TRIM00,06 |
1 | ||
| 55401-50910C3 |
UVF46 ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−ﾉｰﾏﾙ用,BLACK,TRIM05,08,20,21 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-50120C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55408-50120E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-50070E0 |
UVF4# ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 55409-50070C0 |
UVF4# BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UVF4# |
2 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
UVF4# |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
UVF4# |
5 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-50020C0 |
UVF46 BLACK,TRIM05,08,10,11,20,21 |
1 | ||
| 55510-50020E0 |
UVF46 ORCHID BROWN,TRIM00,01,06,07 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-50040A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 73900-50040A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 73900-50040C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 73900-50040B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-50090 |
UVF4# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-50040A1 |
UVF4# MELLOW WHITE,TRIM01,05,07 |
1 | ||
| 73990-50040A0 |
UVF4# IVORY,TRIM00,06 |
1 | ||
| 73990-50040C0 |
UVF4# BLACK,TRIM05,08,20,21 |
1 | ||
| 73990-50040B0 |
UVF4# LT.GRAY,TRIM10,11 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-47010 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 90179-06323 | ||||
| 90183-05094 | ||||
| 90183-06010 | ||||
| 90467-13082A0 | ||||
| 90901-19031 | ||||
| 91621-J0814 | ||||
| 91631-60816 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
