UVF45-AEXQH (2007)
Toyota Lexus Ls600h/600hl
Production
Apr 2007
-
Sep 2008
Engine
2URFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0704- )

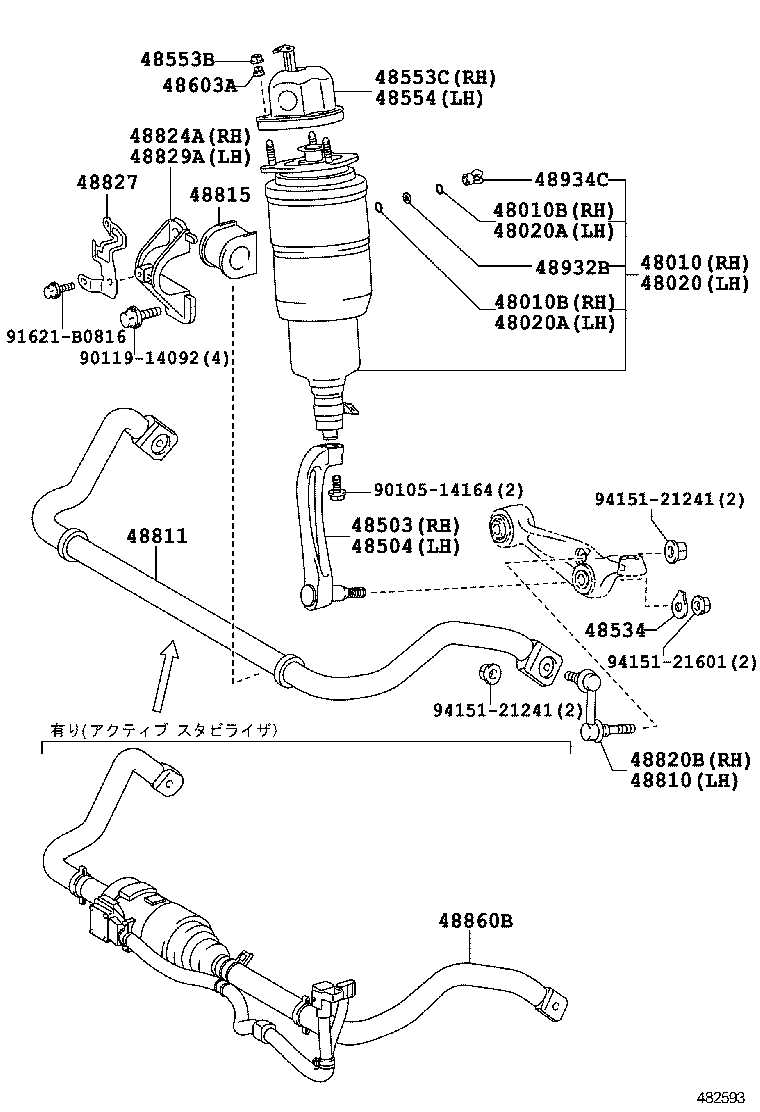

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-50200 |
UVF4# |
1 | ||
| 48010-50201 |
UVF4# |
1 | ||
| 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
UVF4# |
2 | ||
| 48010B - RING, O(FOR FRONT PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
UVF4# |
2 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48020-50200 |
UVF4# |
1 | ||
| 48020-50201 |
UVF4# |
1 | ||
| 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
UVF4# |
2 | ||
| 48020A - RING, O(FOR FRONT PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
UVF4# |
2 | ||
| 48503 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48503-50010 |
UVF4# |
1 | ||
| 48504 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48504-50010 |
UVF4# |
1 | ||
| 48534 - PLATE, FRONT SHOCK ABSORBER UPPER BRACKET | ||||
| 48534-30010 |
UVF4# |
2 | ||
| 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) | ||||
| 90179-10174 |
UVF4# |
6 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-50120 |
UVF4# |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48553-50120 |
UVF4# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
UVF4# |
6 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-50020 |
UVF4# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-50150 |
UVF45 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-50220 |
UVF4# |
2 | ||
| 48815-50230 |
UVF45 ｽﾀﾋﾞﾗｲｻﾞｰ−ｱｸﾃｨﾌﾞｽﾀﾋﾞﾗｲｻﾞｰｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-50030 |
UVF4# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-50060 |
UVF4# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-50010 |
UVF4# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-50010 |
UVF4# |
1 | ||
| 48860B - ACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL | ||||
| 48860-50010 |
UVF45 ｽﾀﾋﾞﾗｲｻﾞｰ−ｱｸﾃｨﾌﾞｽﾀﾋﾞﾗｲｻﾞｰｻｽﾍﾟﾝｼｮﾝ |
1 | ||
| 48932B - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
UVF4# |
2 | ||
| 48934C - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
UVF4# |
2 | ||
| Common parts | ||||
| 90105-14164 | ||||
| 90119-14092 | ||||
| 91621-B0816 | ||||
| 94151-21241 | ||||
| 94151-21601 | ||||
