Toyota Lexus ls600h/600hl UVF45 STEERING WHEEL

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-50230E0	UVF45 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM00,01,06,07	04/2007 - 09/2008	1
45100-50230C0	UVF45 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM05,08,1#,2#	04/2007 - 09/2008	1
45100-50250C0	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,BLACK,TRIM11,20	04/2007 - 09/2008	1
45100-50250E2	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,ORCHID BROWN,TRIM06	04/2007 - 09/2008	1
45100-50250E0	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,ORCHID BROWN,TRIM01	04/2007 - 09/2008	1
45100-50250C3	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,BLACK,TRIM05	04/2007 - 09/2008	1
45100-50250C1	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,BLACK,TRIM08,10,21	04/2007 - 09/2008	1
45100-50250E1	UVF45 4本ｽﾎﾟｰｸ,ｳｯﾄﾞ&ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝOﾋｰﾀ付き,ORCHID BROWN,TRIM00,07	04/2007 - 09/2008	1
45130 - BUTTON ASSY, HORN
45130-50260C0	UVF4# BLACK,TRIM05,08,10,11,20,21	04/2007 - 09/2008	1
45130-50260E0	UVF4# ORCHID BROWN,TRIM00,01,06,07	04/2007 - 09/2008	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-50050E0	UVF4# ORCHID BROWN,TRIM00,01,06,07	04/2007 - 09/2008	1
45184-50050C0	UVF4# BLACK,TRIM05,08,10,11,20,21	04/2007 - 09/2008	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-50060C0	UVF4# BLACK,TRIM05,08,10,11,20,21	04/2007 - 09/2008	1
45186-50060E0	UVF4# ORCHID BROWN,TRIM00,01,06,07	04/2007 - 09/2008	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	UVF4# 長さ=18	04/2007 - 09/2008	2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010	UVF4# 長さ=18	04/2007 - 09/2008	2
45201P - NUT, STEERING WHEEL SET
90179-12071	UVF4#	04/2007 - 09/2008	1
45713A - DAMPER, STEERING SHAKE
45713-50050	UVF4#	04/2007 - 09/2008	1
55910E - CONTROL ASSY, STEERING WHEEL HEATER
55910-50010	UVF45 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−4本ｽﾎﾟｰｸ,木目&ｽﾃｱﾘﾝｸﾞﾋｰﾀ付き	04/2007 - 09/2008	1
Common parts
90159-50199
90168-40113

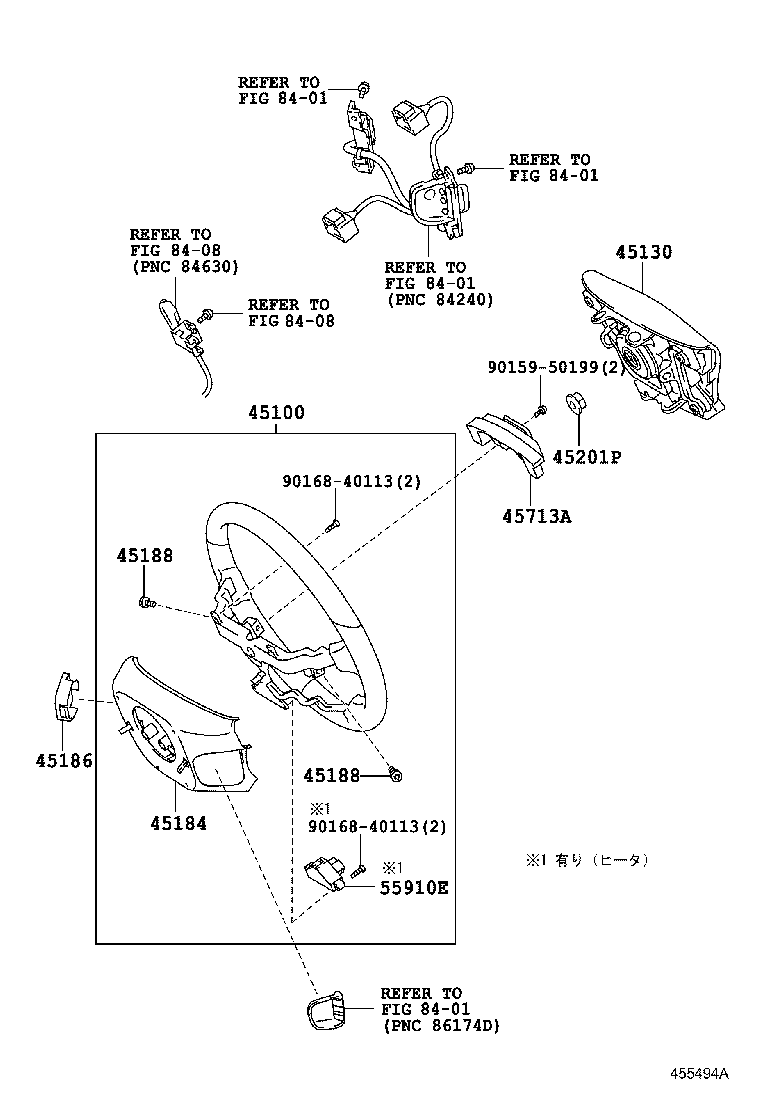

Linked diagrams
8401
8408

UVF45-AEXQH (2007)

(0704- )

(1209-1309)
