VXFA55-AEUQT (2017)
Toyota Lexus Ls500/500h
Production
Dec 2017
-
Aug 2020
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

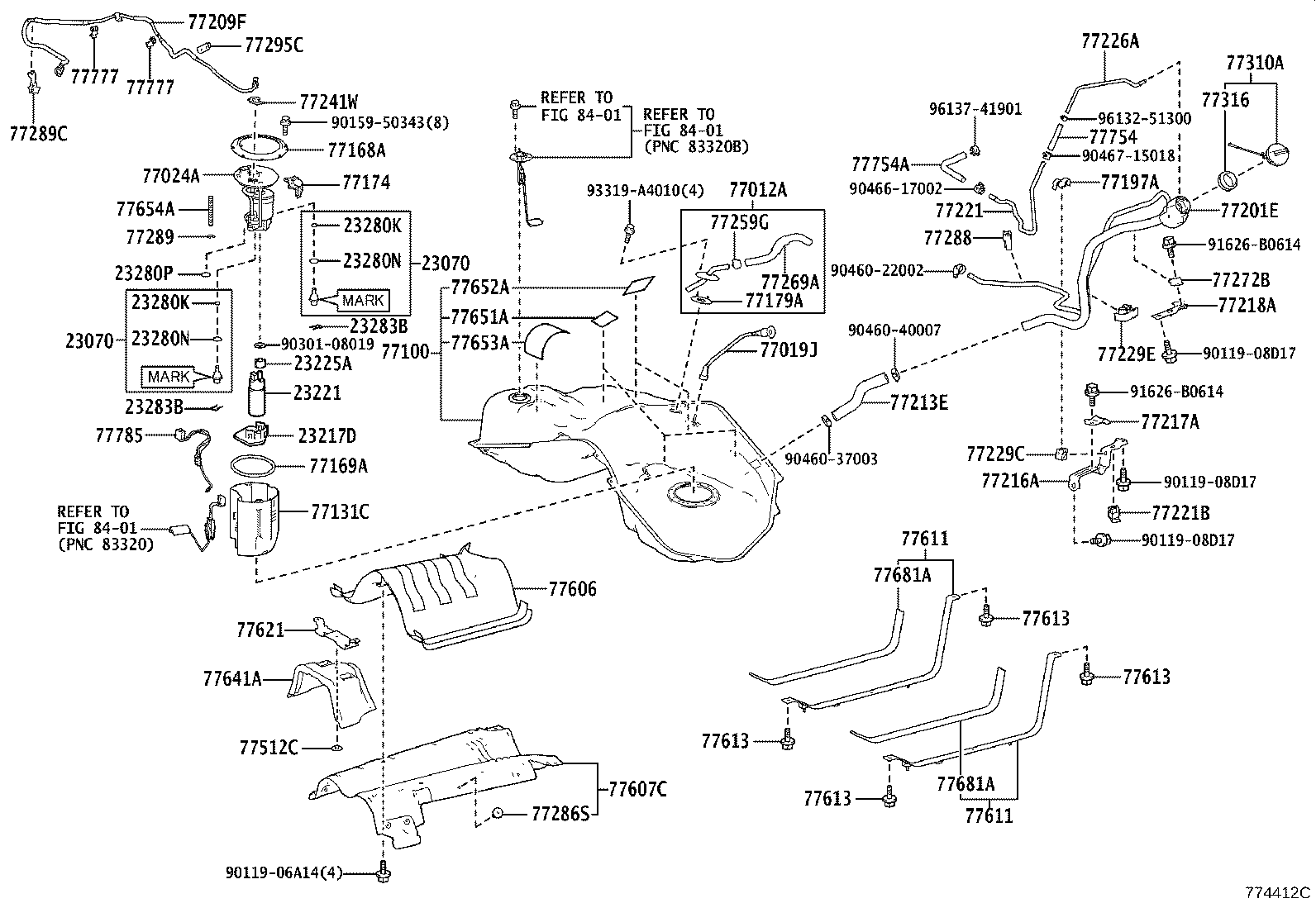

ILLUST NO. 1 OF 4(1712- )VXFA5#
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
V35AFTS..VXFA5# ﾏｰｸ 23070−31030 |
1 | ||
| 23070-36010 |
V35AFTS..VXFA5# ﾏｰｸ 23070−36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
V35AFTS..VXFA5# ﾏｰｸ 23070−31030 |
1 | ||
| 23070-36010 |
V35AFTS..VXFA5# ﾏｰｸ 23070−36010 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
V35AFTS..VXFA5# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
V35AFTS..VXFA5# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
V35AFTS..VXFA5# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
V35AFTS..VXFA5# |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
V35AFTS..VXFA5# |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
V35AFTS..VXFA5# |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
V35AFTS..VXFA5# |
2 | ||
| 23280P - RING, O(FOR FUEL PRESSURE REGULATOR), NO.3 | ||||
| 90301-11025 |
V35AFTS..VXFA5# |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS..VXFA5# |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS..VXFA5# |
2 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-11040 |
VXFA5# |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-50030 |
VXFA5# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-11020 |
VXFA5# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-11110 |
VXFA5# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-11010 |
VXFA5# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
VXFA5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
VXFA5# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48040 |
VXFA5# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
VXFA5# |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-52010 |
VXFA5# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-50220 |
VXFA5# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-50050 |
VXFA5# |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-11070 |
VXFA5# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-50070 |
VXFA5# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-50110 |
VXFA5# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-50010 |
VXFA5# |
1 | ||
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77227-50030 |
VXFA5# |
1 | ||
| 77221B - CLAMP, BREATHR TUBE | ||||
| 77229-11110 |
VXFA5# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-50070 |
VXFA5# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-11080 |
VXFA5# |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-11120 |
VXFA5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
VXFA5# |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
VXFA5# |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-11010 |
VXFA5# |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-50020 |
VXFA5# |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
VXFA5# |
4 | ||
| 77288 - CLAMP, BREATHER HOSE | ||||
| 77229-50080 |
VXFA5# |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
VXFA5# |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-11040 |
VXFA5# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35260 |
GVF5#,VXFA5# |
1 | ||
| 77295-11010 |
VXFA5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
VXFA5# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
VXFA5# |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
VXFA5# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-11020 |
VXFA5# |
1 | ||
| 77607C - PROTECTOR SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77607-11010 |
VXFA5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11040 |
VXFA5# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11040 |
VXFA5# |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
VXFA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
VXFA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
VXFA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
VXFA5# |
4 | ||
| 77621 - BRACKET, FUEL TANK PROTECTOR | ||||
| 77621-50040 |
VXFA5# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-50040 |
VXFA5# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
VXFA5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-36130 |
VXFA5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
VXFA5# |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-22090 |
VXFA5# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
VXFA5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
VXFA5# |
2 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-11050 |
VXFA5# 長さ=80 |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-11060 |
VXFA5# |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
VXFA5# |
2 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
VXFA5# |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-30050 |
VXFA5# |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-08D17 | ||||
| 90159-50343 | ||||
| 90301-08019 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90460-40007 | ||||
| 90466-17002 | ||||
| 90467-15018 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||
