VXFA55-AEUQT (2017)
Toyota Lexus Ls500/500h

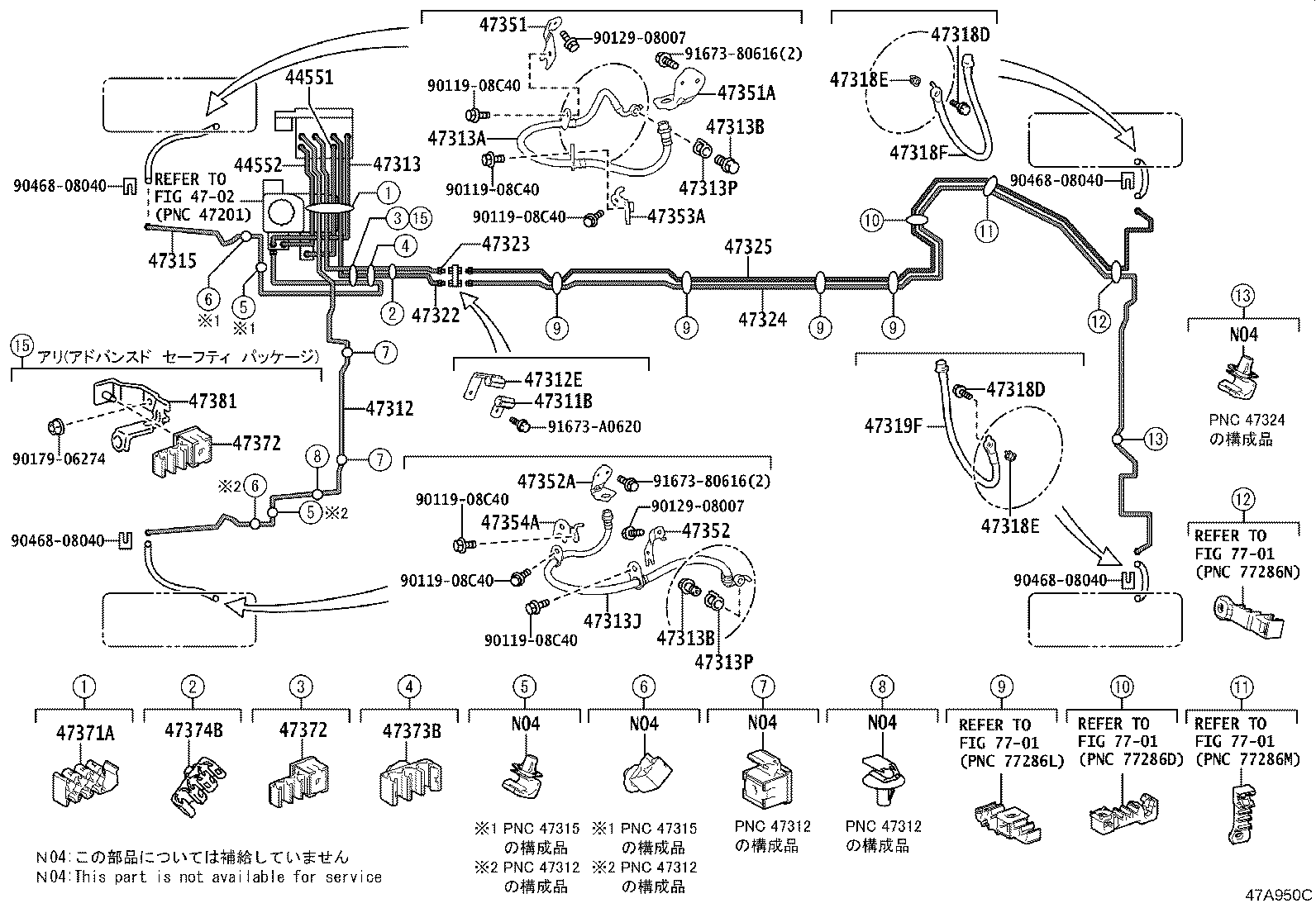

ILLUST NO. 1 OF 2(1710-2010)GVF55 ; (1710- )VXFA55
ﾅｼ(ﾊﾞｷｭｰﾑﾌﾞﾚｰｷﾌﾞｰｽﾀ),FIG47-02ｻﾝｼｮｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-50130 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-50080 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10292 |
VXFA5# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50360 |
VXFA55 |
1 | ||
| 47312-50380 |
VXFA55 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10297 |
VXFA5# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50280 |
VXFA55 |
1 | ||
| 47313-50290 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H75 |
VXFA55 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
VXFA5# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
VXFA5# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H76 |
VXFA55 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
VXFA5# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
VXFA5# |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-50040 |
VXFA55 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
VXFA5# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
VXFA5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
VXFA5# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
VXFA5# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H68 |
VXFA5# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H68 |
VXFA5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50330 |
VXFA55 |
1 | ||
| 47322-50350 |
VXFA55 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-50190 |
VXFA55 |
1 | ||
| 47323-50210 |
VXFA55 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50200 |
VXFA5# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50160 |
VXFA5# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-50030 |
VXFA55 |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47351-50040 |
VXFA55 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-50030 |
VXFA55 |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47352-50040 |
VXFA55 |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47351-50050 |
VXFA55 |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47352-50050 |
VXFA55 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-11010 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 90949-01E56 |
VXFA5# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D21 |
VXFA5# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D21 |
VXFA5# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D41 |
VXFA5# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-50220 |
VXFA5# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 77281-11040 |
VXFA5# |
1 | ||
| Common parts | ||||
| 90119-08C40 | ||||
| 90129-08007 | ||||
| 90179-06274 | ||||
| 90468-08040 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

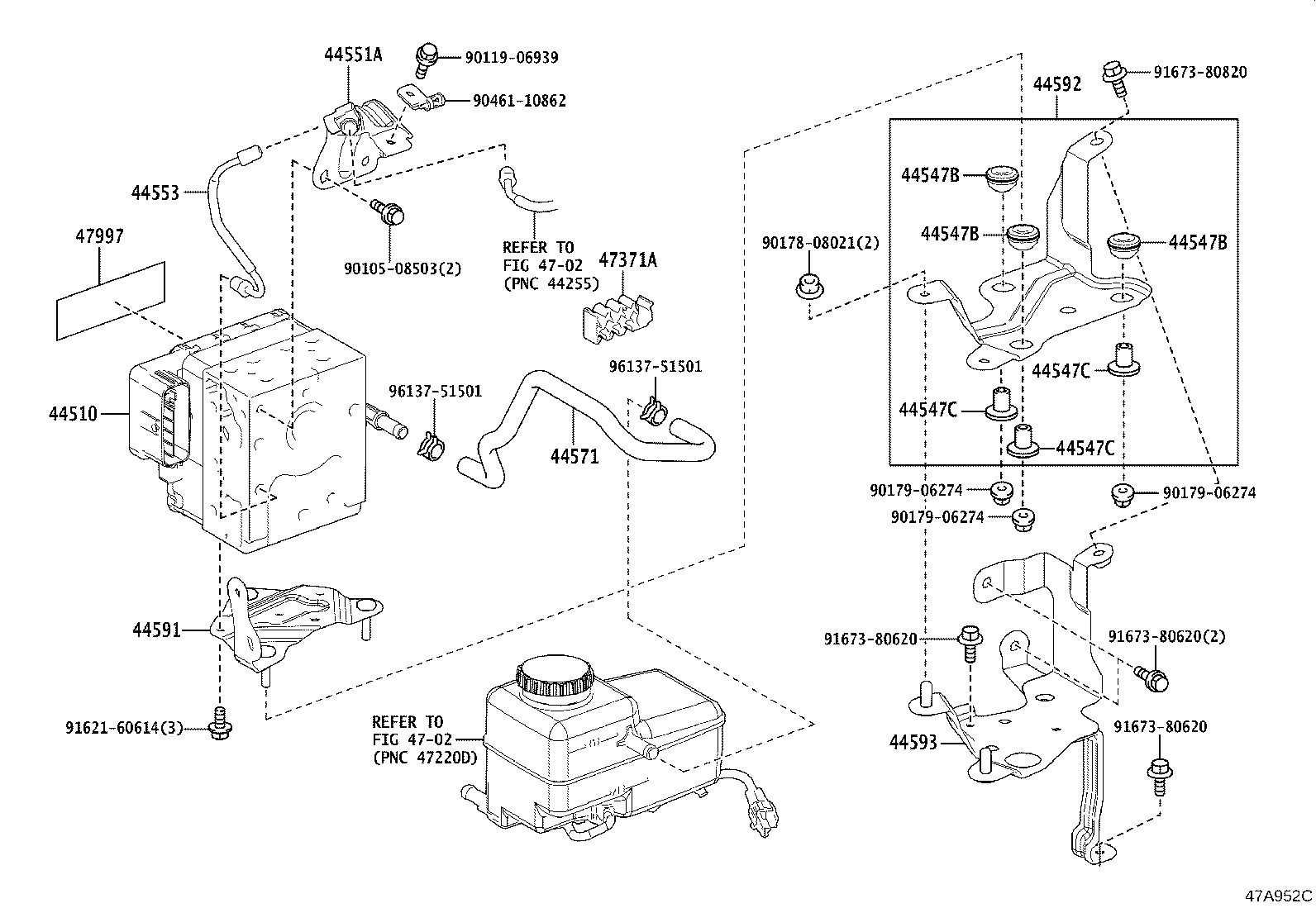

ILLUST NO. 2 OF 2(1710-2010)GVF5# ; (1710- )VXFA5#
ﾅｼ(ﾊﾞｷｭｰﾑﾌﾞﾚｰｷﾌﾞｰｽﾀ),FIG47-02ｻﾝｼｮｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-11020 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44547-60100 |
VXFA5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44547-60100 |
VXFA5# |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44547-60100 |
VXFA5# |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
3 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10313 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-50090 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-50130 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-50100 |
VXFA5# |
1 | ||
| 44591-11020 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-11020 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-11020 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-11010 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| 90949-01E56 |
VXFA5# |
1 | ||
| 47997 - LABEL, BRAKE BOOSTER ACCUMLATOR CAUTION, NO.1 | ||||
| 47997-48010 |
VXFA5# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−Lexus Safety System+A |
1 | ||
| Common parts | ||||
| 90105-08503 | ||||
| 90119-06939 | ||||
| 90178-08021 | ||||
| 90179-06274 | ||||
| 90461-10862 | ||||
| 91621-60614 | ||||
| 91673-80620 | ||||
| 91673-80820 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 4702 | ||||
