VXFA55-AEUQT (2017)
Toyota Lexus Ls500/500h

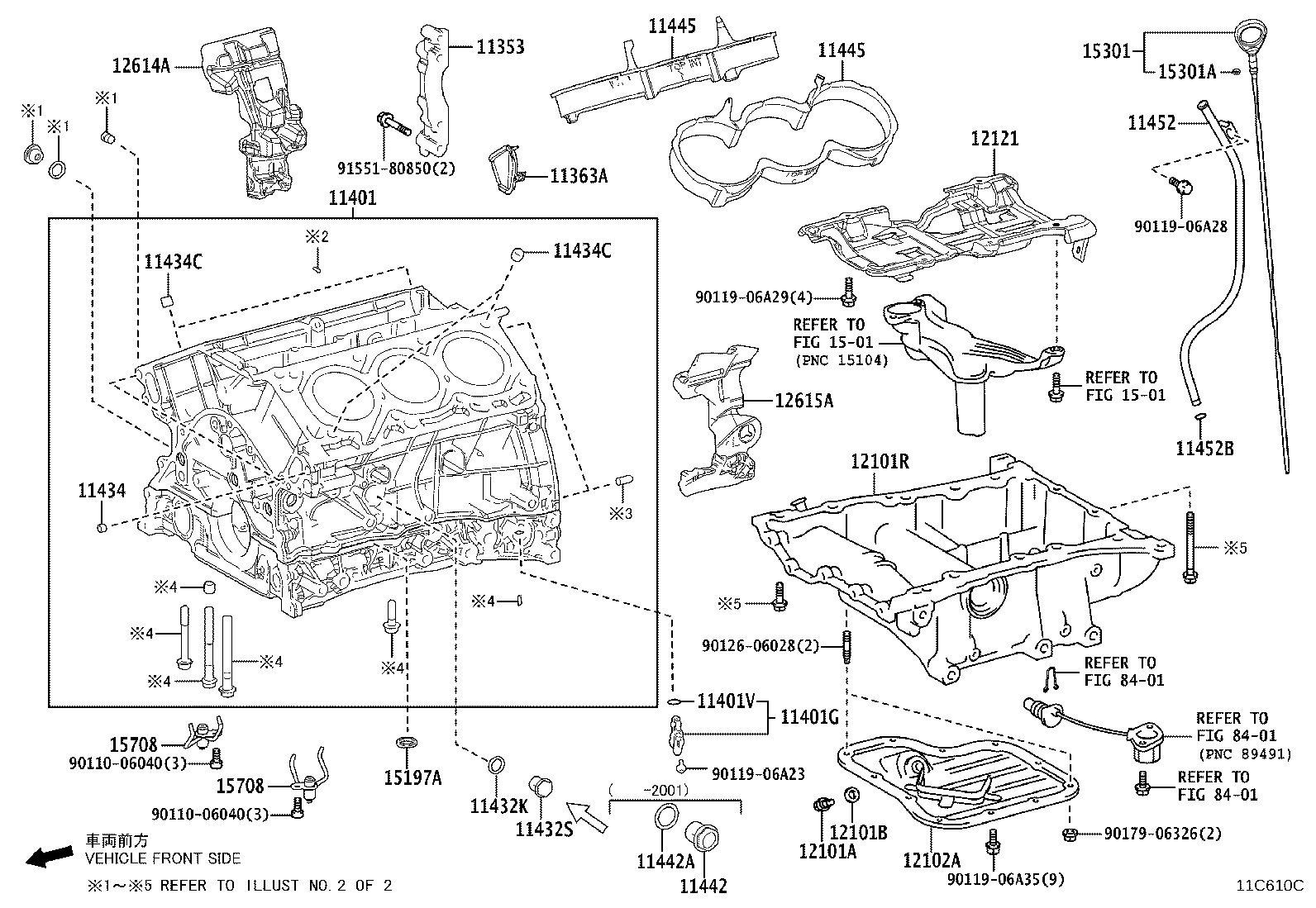

ILLUST NO. 1 OF 2(1712- )V35AFTS..VXFA55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11353 - STAY, FLYWHEEL HOUSING SIDE | ||||
| 11353-70010 |
V35AFTS..VXFA5# |
1 | ||
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-70010 |
V35AFTS..VXFA5# |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-79015 |
V35AFTS..VXFA5# |
1 | ||
| 11410-79025 |
V35AFTS..VXFA5# |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05088 |
V35AFTS..VXFA5# |
1 | ||
| 11401V - O-RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
V35AFTS..VXFA5# |
1 | ||
| 11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG | ||||
| 90430-18026 |
V35AFTS..VXFA5# |
1 | ||
| 11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) | ||||
| 90341-18023 |
V35AFTS..VXFA5# |
1 | ||
| 11434 - PIN, STRAIGHT(FOR TIMING CHAIN COVER) | ||||
| 90253-11021 |
V35AFTS..VXFA5# |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
V35AFTS..VXFA5# 長さ=12,外径=14 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
V35AFTS..VXFA5# 長さ=12,外径=14 |
4 | ||
| 11442 - SPACER, CYLINDER BLOCK INSERT | ||||
| 11442-70020 |
V35AFTS..VXFA5# |
1 | ||
| 11442A - GASKET(FOR CYLINDER BLOCK INSERT SPACER) | ||||
| 16258-70030 |
V35AFTS..VXFA5# |
1 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-70010 |
V35AFTS..VXFA5# |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-70010 |
V35AFTS..VXFA5# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-70100 |
V35AFTS..VXFA55 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
V35AFTS..VXFA5# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
V35AFTS..VXFA5# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
V35AFTS..VXFA5# |
1 | ||
| 12101R - PAN SUB-ASSY, OIL, NO.1 | ||||
| 12101-70110 |
V35AFTS..VXFA55 |
1 | ||
| 12101-70111 |
V35AFTS..VXFA55 |
1 | ||
| 12101-70140 |
V35AFTS..VXFA55 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-70030 |
V35AFTS..VXFA55 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-70090 |
V35AFTS..VXFA5# |
1 | ||
| 12614A - COVER, ENGINE, NO.4 | ||||
| 12614-70010 |
V35AFTS..VXFA5# |
1 | ||
| 12614-70011 |
V35AFTS..VXFA5# |
1 | ||
| 12615A - COVER, ENGINE, NO.5 | ||||
| 12615-70010 |
V35AFTS..VXFA5# |
1 | ||
| 15197A - GASKET, OIL PUMP | ||||
| 15197-70010 |
V35AFTS..VXFA5# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-70140 |
V35AFTS..VXFA55 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
V35AFTS..VXFA5# |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-70010 |
V35AFTS..VXFA5# |
6 | ||
| 15708-70011 |
V35AFTS..VXFA5# |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-70010 |
V35AFTS..VXFA5# |
6 | ||
| 15708-70011 |
V35AFTS..VXFA5# |
6 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90119-06A23 | ||||
| 90119-06A28 | ||||
| 90119-06A29 | ||||
| 90119-06A35 | ||||
| 90126-06028 | ||||
| 90179-06326 | ||||
| 91551-80850 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 8401 | ||||

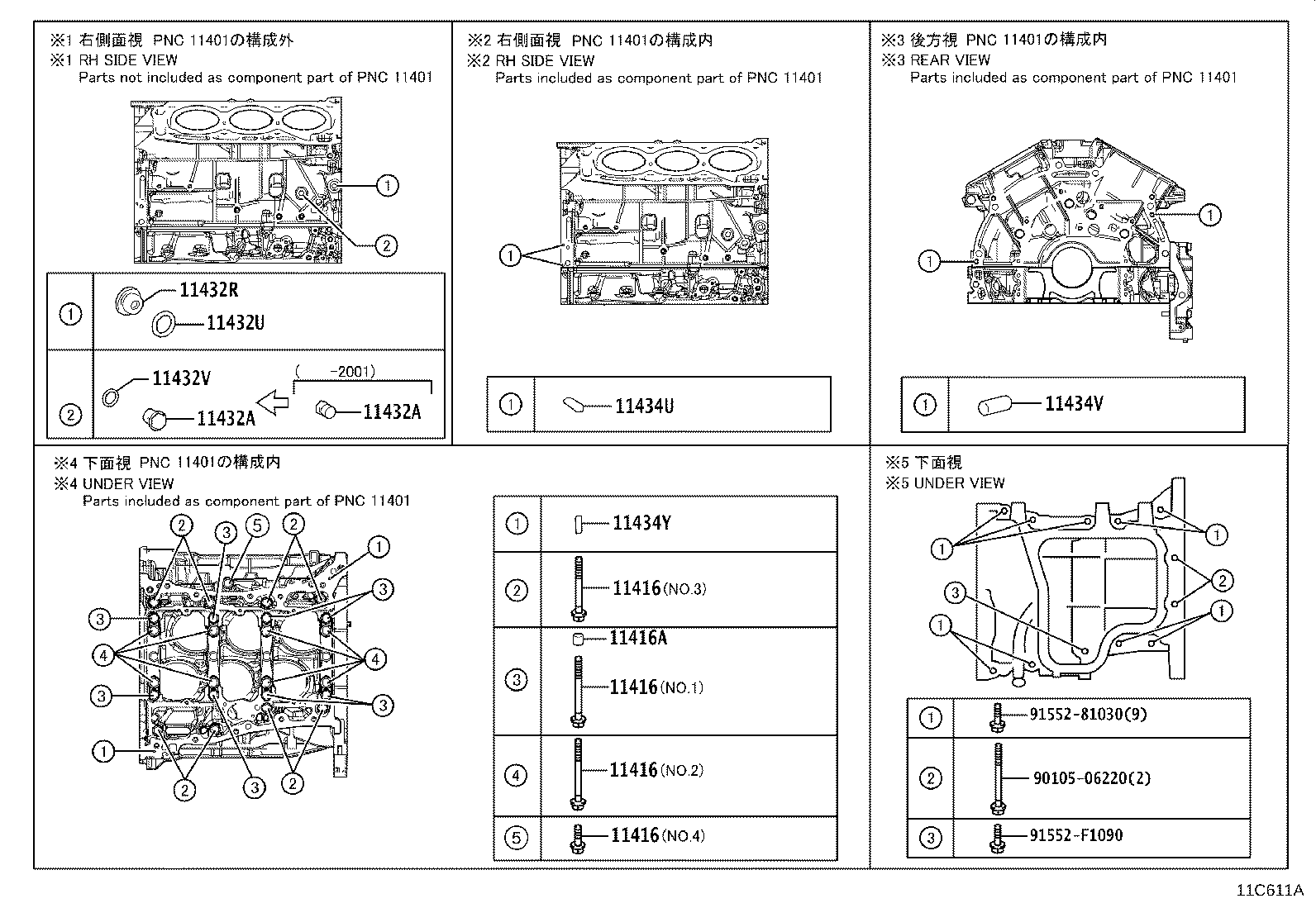

ILLUST NO. 2 OF 2(1712- )V35AFTS..VXFA55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 91552-F1035 |
V35AFTS..VXFA5# NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 90910-02187 |
V35AFTS..VXFA5# NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90910-02200 |
V35AFTS..VXFA5# NO.2:ｲﾗｽﾄ参照 |
8 | ||
| 91552-81080 |
V35AFTS..VXFA5# NO.3:ｲﾗｽﾄ参照 |
8 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 91552-F1035 |
V35AFTS..VXFA5# NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 90910-02187 |
V35AFTS..VXFA5# NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90910-02200 |
V35AFTS..VXFA5# NO.2:ｲﾗｽﾄ参照 |
8 | ||
| 91552-81080 |
V35AFTS..VXFA5# NO.3:ｲﾗｽﾄ参照 |
8 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 91552-F1035 |
V35AFTS..VXFA5# NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 90910-02187 |
V35AFTS..VXFA5# NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90910-02200 |
V35AFTS..VXFA5# NO.2:ｲﾗｽﾄ参照 |
8 | ||
| 91552-81080 |
V35AFTS..VXFA5# NO.3:ｲﾗｽﾄ参照 |
8 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 91552-F1035 |
V35AFTS..VXFA5# NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 90910-02187 |
V35AFTS..VXFA5# NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90910-02200 |
V35AFTS..VXFA5# NO.2:ｲﾗｽﾄ参照 |
8 | ||
| 91552-81080 |
V35AFTS..VXFA5# NO.3:ｲﾗｽﾄ参照 |
8 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-14003 |
V35AFTS..VXFA5# |
8 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-12012 |
V35AFTS..VXFA5# |
1 | ||
| 90345-51006 |
V35AFTS..VXFA5# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-12012 |
V35AFTS..VXFA5# |
1 | ||
| 90345-51006 |
V35AFTS..VXFA5# |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| 90341-18023 |
V35AFTS..VXFA5# |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-18026 |
V35AFTS..VXFA5# |
1 | ||
| 11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK) | ||||
| 90430-12031 |
V35AFTS..VXFA5# |
1 | ||
| 11434U - PIN, STRAIGHT(FOR FLYWHEEL HOUSING SIDE STAY SET) | ||||
| 90250-04097 |
V35AFTS..VXFA5# |
2 | ||
| 11434V - PIN, STRAIGHT(FOR TRANSMISSION SET) | ||||
| 90250-10113 |
V35AFTS..VXFA5# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
V35AFTS..VXFA5# |
2 | ||
| Common parts | ||||
| 90105-06220 | ||||
| 91552-81030 | ||||
| 91552-F1090 | ||||
