VXFA55-AEUQT (2020)

Toyota Lexus Ls500/500h

Production Oct 2020 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2010- )

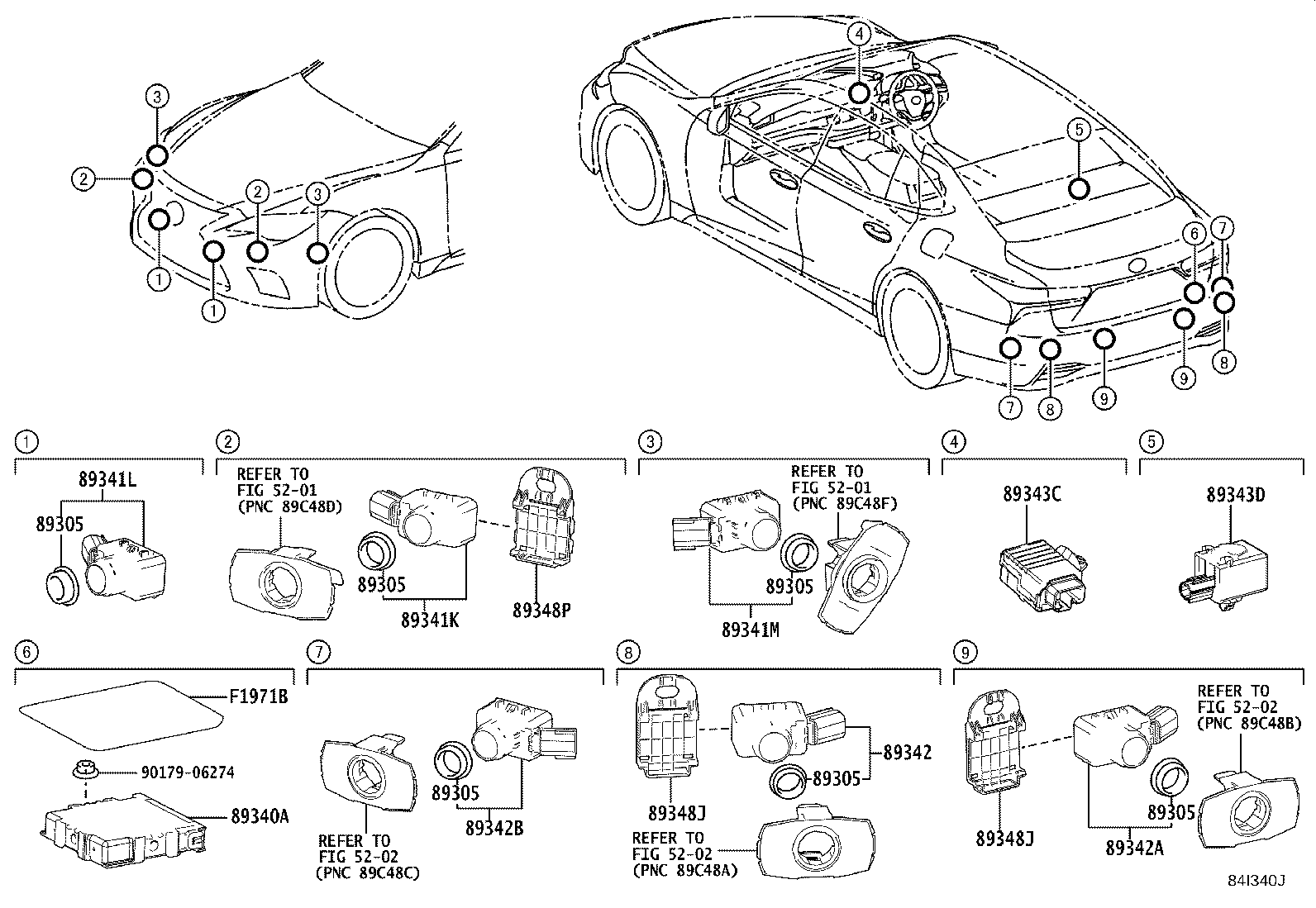

Click highlighted areas on diagram

ｱﾘ(ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｰｸ)

diagram 5201 5201 5202 5202 5202 89305 89305 89305 89305 89305 89305 89340A 89341K 89341L 89341M 89342 89342A 89342B 89343C 89343D 89348J 89348J 89348P 9017906274 F1971B
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-52010

GVF5#,VXFA5#

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-50130

VXFA5#

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-K0060D7

GVF5#,VXFA5#

SONIC AGATE,3U3

 2
89341-K006020

GVF5#,VXFA5#

GRAPHITE BLACK GF.,223

 2
89341-K0060A5

GVF5#,VXFA5#

“F SPORT”*(F),WHITE NOVA GF.,083

 2
89341-K0060A6

GVF5#,VXFA5#

SONIC QUARTZ,085

 2
89341-K0060C9

GVF5#,VXFA5#

BLACK,212

 2
89341-K0060P4

GVF5#,VXFA5#

SONIC IRIDIUM,1L2

 2
89341-K0060P2

GVF5#,VXFA5#

SONIC TITANIUM,1J7

 2
89341-K0060P5

GVF5#,VXFA5#

I SILVER,1L3

 2
89341-K0060J8

GVF5#,VXFA5#

DEEP BLUE MC.,8X5

 2
89341-K0060P3

GVF5#,VXFA5#

MANGANESE LUSTER,1K2

 2
89341-K0060D6

GVF5#,VXFA5#

RED MC.CS.,3R1

 2
89341-K0060J7

GVF5#,VXFA5#

“F SPORT”*(F),HEAT BLUE CONTRAST LAYERI,8X1

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-50080C0

GVF5#,VXFA5#

DUMMY-MAT BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-K0060A5

GVF5#,VXFA5#

“F SPORT”*(F),WHITE NOVA GF.,083

 2
89341-K006020

GVF5#,VXFA5#

GRAPHITE BLACK GF.,223

 2
89341-K0060A6

GVF5#,VXFA5#

SONIC QUARTZ,085

 2
89341-K0060C9

GVF5#,VXFA5#

BLACK,212

 2
89341-K0060D7

GVF5#,VXFA5#

SONIC AGATE,3U3

 2
89341-K0060P3

GVF5#,VXFA5#

MANGANESE LUSTER,1K2

 2
89341-K0060D6

GVF5#,VXFA5#

RED MC.CS.,3R1

 2
89341-K0060J8

GVF5#,VXFA5#

DEEP BLUE MC.,8X5

 2
89341-K0060P4

GVF5#,VXFA5#

SONIC IRIDIUM,1L2

 2
89341-K0060J7

GVF5#,VXFA5#

“F SPORT”*(F),HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-K0060P2

GVF5#,VXFA5#

SONIC TITANIUM,1J7

 2
89341-K0060P5

GVF5#,VXFA5#

I SILVER,1L3

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-K006020

GVF5#,VXFA5#

GRAPHITE BLACK GF.,223

 2
89341-K0060A5

GVF5#,VXFA5#

“F SPORT”*(F),WHITE NOVA GF.,083

 2
89341-K0060J8

GVF5#,VXFA5#

DEEP BLUE MC.,8X5

 2
89341-K0060D7

GVF5#,VXFA5#

SONIC AGATE,3U3

 2
89341-K0060A6

GVF5#,VXFA5#

SONIC QUARTZ,085

 2
89341-K0060D6

GVF5#,VXFA5#

RED MC.CS.,3R1

 2
89341-K0060P3

GVF5#,VXFA5#

MANGANESE LUSTER,1K2

 2
89341-K0060P4

GVF5#,VXFA5#

SONIC IRIDIUM,1L2

 2
89341-K0060P5

GVF5#,VXFA5#

I SILVER,1L3

 2
89341-K0060J7

GVF5#,VXFA5#

“F SPORT”*(F),HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-K0060P2

GVF5#,VXFA5#

SONIC TITANIUM,1J7

 2
89341-K0060C9

GVF5#,VXFA5#

BLACK,212

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

GVF5#,VXFA5#

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89747-30040

GVF5#,VXFA5#

 1
89348J - CLIP, ULTRASONIC SENSOR
89348-58130

VXFA5#

 2
89348J - CLIP, ULTRASONIC SENSOR
89348-58130

VXFA5#

 2
Common parts
90179-06274
