GVF55-AEVQH (2017)
Toyota Lexus Ls500/500h
Production
Oct 2017
-
Oct 2020
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1710-1909)

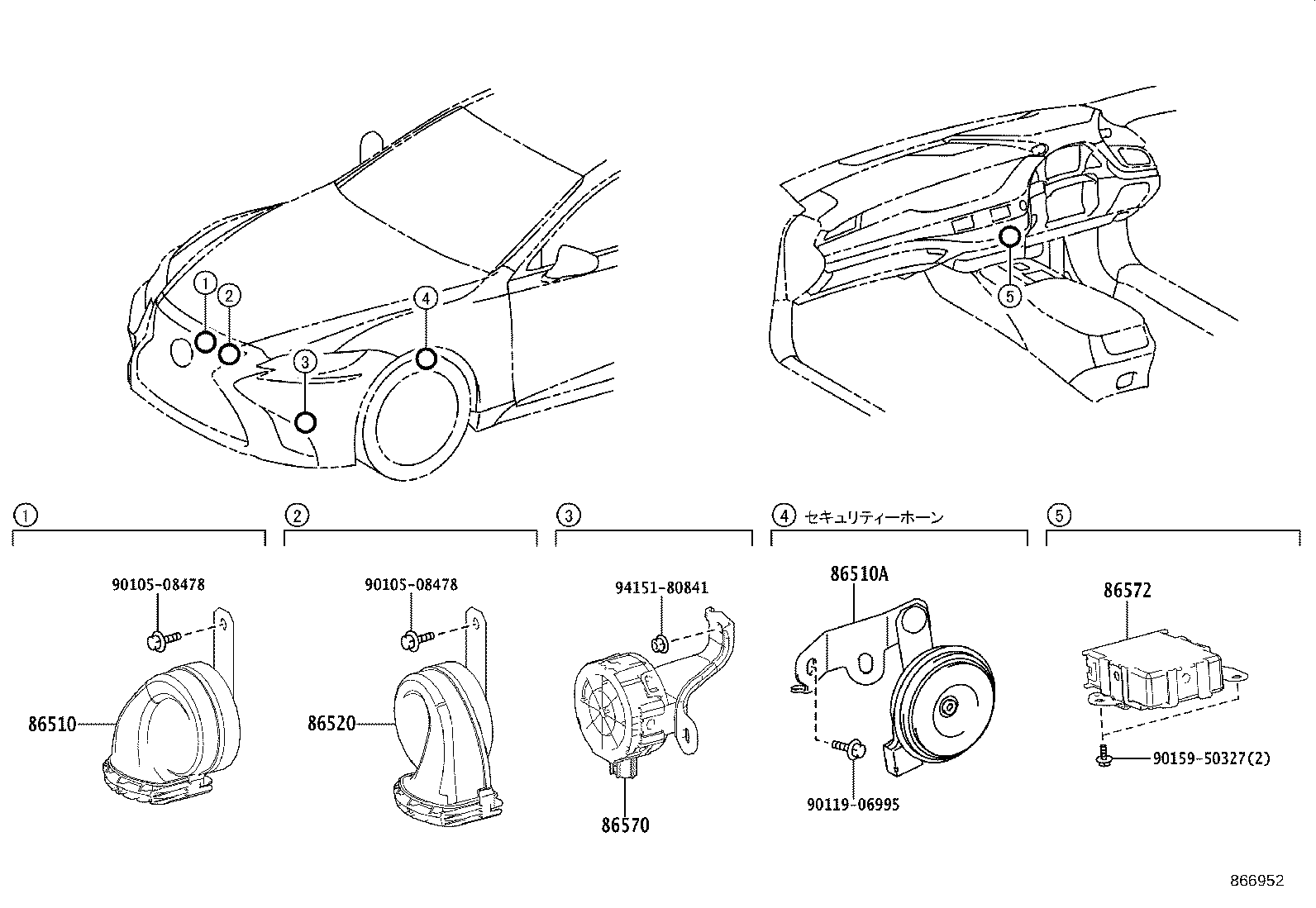

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-30790 |
GVF5# |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-50030 |
GVF5#,VXFA5# |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-30670 |
GVF5# |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-50040 |
GVF5# |
1 | ||
| 86570-50020 |
GVF5# |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-50040 |
GVF5# |
1 | ||
| 86572-50050 |
GVF5# |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06995 | ||||
| 90159-50327 | ||||
| 94151-80841 | ||||
(1909- )

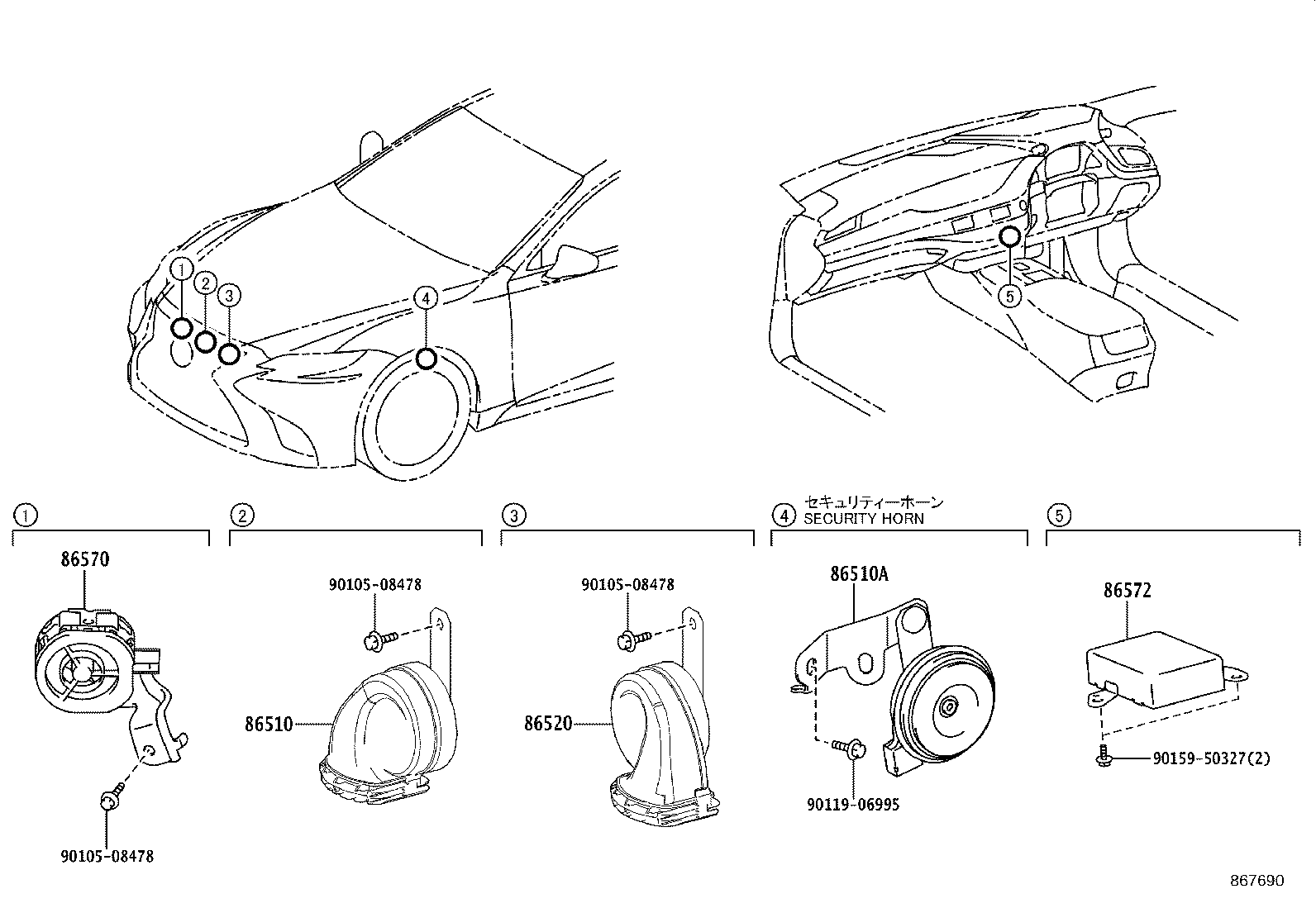

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-30790 |
GVF5# |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-50030 |
GVF5#,VXFA5# |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-30670 |
GVF5# |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-50040 |
GVF5# |
1 | ||
| 86570-50020 |
GVF5# |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-50040 |
GVF5# |
1 | ||
| 86572-50050 |
GVF5# |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90119-06995 | ||||
| 90159-50327 | ||||
