GVF55-AEVQH (2017)
Toyota Lexus Ls500/500h

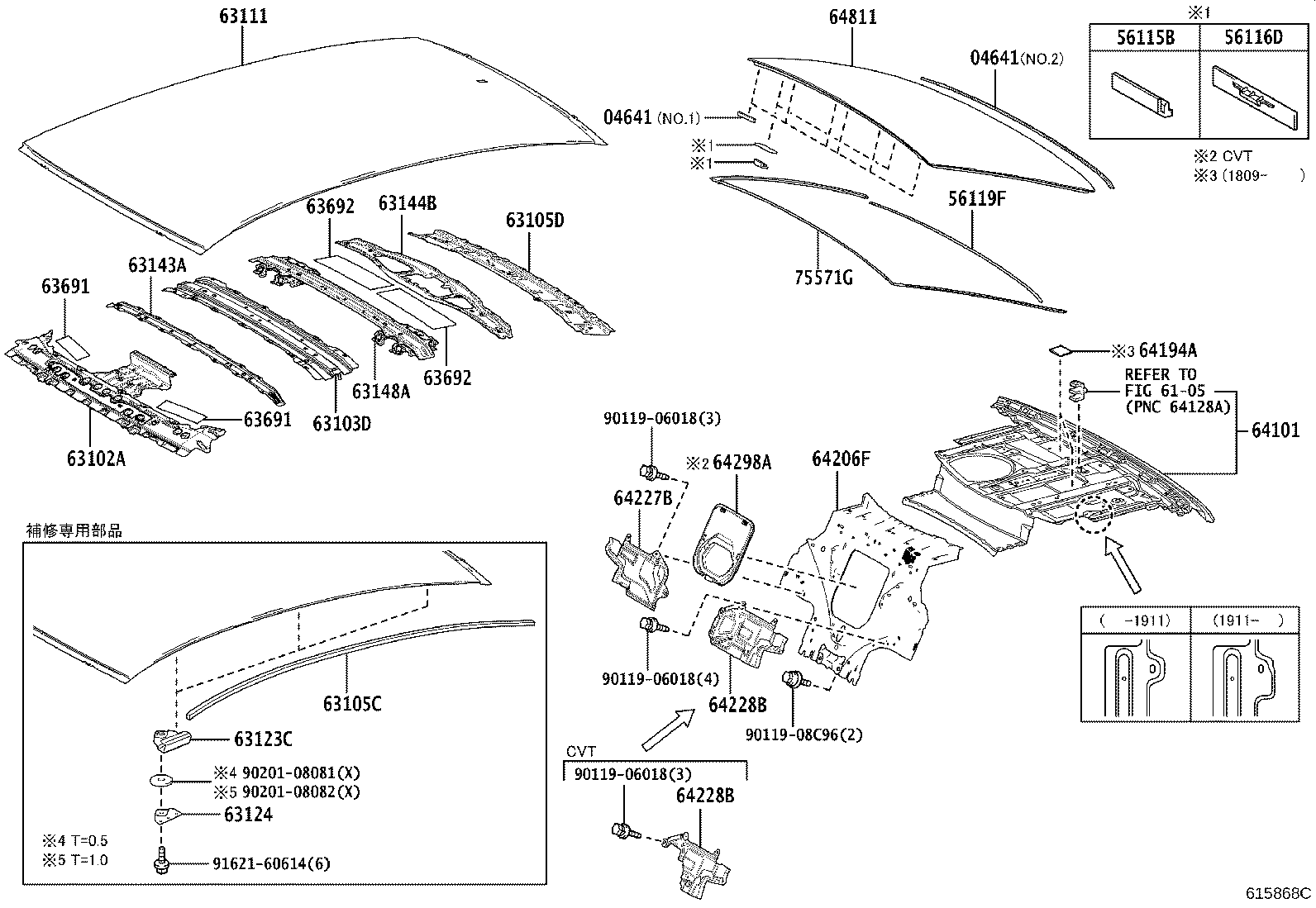

ILLUST NO. 1 OF 2(1710- )
ﾙｰﾌﾊﾟﾈﾙ(ﾉｰﾏﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56118-50070 |
GVF5# NO.2 |
1 | ||
| 56117-24070 |
GVF5# NO.1 |
6 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56118-50070 |
GVF5# NO.2 |
1 | ||
| 56117-24070 |
GVF5# NO.1 |
6 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
GVF5# |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
GVF5# |
1 | ||
| 56119F - SEAL, WINDSHIELD GLASS | ||||
| 56119-50100 |
GVF5# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50908 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102-50909 |
GVF5# |
1 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63141-50040 |
GVF5# |
1 | ||
| 63105C - MOULDING SUB-ASSY, ROOF DRIP | ||||
| 63215-53010 |
GVF5# |
2 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50050 |
GVF5# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-50190 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-50200 |
GVF5# |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-50030 |
GVF5# ﾘﾔ |
2 | ||
| 63123-50010 |
GVF5# ﾌﾛﾝﾄ |
2 | ||
| 63123-50020 |
GVF5# ｾﾝﾀ |
2 | ||
| 63124 - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63124-50010 |
GVF5# |
6 | ||
| 63124-50010 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-50050 |
GVF5# |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-50040 |
GVF5# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63104-50040 |
GVF5# |
1 | ||
| 63148-50060 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63691 - PAD, ROOF SILENCER, NO.21 | ||||
| 63691-50110 |
GVF5# |
2 | ||
| 63691-50110 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63691 - PAD, ROOF SILENCER, NO.21 | ||||
| 63691-50110 |
GVF5# |
2 | ||
| 63691-50110 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50080 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63692-50080 |
GVF5# |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50080 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63692-50080 |
GVF5# |
2 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-50260 |
GVF5#,VXFA5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
1 | ||
| 64101-50270 |
GVF5#,VXFA5# |
1 | ||
| 64101-50260 |
GVF5#,VXFA5# ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り(ﾘﾔｸｰﾗ) |
1 | ||
| 64101-50271 |
GVF5# |
1 | ||
| 64101-50261 |
GVF5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
1 | ||
| 64194A - PAD, BACK PANEL SILENCER, UPPER | ||||
| 64194-50020 |
GVF5# |
2 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-50100 |
GVF5# |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-50070 |
GVF5# |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-50080 |
GVF5# |
1 | ||
| 64228-50081 |
GVF5# |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-50080 |
GVF5# |
1 | ||
| 64228-50081 |
GVF5# |
1 | ||
| 64298A - PANEL, ROOM PARTITION CENTER | ||||
| 64298-50010 |
GVF5# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-50903 |
GVF5# ﾘﾔｸｫｰﾀｶﾞﾗｽ−有り(強化ｶﾞﾗｽ) |
1 | ||
| 64801-50903 |
GVF5# ﾘﾔｸｫｰﾀｶﾞﾗｽ−有り(遮音&遮熱) |
1 | ||
| 64801-50902 |
GVF5# |
1 | ||
| 75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1 | ||||
| 75571-50080 |
GVF5# |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 90119-08C96 | ||||
| 90201-08081 | ||||
| 90201-08082 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 6105 | ||||

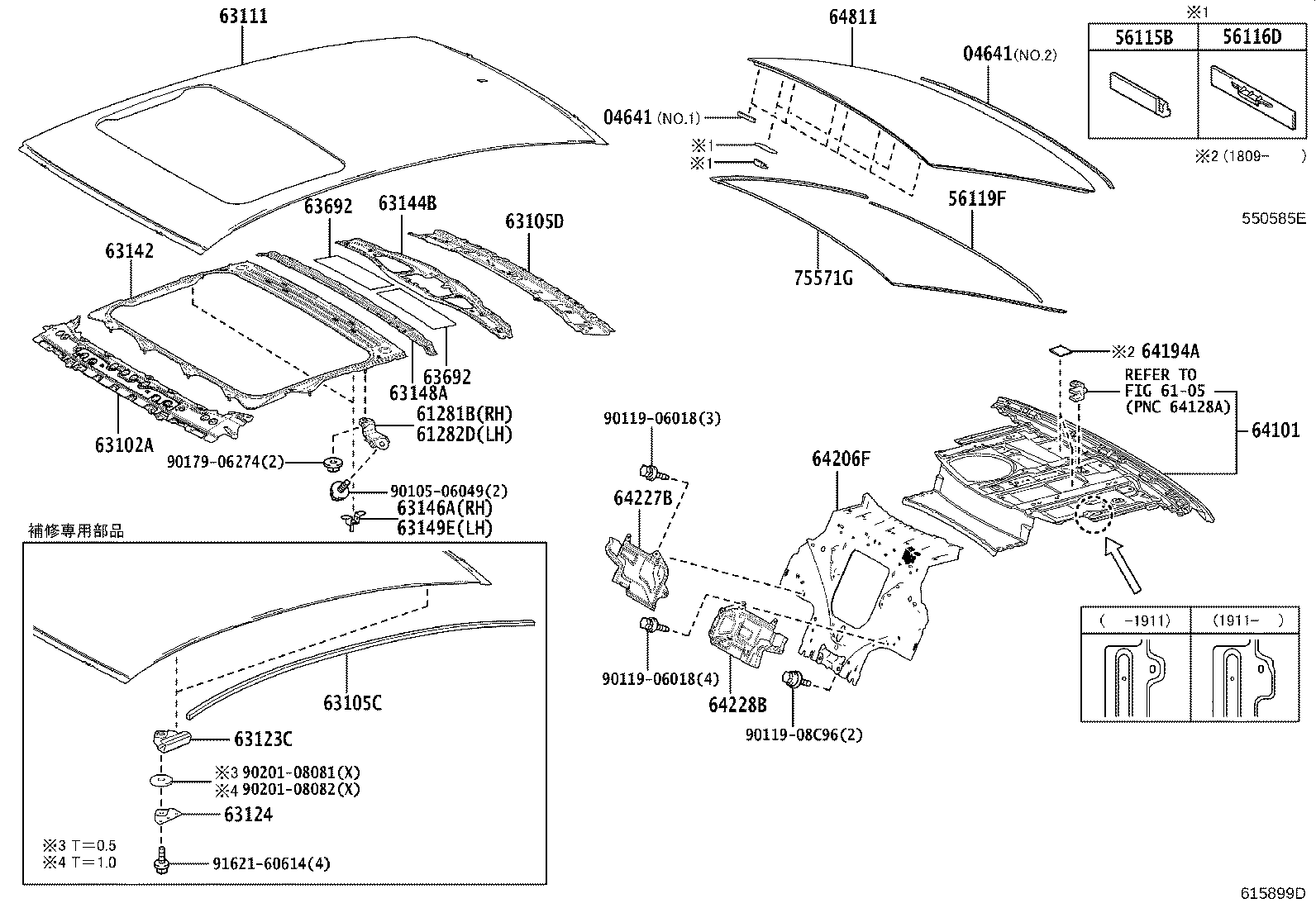

ILLUST NO. 2 OF 2(1710- )
ｽﾗｲﾃﾞｨﾝｸﾞﾙｰﾌ(ﾑｰﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-50270 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-50090 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203-50090 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203-50090 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203-50090 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-50070 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209-50070 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209-50070 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63209-50070 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-50110 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-50120 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217-50120 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217-50120 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217-50120 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-50100 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-50110 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218-50110 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218-50110 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218-50110 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 90469-12017 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,ﾌﾛﾝﾄ |
6 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 90469-12017 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,ﾌﾛﾝﾄ |
6 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90469-12017 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,ﾘﾔ |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 90469-12017 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,ﾘﾔ |
6 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-50070 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63247-50060 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-50040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,右側 |
1 | ||
| 63220-50050 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,左側 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-50040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,右側 |
1 | ||
| 63220-50050 |
GVF5# ﾑｰﾝﾙｰﾌ−有り,左側 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-50070 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-50130 |
GVF5#,VXFA5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50130 |
GVF5#,VXFA5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50131 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50130 |
GVF5#,VXFA5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50130 |
GVF5#,VXFA5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50131 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50131 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260-50131 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63295D - PAD, SLIDING ROOF HOUSING | ||||
| 63295-50010 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63295-50010 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63295-50010 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63295-50010 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63296D - PAD, SLIDING ROOF HOUSING, NO.2 | ||||
| 63296-50010 |
GVF5# “F SPORT”*(F)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63296-50010 |
GVF5# “EXECUTIVE”*(E)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63296-50010 |
GVF5# “version L”*(L)&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63296-50010 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 6402 | ||||
ILLUST NO. 1 OF 2(1710- )
ﾙｰﾌﾊﾟﾈﾙ(ﾑｰﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56118-50070 |
GVF5# NO.2 |
1 | ||
| 56117-24070 |
GVF5# NO.1 |
6 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 56118-50070 |
GVF5# NO.2 |
1 | ||
| 56117-24070 |
GVF5# NO.1 |
6 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
GVF5# |
1 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
GVF5# |
1 | ||
| 56119F - SEAL, WINDSHIELD GLASS | ||||
| 56119-50100 |
GVF5# |
1 | ||
| 61281B - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-50070 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 61282D - BRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2 | ||||
| 61281-50070 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-50908 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63102-50909 |
GVF5# |
1 | ||
| 63105C - MOULDING SUB-ASSY, ROOF DRIP | ||||
| 63215-53010 |
GVF5# |
2 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-50050 |
GVF5# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-50190 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111-50200 |
GVF5# |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-50030 |
GVF5# ﾘﾔ |
2 | ||
| 63123-50010 |
GVF5# ﾌﾛﾝﾄ |
2 | ||
| 63123-50020 |
GVF5# ｾﾝﾀ |
2 | ||
| 63124 - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63124-50010 |
GVF5# |
6 | ||
| 63124-50010 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
4 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-50050 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-50040 |
GVF5# |
1 | ||
| 63146A - BRACKET, ROOF PANEL REINFORCEMENT, NO.1 | ||||
| 63146-50040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63104-50040 |
GVF5# |
1 | ||
| 63148-50060 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-50040 |
GVF5# ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50080 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63692-50080 |
GVF5# |
2 | ||
| 63692 - PAD, ROOF SILENCER, NO.22 | ||||
| 63692-50080 |
GVF5# ﾑｰﾝﾙｰﾌ−有り(ﾊﾟﾉﾗﾏﾙｰﾌ) |
2 | ||
| 63692-50080 |
GVF5# |
2 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-50260 |
GVF5#,VXFA5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
1 | ||
| 64101-50270 |
GVF5#,VXFA5# |
1 | ||
| 64101-50260 |
GVF5#,VXFA5# ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り(ﾘﾔｸｰﾗ) |
1 | ||
| 64101-50271 |
GVF5# |
1 | ||
| 64101-50261 |
GVF5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
1 | ||
| 64194A - PAD, BACK PANEL SILENCER, UPPER | ||||
| 64194-50020 |
GVF5# |
2 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-50100 |
GVF5# |
1 | ||
| 64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1 | ||||
| 64227-50070 |
GVF5# |
1 | ||
| 64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2 | ||||
| 64228-50080 |
GVF5# |
1 | ||
| 64228-50081 |
GVF5# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-50903 |
GVF5# ﾘﾔｸｫｰﾀｶﾞﾗｽ−有り(強化ｶﾞﾗｽ) |
1 | ||
| 64801-50903 |
GVF5# ﾘﾔｸｫｰﾀｶﾞﾗｽ−有り(遮音&遮熱) |
1 | ||
| 64801-50902 |
GVF5# |
1 | ||
| 75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1 | ||||
| 75571-50080 |
GVF5# |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90119-06018 | ||||
| 90119-08C96 | ||||
| 90179-06274 | ||||
| 90201-08081 | ||||
| 90201-08082 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 6105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
