GVF55-AEVQH (2017)
Toyota Lexus Ls500/500h
Production
Oct 2017
-
Oct 2020
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

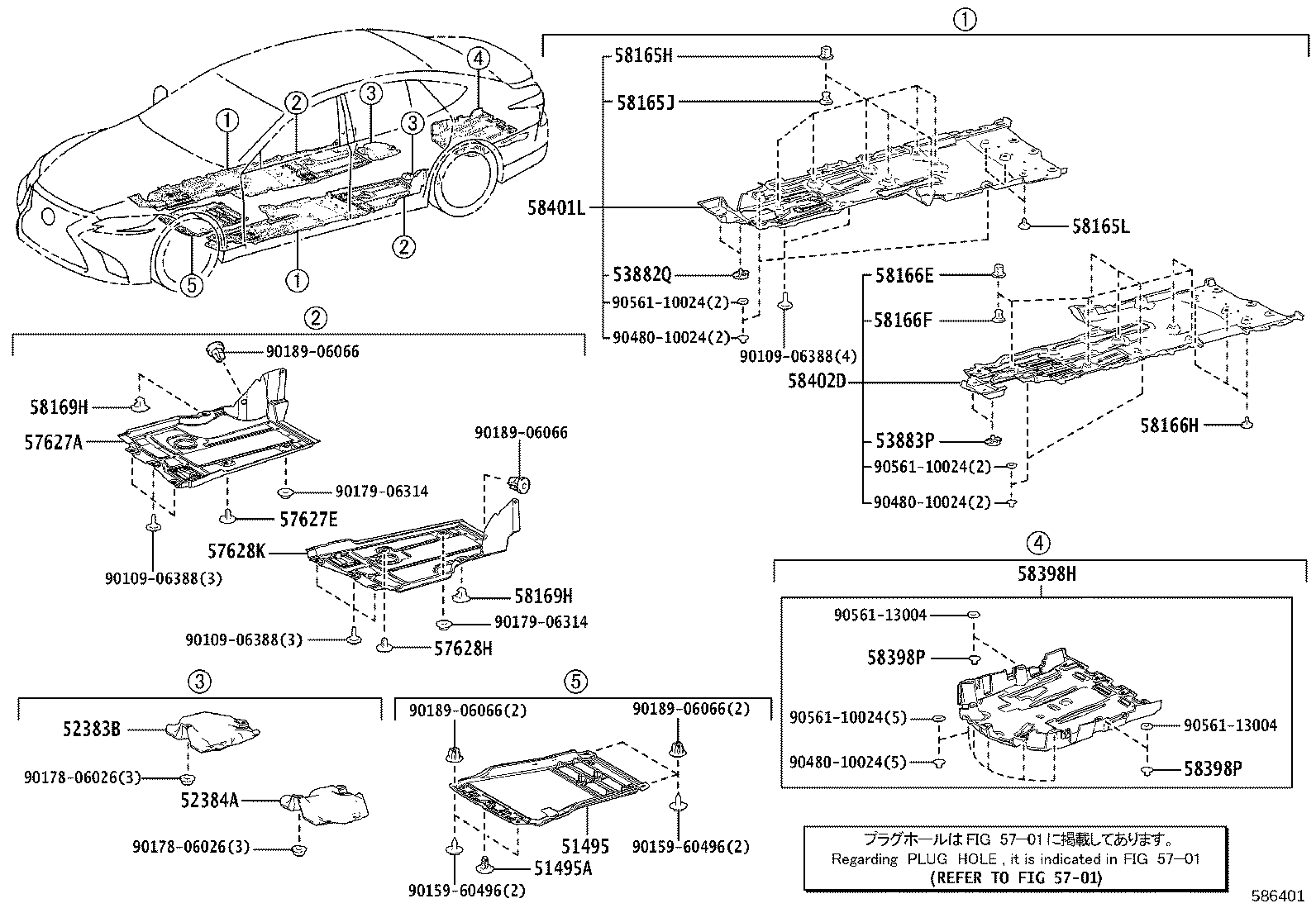

ILLUST NO. 3 OF 3(1710- )GVF55,VXFA55
Click highlighted areas on diagram
ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 51495-50020 |
GVF55 |
1 | ||
| 51495A - CLIP, TRANSMISSION UNDER COVER | ||||
| 90467-07220 |
GVF55 |
1 | ||
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-11010 |
GVF5# |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-11010 |
GVF5# |
1 | ||
| 53882Q - CLIP, NO.1(FOR FRONT FENDER SEAL) | ||||
| 90467-07225 |
GVF5# |
2 | ||
| 53883P - CLIP, NO.1(FOR FRONT FENDER SEAL) | ||||
| 90467-07225 |
GVF5# |
2 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-11010 |
GVF5# |
1 | ||
| 57627E - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-07215 |
GVF5# |
1 | ||
| 57628H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1 | ||||
| 90467-07215 |
GVF5# |
1 | ||
| 57628K - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-11010 |
GVF5# |
1 | ||
| 58165H - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
GVF5# SUPER WHITE 2 |
7 | ||
| 58165J - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
GVF5# BLACK |
7 | ||
| 58165L - CLIP, FRONT FLOOR COVER, NO.3 | ||||
| 90467-07220 |
GVF5# |
3 | ||
| 58166E - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
GVF5# SUPER WHITE 2 |
7 | ||
| 58166F - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
GVF5# BLACK |
7 | ||
| 58166H - CLIP, FRONT FLOOR COVER, NO.3 | ||||
| 90467-07220 |
GVF5# |
3 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-48010 |
GVF5# |
2 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-48010 |
GVF5# |
2 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-50030 |
GVF5# |
1 | ||
| 58398P - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-14053 |
GVF5# |
2 | ||
| 58398P - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-14053 |
GVF5# |
2 | ||
| 58401L - BOARD SUB-ASSY, FLOOR | ||||
| 58401-50010 |
GVF5#,VXFA5# |
1 | ||
| 58401-50011 |
GVF5# |
1 | ||
| 58402D - BOARD SUB-ASSY, FLOOR, NO.2 | ||||
| 58402-50010 |
GVF5#,VXFA5# |
1 | ||
| 58402-50011 |
GVF5# |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60496 | ||||
| 90178-06026 | ||||
| 90179-06314 | ||||
| 90189-06066 | ||||
| 90480-10024 | ||||
| 90561-10024 | ||||
| 90561-13004 | ||||
| Linked diagrams | ||||
| 5701 | ||||

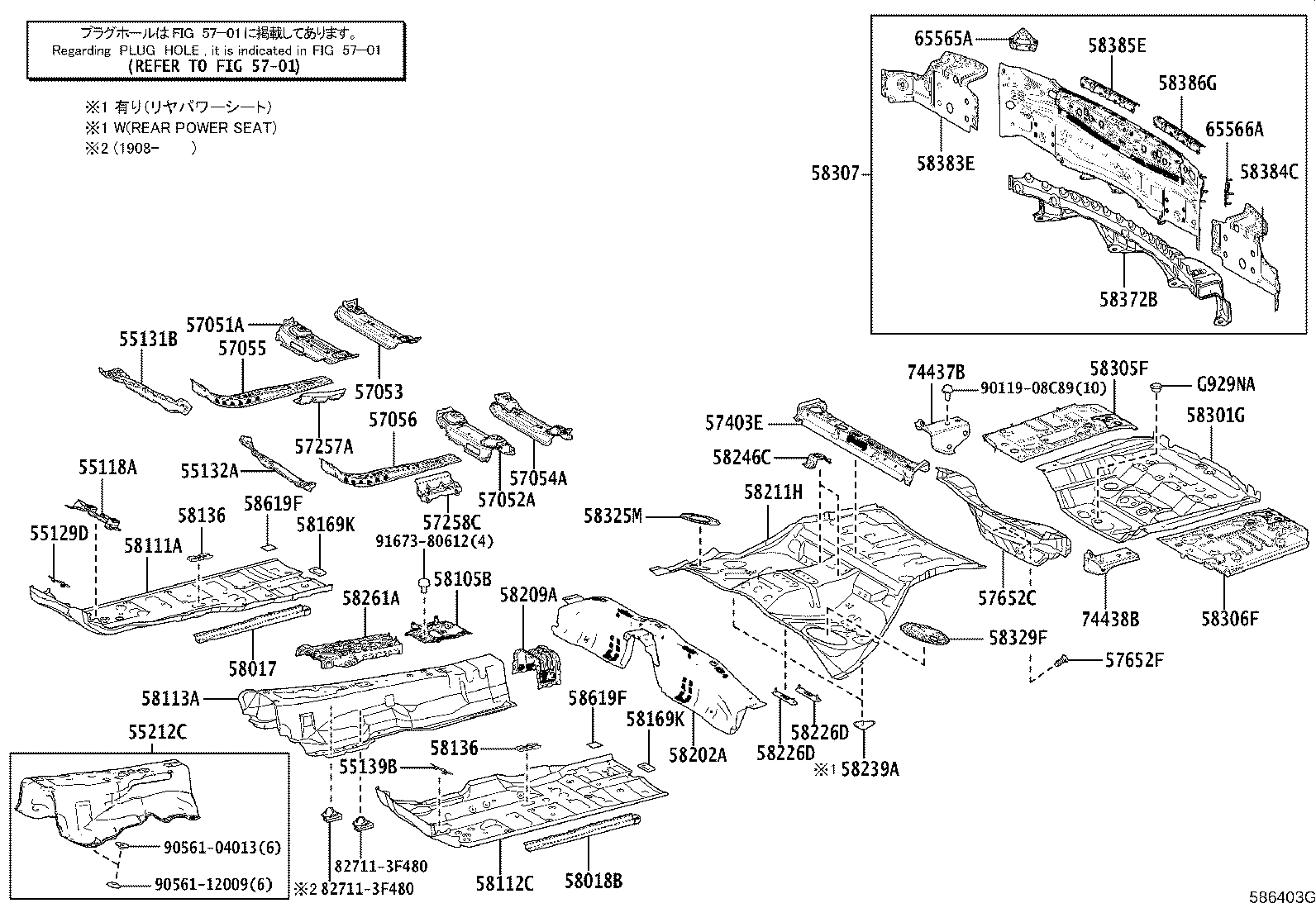

ILLUST NO. 1 OF 3(1710- )GVF55,VXFA55
Click highlighted areas on diagram
ﾌﾛｱﾊﾟﾈﾙ & ﾛﾜｰﾊﾞｯｸﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55118A - EXTENSION, DASH PANEL, RH | ||||
| 55118-11011 |
GVF5# |
1 | ||
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-11010 |
GVF5# |
1 | ||
| 55131B - REINFORCEMENT, TOE BOARD, RH | ||||
| 55131-11010 |
GVF5# |
1 | ||
| 55132A - REINFORCEMENT, TOE BOARD, LH | ||||
| 55132-11010 |
GVF5# |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-11010 |
GVF5# |
1 | ||
| 55212C - SILENCER, FRONT PANEL, LOWER | ||||
| 55212-50080 |
GVF55 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-50030 |
GVF5# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-50050 |
GVF55 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-50040 |
GVF5# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-50050 |
GVF55 |
1 | ||
| 57055 - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.5 | ||||
| 57055-50030 |
GVF5# |
1 | ||
| 57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6 | ||||
| 57056-50030 |
GVF5# |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-50070 |
GVF55 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-50070 |
GVF55 |
1 | ||
| 57403E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3 | ||||
| 57403-11010 |
GVF5#,VXFA5# |
1 | ||
| 57403-11011 |
GVF5# |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50903 |
GVF5#,VXFA5# |
1 | ||
| 57652-50906 |
GVF5# |
1 | ||
| 57652F - BOLT, WELD(FOR REAR FLOOR CROSS MEMBER) | ||||
| 90115-06242 |
GVF5# |
2 | ||
| 58017 - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH | ||||
| 58017-50021 |
GVF5# |
1 | ||
| 58017-50020 |
GVF5#,VXFA5# |
1 | ||
| 58018B - PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH | ||||
| 58017-50021 |
GVF5# |
1 | ||
| 58017-50020 |
GVF5#,VXFA5# |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-50030 |
GVF5# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-50909 |
GVF55 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-50912 |
GVF55 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-50925 |
GVF55 |
1 | ||
| 58113-50922 |
GVF55,VXFA55 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-11010 |
GVF5# |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-11010 |
GVF5# |
2 | ||
| 58169K - PATCH, FRONT FLOOR, REAR | ||||
| 58169-11010 |
GVF5# |
2 | ||
| 58169K - PATCH, FRONT FLOOR, REAR | ||||
| 58169-11010 |
GVF5# |
2 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-50010 |
GVF5# |
1 | ||
| 58202-50022 |
GVF5# “EXECUTIVE”*(E) |
1 | ||
| 58202-50022 |
GVF5# “version L”*(L) |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-50050 |
GVF5# |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-50939 |
GVF5# “EXECUTIVE”*(E) |
1 | ||
| 58211-50939 |
GVF5# “version L”*(L) |
1 | ||
| 58211-50937 |
GVF5# |
1 | ||
| 58211-50941 |
GVF5# “EXECUTIVE”*(E)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り(ﾘﾔｸｰﾗ) |
1 | ||
| 58211-50941 |
GVF5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
1 | ||
| 58226D - PATCH, BRACKET CENTER MOUNTING | ||||
| 58226-50010 |
GVF5# |
2 | ||
| 58226D - PATCH, BRACKET CENTER MOUNTING | ||||
| 58226-50010 |
GVF5# |
2 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50030 |
GVF5#,VXFA5# “EXECUTIVE”*(E) |
2 | ||
| 58239-50030 |
GVF5#,VXFA5# “EXECUTIVE”*(E)&ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り(ﾘﾔｸｰﾗ) |
2 | ||
| 58239-50030 |
GVF5# “EXECUTIVE”*(E)&ｵｰﾃﾞｨｵ−*BD&SD&ﾏｰｸﾚﾋﾞﾝｿﾝ&24ｽﾋﾟｰｶ |
2 | ||
| 58239-50030 |
GVF5# “version L”*(L) |
2 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-50020 |
GVF5# |
2 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-11010 |
GVF5# |
1 | ||
| 58301G - PAN SUB-ASSY, REAR FLOOR | ||||
| 58301-50906 |
GVF5# |
1 | ||
| 58301-50904 |
GVF5#,VXFA5# |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-50030 |
GVF5# |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-50040 |
GVF5# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58302-50010 |
GVF5# |
1 | ||
| 58325M - COVER, REAR FLOOR SERVICE HOLE, NO.1 | ||||
| 58325-50040 |
GVF5# |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-50030 |
GVF5# |
1 | ||
| 58372B - PANEL, BODY LOWER BACK, LOWER | ||||
| 58372-50130 |
GVF5# |
1 | ||
| 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58383-50020 |
GVF5# |
1 | ||
| 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-50020 |
GVF5# |
1 | ||
| 58385E - BRACKET, REAR BUMPER COVER, RH | ||||
| 58385-33060 |
GVF5# |
1 | ||
| 58386G - BRACKET, REAR BUMPER COVER, LH | ||||
| 58385-33060 |
GVF5# |
1 | ||
| 58619F - SHEET, CENTER FLOOR SILENCER | ||||
| 58619-30080 |
GVF5# |
11 | ||
| 58619F - SHEET, CENTER FLOOR SILENCER | ||||
| 58619-30080 |
GVF5# |
11 | ||
| 65565A - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-50010 |
GVF5# |
1 | ||
| 65566A - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-50010 |
GVF5# |
1 | ||
| 74437B - BRACKET, BATTERY CARRIER, NO.5 | ||||
| 74437-50010 |
GVF5# |
1 | ||
| 74438B - BRACKET, BATTERY CARRIER, NO.6 | ||||
| 74438-50010 |
GVF5# |
1 | ||
| G929NA - PLUG, BATTERY DRAIN | ||||
| G929N-52010 |
GVF5# |
1 | ||
| Common parts | ||||
| 82711-3F480 | ||||
| 90119-08C89 | ||||
| 90561-04013 | ||||
| 90561-12009 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 3(1710- )
Click highlighted areas on diagram
ﾌﾛｱﾊﾟﾈﾙ & ﾛﾜｰﾊﾞｯｸﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58111B - BOLT, WELD(FOR FRONT FLOOR PAN) | ||||
| 90115-06166 |
GVF5# |
14 | ||
| 58112B - BOLT, WELD(FOR FRONT FLOOR PAN, LH) | ||||
| 90115-06166 |
GVF55 |
17 | ||
| 58113B - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06166 |
GVF5# |
2 | ||
| 58113C - BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90115-06242 |
GVF5# |
4 | ||
| 58113E - NUT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90174-06002 |
GVF55 |
5 | ||
| 90174-06002 |
GVF55,VXFA55 |
4 | ||
| 58113F - NUT, WELD(FOR FRONT FLOOR PANEL, CENTER) | ||||
| 90174-08010 |
GVF5# |
8 | ||
| 58211K - BOLT, WELD(FOR CENTER FLOOR PAN) | ||||
| 90115-06166 |
GVF5# |
3 | ||
| 58211L - BOLT, WELD(FOR CENTER FLOOR PAN) | ||||
| 90115-06167 |
GVF5# |
8 | ||
| 58211M - BOLT, WELD(FOR CENTER FLOOR PAN) | ||||
| 90115-06242 |
GVF5# |
10 | ||
| 58311K - BOLT, WELD(FOR REAR FLOOR PAN) | ||||
| 90115-06166 |
GVF5# |
7 | ||
| 58311M - BOLT, WELD(FOR REAR FLOOR PAN) | ||||
| 90115-06166 |
GVF5# |
3 | ||
| 58311N - BOLT, WELD(FOR REAR FLOOR PAN) | ||||
| 90115-06242 |
GVF5# |
3 | ||
| 58311P - BOLT, WELD(FOR REAR FLOOR PAN) | ||||
| 90115-06242 |
GVF5# |
7 | ||
