GVF50-AEVQH (2020)
Toyota Lexus Ls500/500h
Production
Oct 2020
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2010- )

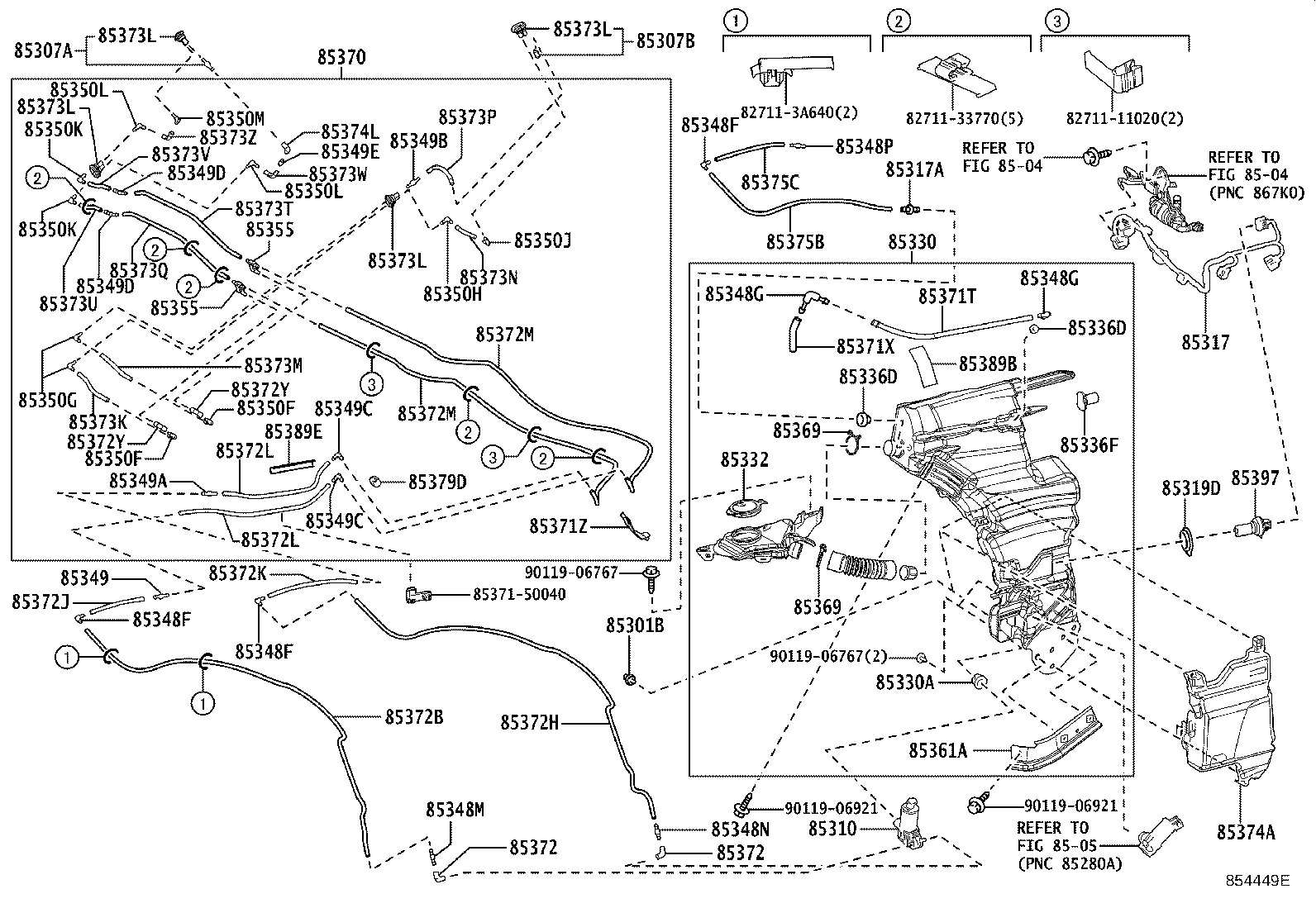

Click highlighted areas on diagram
ｱﾘ(ﾘﾔｳｫｯｼｬｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301B - CLIP, WASHER | ||||
| 90467-07220 |
GVF5#,VXFA5# |
3 | ||
| 85307A - GROMMET SUB-ASSY, WASHER, NO.1 | ||||
| 85307-50010 |
GVF5#,VXFA5# |
1 | ||
| 85307B - GROMMET SUB-ASSY, WASHER, NO.2 | ||||
| 85307-50020 |
GVF5#,VXFA5# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-11040 |
GVF5#,VXFA5# |
1 | ||
| 85317 - WIRING ASSY, WASHER | ||||
| 85317-50210 |
GVF5# |
1 | ||
| 85317A - JOINT, WASHER TANK | ||||
| 867F4-50010 |
GVF5# |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GVF5#,VXFA5# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-50120 |
GVF5# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GVF5# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-50260 |
GVF5# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-50200 |
GVF5# |
2 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-50200 |
GVF5# |
2 | ||
| 85336F - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-50220 |
GVF5# |
1 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
GVF5# |
3 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
GVF5# |
3 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
GVF5# |
3 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-50170 |
GVF5# |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-50170 |
GVF5# |
2 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
GVF5#,VXFA5# |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-10260 |
GVF5#,VXFA5# |
1 | ||
| 85348P - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GVF5# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
GVF5#,VXFA5# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
GVF5#,VXFA5# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
GVF5#,VXFA5# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-14560 |
GVF5#,VXFA5# |
2 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-14560 |
GVF5#,VXFA5# |
2 | ||
| 85349E - JOINT, WINDSHIELD WASHER HOSE, NO.5 | ||||
| 85375-10260 |
GVF5#,VXFA5# |
1 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85350G - JOINT, WINDSHIELD WASHER ELBOW, NO.6 | ||||
| 85377-50170 |
GVF5#,VXFA5# |
2 | ||
| 85350H - JOINT, WINDSHIELD WASHER ELBOW, NO.7 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
1 | ||
| 85350J - JOINT, WINDSHIELD WASHER ELBOW, NO.8 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
1 | ||
| 85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9 | ||||
| 85377-50170 |
GVF5#,VXFA5# |
2 | ||
| 85350K - JOINT, WINDSHIELD WASHER ELBOW, NO.9 | ||||
| 85377-50170 |
GVF5#,VXFA5# |
2 | ||
| 85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85350L - JOINT, WINDSHIELD WASHER ELBOW, NO.10 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
2 | ||
| 85350M - JOINT, WINDSHIELD WASHER ELBOW, NO.11 | ||||
| 85355-20200 |
GVF5#,VXFA5# |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GVF5#,VXFA5# |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GVF5#,VXFA5# |
2 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-50220 |
GVF5# |
1 | ||
| 85369 - CLAMP | ||||
| 90099-35033 |
GVF5# |
2 | ||
| 85369 - CLAMP | ||||
| 90099-35033 |
GVF5# |
2 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-50171 |
GVF5#,VXFA5# |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 90099-59398 |
GVF5# |
1 | ||
| 85371X - HOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT) | ||||
| 90099-33080 |
GVF5# |
1 | ||
| 85371Z - CLAMP, WASHER HOSE | ||||
| 85371-50030 |
GVF5#,VXFA5# |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85336-12230 |
GVF5#,VXFA5# 長さ=15 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85336-12230 |
GVF5#,VXFA5# 長さ=15 |
2 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=990 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=1000 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=180 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=180 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=230 |
2 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=230 |
2 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=1050 |
2 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=1050 |
2 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 85336-12230 |
GVF5#,VXFA5# |
2 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 85336-12230 |
GVF5#,VXFA5# |
2 | ||
| 85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=120 |
1 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
GVF5#,VXFA5# |
4 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
GVF5#,VXFA5# |
4 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
GVF5#,VXFA5# |
4 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
GVF5#,VXFA5# |
4 | ||
| 85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=100 |
1 | ||
| 85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=60 |
1 | ||
| 85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=90 |
1 | ||
| 85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=340 |
1 | ||
| 85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=320 |
1 | ||
| 85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=135 |
1 | ||
| 85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=125 |
1 | ||
| 85373W - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=50 |
1 | ||
| 85373Z - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18 | ||||
| 90099-33080 |
GVF5#,VXFA5# *H,L=1450 |
1 | ||
| 85374A - PROTECTOR, WASHER HOSE | ||||
| 85372-50020 |
GVF5#,VXFA5# |
1 | ||
| 85374L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.19 | ||||
| 85336-12230 |
GVF5#,VXFA5# 長さ=15 |
1 | ||
| 85375B - HOSE, WINDSHIELD WASHER (OIL REMOVING NO.1) | ||||
| 90099-33080 |
GVF5# |
1 | ||
| 85375C - HOSE, WINDSHIELD WASHER (OIL REMOVING NO.2) | ||||
| 90099-33080 |
GVF5# |
1 | ||
| 85379D - GROMMET, WASHER, A | ||||
| 85379-50170 |
GVF5#,VXFA5# |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-50180 |
GVF5# |
1 | ||
| 85389E - PROTECTOR, WINDSHIELD WASHER, NO.2 | ||||
| 85389-12880 |
GVF5#,VXFA5# |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GVF5#,VXFA5# |
1 | ||
| Common parts | ||||
| 82711-11020 | ||||
| 82711-33770 | ||||
| 82711-3A640 | ||||
| 85371-50040 | ||||
| 90119-06767 | ||||
| 90119-06921 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
