USF46-AEZQH (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

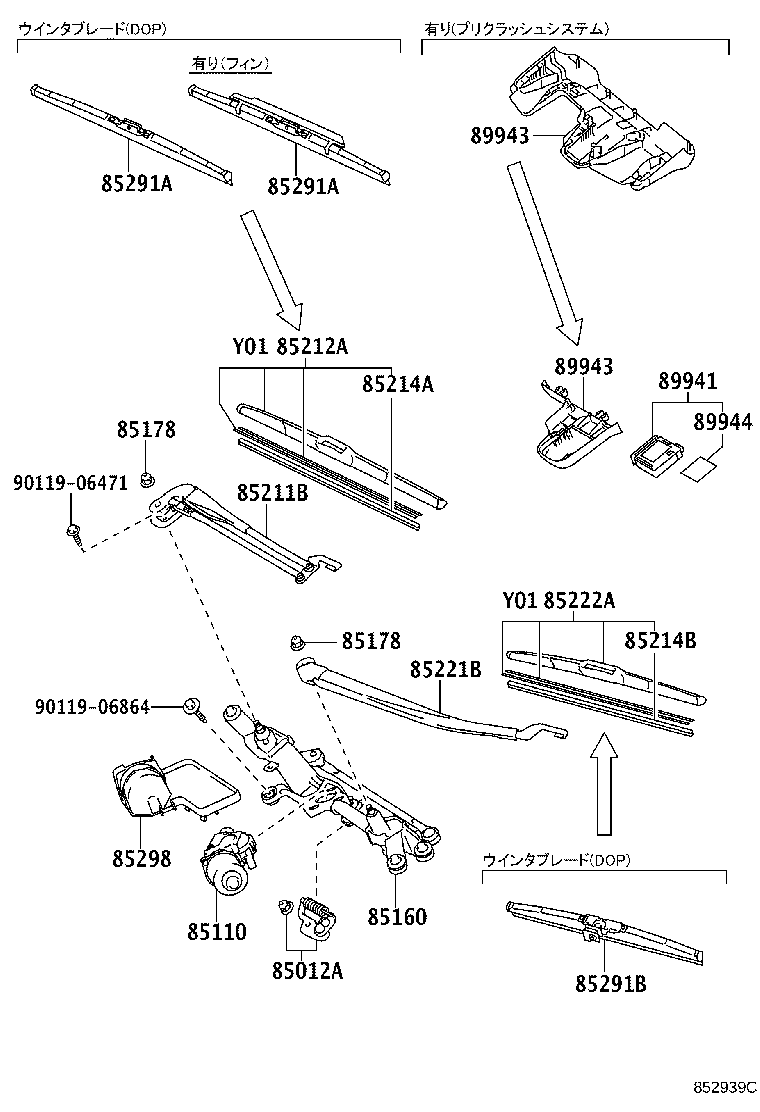

ILLUST NO. 2 OF 2(1209- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-50010 |
USF4# |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-50150 |
USF4# |
1 | ||
| 85110-50151 |
USF4# |
1 | ||
| 85110-48210 |
USF4# 寒冷地仕様 |
1 | ||
| 85110-50160 |
USF4# 寒冷地仕様 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-50210 |
USF4# 寒冷地仕様 |
1 | ||
| 85150-50170 |
USF4# |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
USF4# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
USF4# |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-50160 |
USF4# |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-5010079 |
USF4# |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-30380 |
USF4# |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-42050 |
USF4# |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-50130 |
USF4# |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-4210079 |
USF4# |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-5008079 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-5009079 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-5008079 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-5009079 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-5004179 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291-5004179 |
USF4# ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85298 - COVER, WIPER MOTOR | ||||
| 85111-50070 |
USF4# |
1 | ||
| 89941 - SENSOR, RAIN | ||||
| 89941-50060 |
USF4# |
1 | ||
| 89941-50050 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB) |
1 | ||
| 89943 - COVER, RAIN SENSOR | ||||
| 75631-50091 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB) |
1 | ||
| 75631-50091 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB)&ﾅｲﾄ ﾋﾞｭｰ−歩行者検知機能付き |
1 | ||
| 89943-50020 |
USF4# |
1 | ||
| 89943 - COVER, RAIN SENSOR | ||||
| 75631-50091 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB) |
1 | ||
| 75631-50091 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB)&ﾅｲﾄ ﾋﾞｭｰ−歩行者検知機能付き |
1 | ||
| 89943-50020 |
USF4# |
1 | ||
| 89944 - TAPE, RAIN SENSOR | ||||
| 89944-50021 |
USF4# |
1 | ||
| Common parts | ||||
| 90119-06471 | ||||
| 90119-06864 | ||||
ILLUST NO. 1 OF 2(1209- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT) | ||||
| 85213-50050 |
USF4# |
1 | ||
| 85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT) | ||||
| 85213-50070 |
USF4# |
1 | ||
