USF46-AEZQH (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1209- )USF45,46

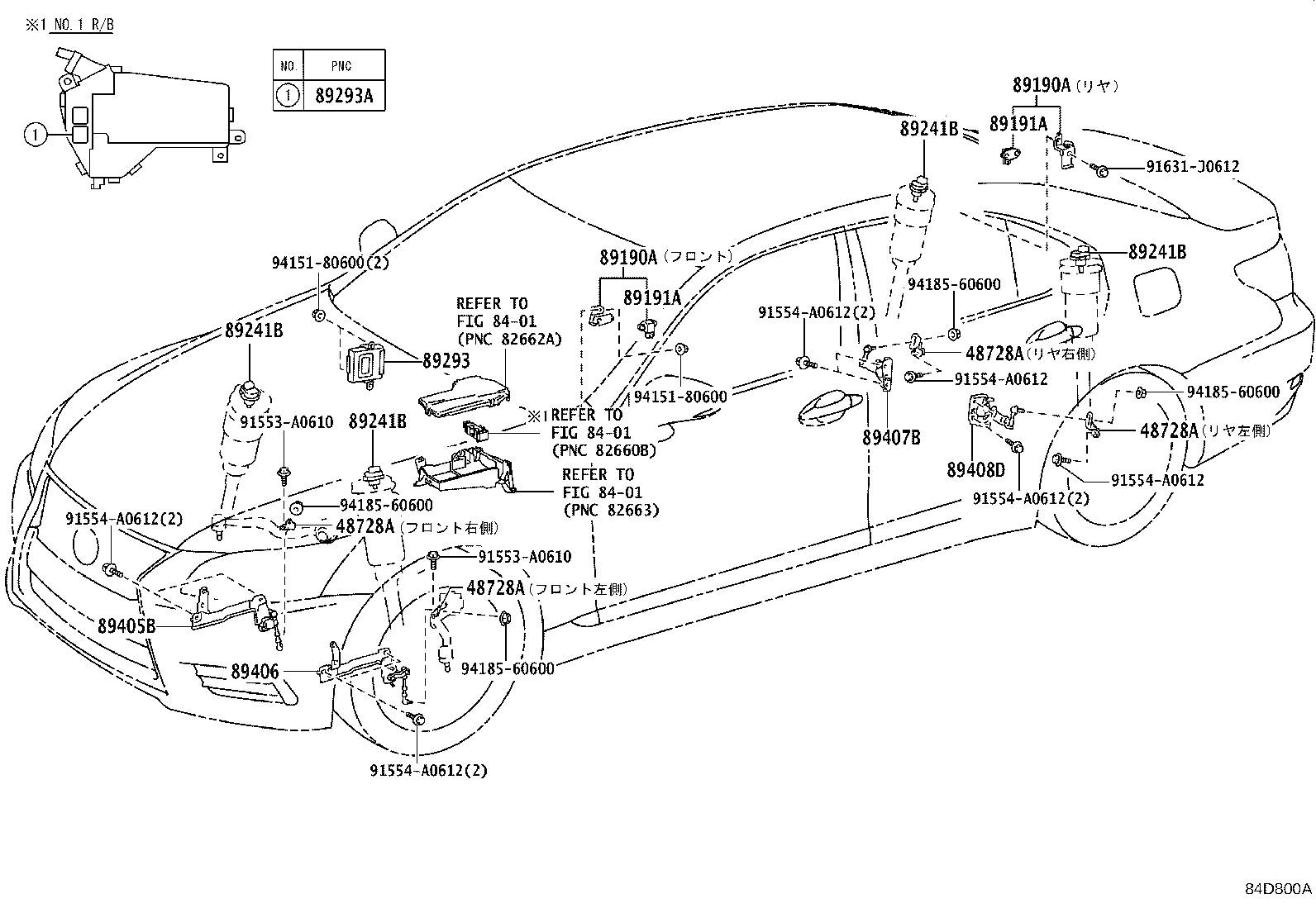

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48728A - BRACKET, LOAD SENSING VALVE SENSOR | ||||
| 48728-50040 |
USF45,46 ﾌﾛﾝﾄ左側 |
1 | ||
| 48728-50020 |
USF45,46 ﾘﾔ左側 |
1 | ||
| 48728-50010 |
USF45,46 ﾘﾔ右側 |
1 | ||
| 48728-50030 |
USF45,46 ﾌﾛﾝﾄ右側 |
1 | ||
| 48728A - BRACKET, LOAD SENSING VALVE SENSOR | ||||
| 48728-50040 |
USF45,46 ﾌﾛﾝﾄ左側 |
1 | ||
| 48728-50020 |
USF45,46 ﾘﾔ左側 |
1 | ||
| 48728-50010 |
USF45,46 ﾘﾔ右側 |
1 | ||
| 48728-50030 |
USF45,46 ﾌﾛﾝﾄ右側 |
1 | ||
| 48728A - BRACKET, LOAD SENSING VALVE SENSOR | ||||
| 48728-50040 |
USF45,46 ﾌﾛﾝﾄ左側 |
1 | ||
| 48728-50020 |
USF45,46 ﾘﾔ左側 |
1 | ||
| 48728-50010 |
USF45,46 ﾘﾔ右側 |
1 | ||
| 48728-50030 |
USF45,46 ﾌﾛﾝﾄ右側 |
1 | ||
| 48728A - BRACKET, LOAD SENSING VALVE SENSOR | ||||
| 48728-50040 |
USF45,46 ﾌﾛﾝﾄ左側 |
1 | ||
| 48728-50020 |
USF45,46 ﾘﾔ左側 |
1 | ||
| 48728-50010 |
USF45,46 ﾘﾔ右側 |
1 | ||
| 48728-50030 |
USF45,46 ﾌﾛﾝﾄ右側 |
1 | ||
| 89190A - SENSOR ASSY, ACCELERATION | ||||
| 89190-50011 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 89190-30050 |
USF4# ﾘﾔ |
1 | ||
| 89190A - SENSOR ASSY, ACCELERATION | ||||
| 89190-50011 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 89190-30050 |
USF4# ﾘﾔ |
1 | ||
| 89191A - SENSOR, ACCELERATION | ||||
| 89191-22020 |
USF4# |
2 | ||
| 89191A - SENSOR, ACCELERATION | ||||
| 89191-22020 |
USF4# |
2 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30041 |
USF4# |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30041 |
USF4# |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30041 |
USF4# |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30041 |
USF4# |
4 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-50272 |
USF4# |
1 | ||
| 89293-50274 |
USF4# |
1 | ||
| 89293-50273 |
USF4# |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90987-02025 |
USF4# |
1 | ||
| 89405B - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH | ||||
| 89405-50100 |
USF45,46 |
1 | ||
| 89406 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH | ||||
| 89406-50130 |
USF45,46 |
1 | ||
| 89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-50070 |
USF4# |
1 | ||
| 89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH | ||||
| 89408-50070 |
USF4# |
1 | ||
| Common parts | ||||
| 91553-A0610 | ||||
| 91554-A0612 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
