USF46-AEZQH (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

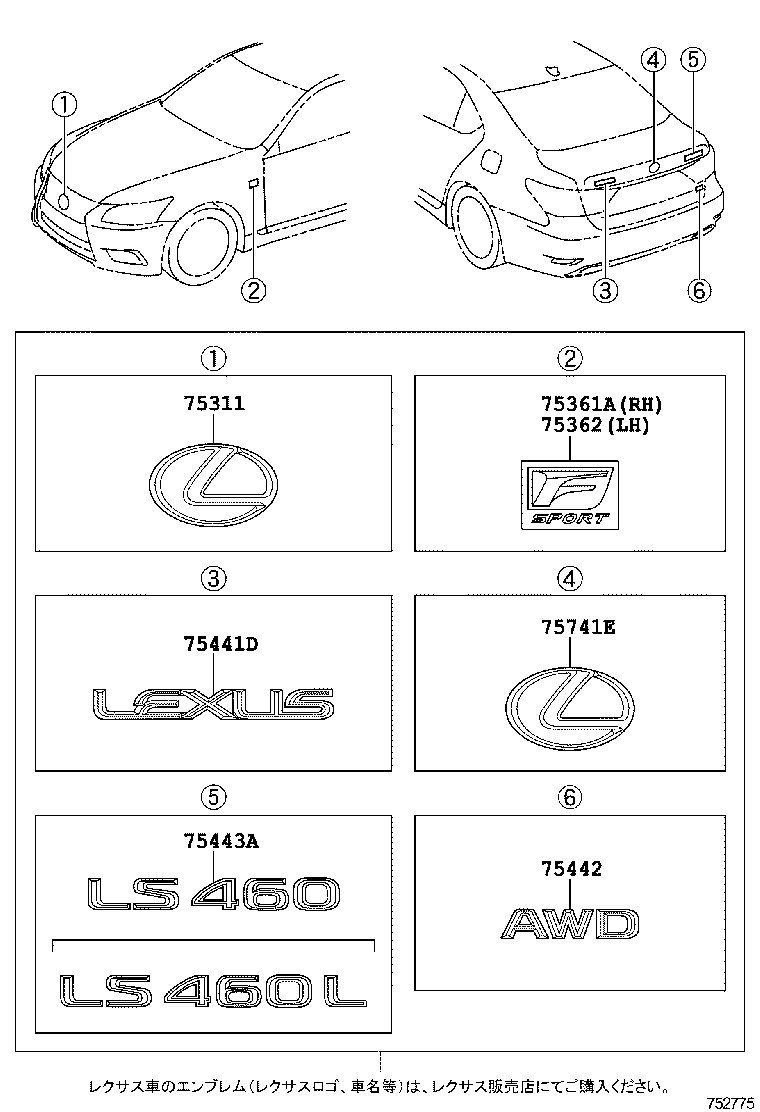

Click highlighted areas on diagram

diagram 75311 75361A 75362 75441D 75442 75443A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
53141-5004079

USF41,46

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*RPCS&*PB),購入時はｲﾗｽﾄ参照

 1
90975-0213379

USF4#

購入時はｲﾗｽﾄ参照

 1
53141-5004079

USF4#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*MRT&*PB&*PSB),購入時はｲﾗｽﾄ参照

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-5013079

USF4#

LEXUS,購入時はｲﾗｽﾄ参照

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-5006079

USF45,46

AWD,購入時はｲﾗｽﾄ参照

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-5011079

USF41,46

LS 460L,購入時はｲﾗｽﾄ参照

 1
75741E - EMBLEM, SYMBOL
90975-0208479

USF4#

購入時はｲﾗｽﾄ参照

 1
90975-0221279

USF4#

購入時はｲﾗｽﾄ参照

 1
