USF46-AEZQH (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )

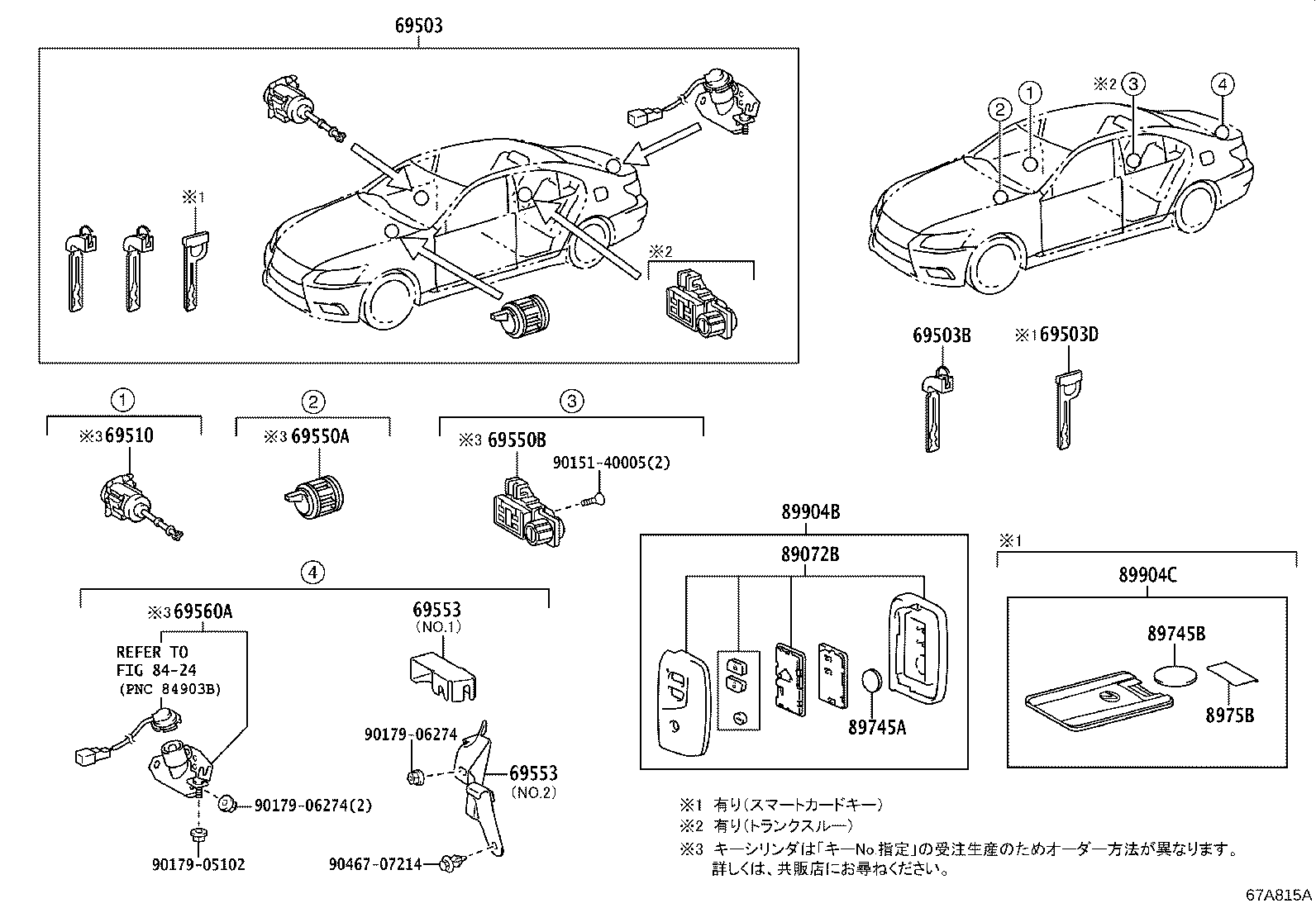

Click highlighted areas on diagram

diagram 69503 69503B 69503D 69510 69550A 69550B 69553 69553 69560A 8424 89072B 89745A 89745B 8975B 89904B 89904C 9015140005 9017905102 9017906274 9017906274 9046707214
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-50D10

USF41,46

 1
69005-50D30

USF41,46

電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個)

 1
69005-50D30

USF41,46

 1
69503B - KEY, CUT
69515-50280

USF4#

ﾏｽﾀｰｷｰ,W(*68)

 2
69503D - KEY, CUT(CARD KEY)
69515-30330

USF4#

ﾏｽﾀｰｷｰ,電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個)

 1
69515-30330

USF4#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-50120

USF4#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-50040

USF4#

 1
69550B - CYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK
69550-50050

USF4#

 1
69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
69553-50020

USF4#

NO.2

 1
69553-50010

USF4#

NO.1

 1
69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
69553-50020

USF4#

NO.2

 1
69553-50010

USF4#

NO.1

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-50100

USF4#

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-50D50

USF4#

 2
89745A - BATTERY, TRANSMITTER
89745-52020

USF4#

 1
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030

USF4#

 1
89745-50030

USF4#

電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個)

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-50020

USF4#

 1
8975B-50020

USF4#

電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-50730

USF4#

 2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89904-50L70

USF4#

 1
89904-50L70

USF4#

電子ｷｰ(2個)+ｽﾏｰﾄｶｰﾄﾞｷｰ(1個)

 1
Common parts
90151-40005
90179-05102
90179-06274
90467-07214
Linked diagrams
8424
