Toyota Lexus ls460/460l USF46 ANTENNA

USF46-AEZQH (2008)

Toyota Lexus Ls460/460l

Production Sep 2008 - Sep 2009

Engine 1URFSE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

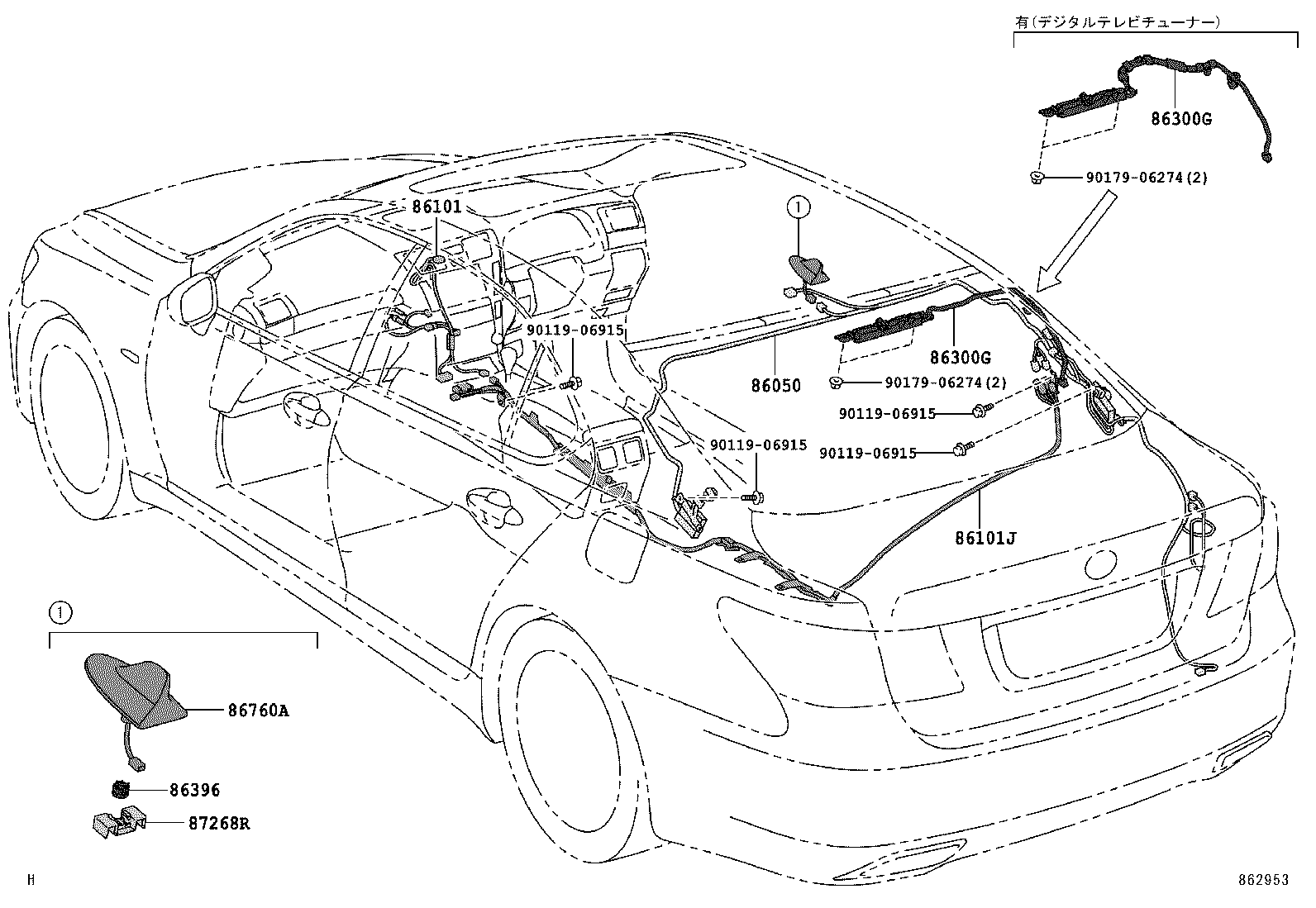

ILLUST NO. 1 OF 2(0608-0909)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86050 - ANTENNA ASSY, TELEVISION
86050-50210	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86050-50140	USF4# ｵｰﾃﾞｨｵ−AM−FM,MD,DVDﾁｪﾝｼﾞｬｰ,ﾏｰｸﾚﾋﾞﾝｿﾝ&有り(ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ&後席ﾃﾞｨｽﾌﾟﾚｲ)	09/2008 - 09/2009	1
86050-50160	USF4# ｵｰﾃﾞｨｵ−AM−FM,MD,DVDﾁｪﾝｼﾞｬｰ,ﾏｰｸﾚﾋﾞﾝｿﾝ	09/2008 - 09/2009	1
86050-50130	USF4# ｵｰﾃﾞｨｵ−AM−FM,MD,DVDﾁｪﾝｼﾞｬｰ,ﾏｰｸﾚﾋﾞﾝｿﾝ&ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86050-50140	USF4#	09/2008 - 09/2009	1
86101 - CORD SUB-ASSY, ANTENNA
86101-50470	USF4# ｵｰﾃﾞｨｵ−AM−FM,MD,DVDﾁｪﾝｼﾞｬｰ,ﾏｰｸﾚﾋﾞﾝｿﾝ	09/2008 - 09/2009	1
86101-50460	USF4#	09/2008 - 09/2009	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-50770	USF41,46	09/2008 - 09/2009	1
86101-50650	USF41,46 ｵｰﾃﾞｨｵ−AM−FM,MD,DVDﾁｪﾝｼﾞｬｰ,ﾏｰｸﾚﾋﾞﾝｿﾝ	09/2008 - 09/2009	1
86300G - ANTENNA ASSY, TELEVISION AMPLIFIER
86300-50190	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86300-50150	USF4#	09/2008 - 09/2009	1
86300G - ANTENNA ASSY, TELEVISION AMPLIFIER
86300-50190	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86300-50150	USF4#	09/2008 - 09/2009	1
86396 - NUT, ANTENNA
86396-30050	USF4#	09/2008 - 09/2009	1
86760A - ANTENNA ASSY, TELEPHONE
86760-50080A2	USF4# WHITE PEARL CS.,077	09/2008 - 09/2009	1
86760-50080B1	USF4# DK.GRAY MC.,1G0	09/2008 - 09/2009	1
86760-50080B0	USF4# PREMIUM SILVER,1F2	09/2008 - 09/2009	1
86760-50080D1	USF4# DK.RED MC.CS.,3R7	09/2008 - 09/2009	1
86760-50080E0	USF4# BEIGE ME.,4T1	09/2008 - 09/2009	1
86760-50080B2	USF4# FROSTY PEARL MC.,1G5	09/2008 - 09/2009	1
86760-50080E1	USF4# SABLE M.M.,4T5	09/2008 - 09/2009	1
86760-50080J0	USF4# DK.BLUE MC. CC.,8U0	09/2008 - 09/2009	1
86760-50080G0	USF4# JADE GREEN ME.,6V0	09/2008 - 09/2009	1
86760-50080C0	USF4# BLACK,212	09/2008 - 09/2009	1
87268R - PROTECTOR, TELEPHONE ANTENNA
87268-50020	USF4#	09/2008 - 09/2009	1
Common parts
90119-06915
90179-06274

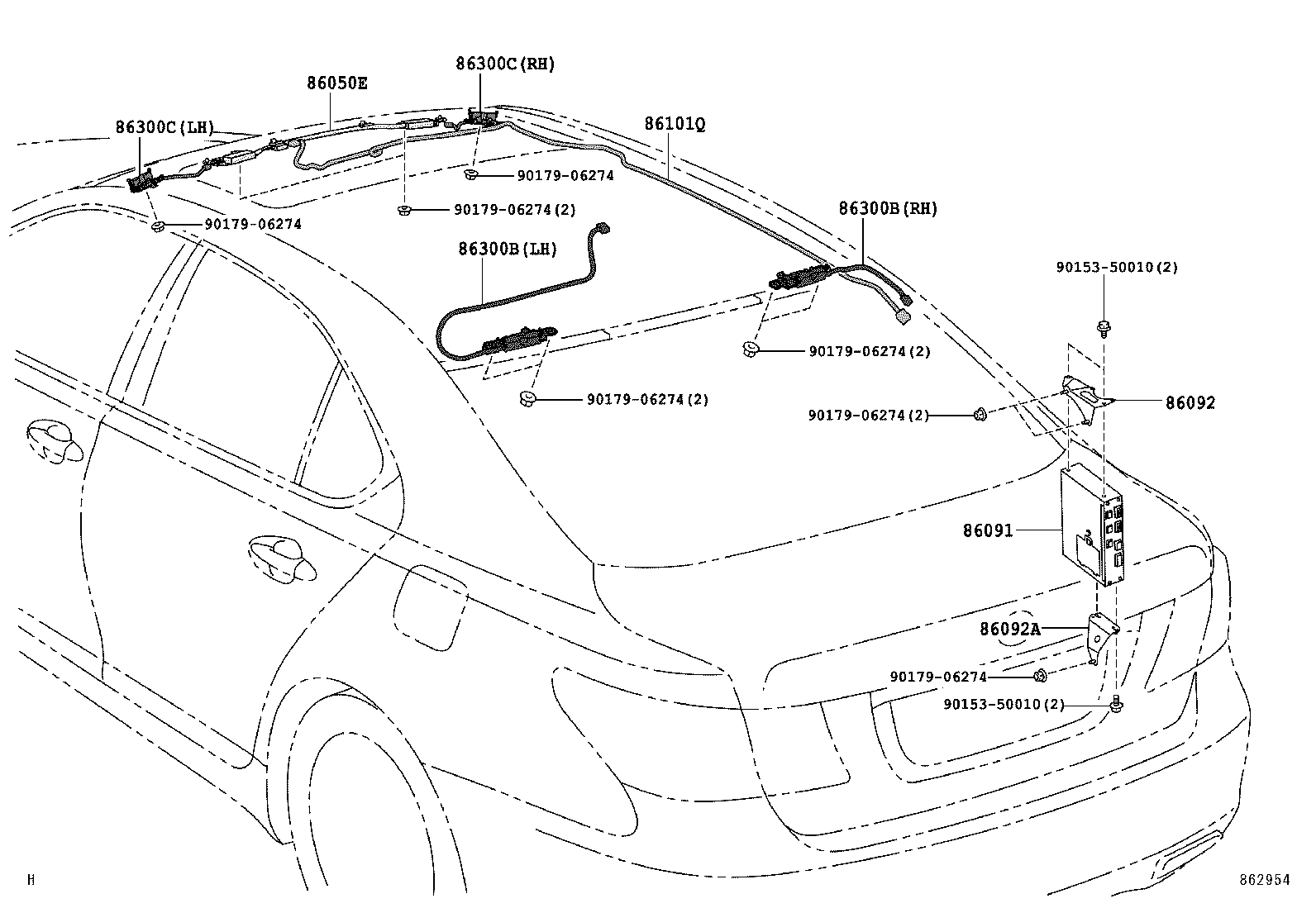

ILLUST NO. 2 OF 2(0608-0909)

Click highlighted areas on diagram

ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ

Part #	Description	Period	Qty
86050E - ANTENNA ASSY, TELEVISION
86050-50150	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86091 - PARTS SET, DIGITAL TELEVISION
86091-50020	USF4# ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り	09/2008 - 09/2009	1
86092 - BRACKET, DIGITAL TELEVISION, FRONT
86092-50010	USF4# ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り	09/2008 - 09/2009	1
86092A - BRACKET, DIGITAL TELEVISION, REAR
86092-50020	USF4# ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り	09/2008 - 09/2009	1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-50640	USF41,46 ﾑｰﾝﾙｰﾌ−有り&ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86101-50760	USF41,46 ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ	09/2008 - 09/2009	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-50200	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,右側	09/2008 - 09/2009	1
86300-50210	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,左側	09/2008 - 09/2009	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-50200	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,右側	09/2008 - 09/2009	1
86300-50210	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,左側	09/2008 - 09/2009	1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-50220	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,右側	09/2008 - 09/2009	1
86300-50230	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,左側	09/2008 - 09/2009	1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-50220	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,右側	09/2008 - 09/2009	1
86300-50230	USF4# ﾃﾚﾋﾞｱﾝﾃﾅ−ﾃﾞｼﾞﾀﾙ,左側	09/2008 - 09/2009	1
Common parts
90153-50010
90179-06274
