USF45-AEZQH (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1209- )

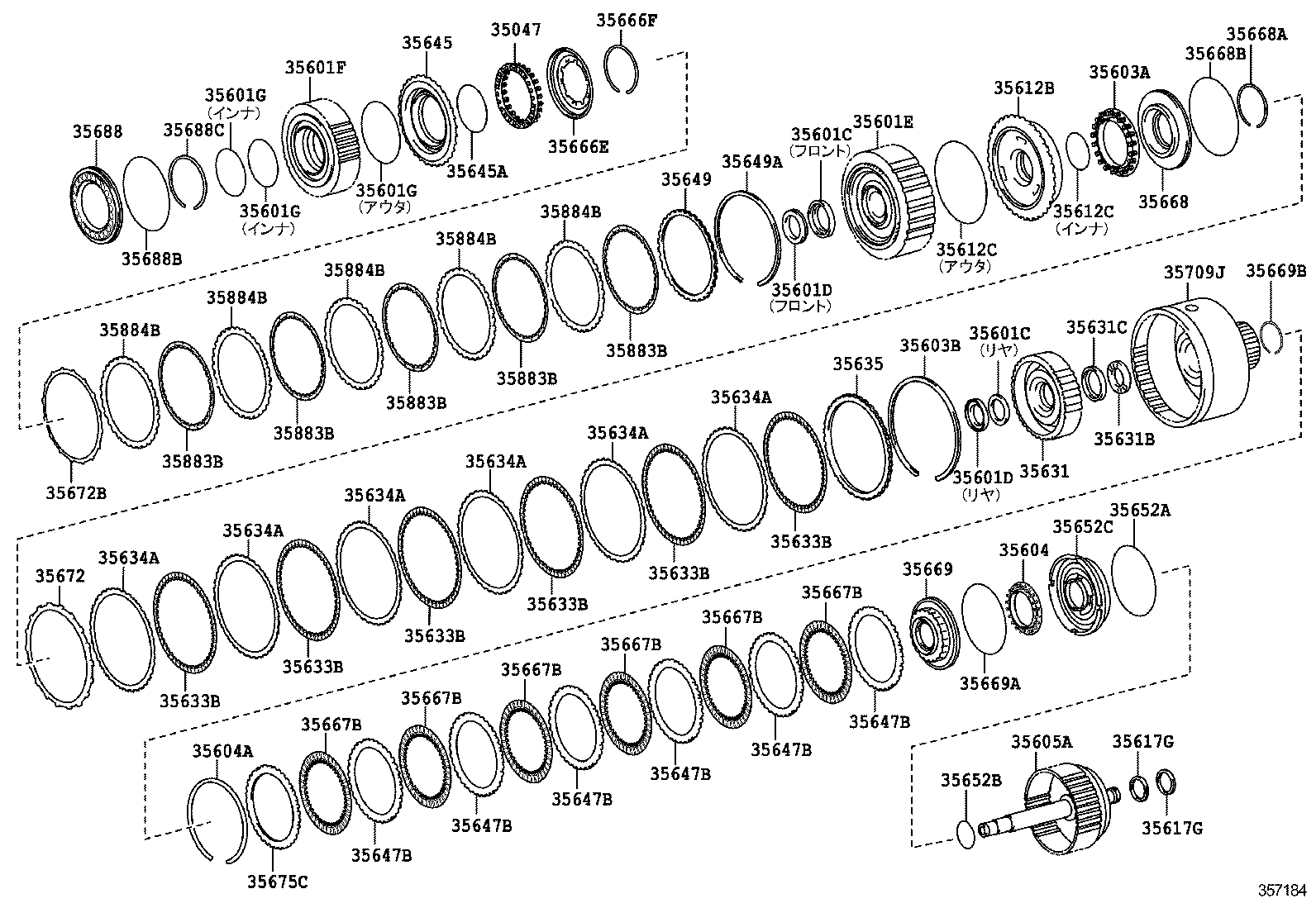

Click highlighted areas on diagram
AA80E,AA80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35047 - SPRING SUB-ASSY, REVERSE CLUTCH RETURN | ||||
| 35047-50010 |
USF4# |
1 | ||
| 35601C - RACE, THRUST BEARING (FOR FRONT CLUTCH DRUM) | ||||
| 35789-50160 |
USF4# ﾘﾔ |
1 | ||
| 35789-50150 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 35601C - RACE, THRUST BEARING (FOR FRONT CLUTCH DRUM) | ||||
| 35789-50160 |
USF4# ﾘﾔ |
1 | ||
| 35789-50150 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 35601D - BEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM) | ||||
| 90374-34013 |
USF4# ﾘﾔ |
1 | ||
| 90374-36004 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 35601D - BEARING, THRUST NEEDLE ROLLER (FOR FRONT CLUTCH DRUM) | ||||
| 90374-34013 |
USF4# ﾘﾔ |
1 | ||
| 90374-36004 |
USF4# ﾌﾛﾝﾄ |
1 | ||
| 35601E - DRUM SUB-ASSY, FORWARD CLUTCH | ||||
| 35601-50040 |
USF4# |
1 | ||
| 35601F - DRUM SUB-ASSY, REVERSE CLUTCH | ||||
| 35606-50010 |
USF4# |
1 | ||
| 35601G - RING, O (FOR REVERSE CLUTCH DRUM) | ||||
| 90301-74002 |
USF4# 内側 |
2 | ||
| 90301-99120 |
USF4# 外側 |
1 | ||
| 35601G - RING, O (FOR REVERSE CLUTCH DRUM) | ||||
| 90301-74002 |
USF4# 内側 |
2 | ||
| 90301-99120 |
USF4# 外側 |
1 | ||
| 35601G - RING, O (FOR REVERSE CLUTCH DRUM) | ||||
| 90301-74002 |
USF4# 内側 |
2 | ||
| 90301-99120 |
USF4# 外側 |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50040 |
USF4# |
1 | ||
| 35603B - RING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON) | ||||
| 90521-99145 |
USF4# |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-50020 |
USF4# |
1 | ||
| 35604A - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON) | ||||
| 90521-99144 |
USF4# |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-50020 |
USF4# |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35612-50030 |
USF4# |
1 | ||
| 35612C - RING, O(FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49011 |
USF4# 内側 |
1 | ||
| 90301-99168 |
USF4# 外側 |
1 | ||
| 35612C - RING, O(FOR FORWARD CLUTCH PISTON) | ||||
| 90301-49011 |
USF4# 内側 |
1 | ||
| 90301-99168 |
USF4# 外側 |
1 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50040 |
USF4# |
2 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50040 |
USF4# |
2 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-50030 |
USF4# |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-47003 |
USF4# |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-50170 |
USF4# |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-50020 |
USF4# |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-50020 |
USF4# 厚さ=2.0 |
6 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-50130 |
USF4# 厚さ=4.8,ﾏｰｸ 4 |
1 | ||
| 35635-50120 |
USF4# 厚さ=4.7,ﾏｰｸ 3 |
1 | ||
| 35635-50110 |
USF4# 厚さ=4.6,ﾏｰｸ 2 |
1 | ||
| 35635-50140 |
USF4# 厚さ=4.9,ﾏｰｸ 5 |
1 | ||
| 35635-50150 |
USF4# 厚さ=5.0,ﾏｰｸ 6 |
1 | ||
| 35635-50100 |
USF4# 厚さ=4.5,ﾏｰｸ 1 |
1 | ||
| 35635-50170 |
USF4# 厚さ=5.2,ﾏｰｸ 8 |
1 | ||
| 35635-50090 |
USF4# 厚さ=4.4,ﾏｰｸ 0 |
1 | ||
| 35635-50160 |
USF4# 厚さ=5.1,ﾏｰｸ 7 |
1 | ||
| 35645 - PISTON, REVERSE CLUTCH | ||||
| 35645-50010 |
USF4# |
1 | ||
| 35645A - RING, O (FOR REVERSE CLUTCH PISTON) | ||||
| 90301-74002 |
USF4# |
1 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35647B - PLATE, CLUTCH, NO.2 | ||||
| 35647-50020 |
USF4# |
6 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-50080 |
USF4# 厚さ=3.0,ﾏｰｸ 0 |
1 | ||
| 35649-50110 |
USF4# 厚さ=3.3,ﾏｰｸ 3 |
1 | ||
| 35649-50090 |
USF4# 厚さ=3.1,ﾏｰｸ 1 |
1 | ||
| 35649-50130 |
USF4# 厚さ=3.5,ﾏｰｸ 5 |
1 | ||
| 35649-50150 |
USF4# 厚さ=3.7,ﾏｰｸ 7 |
1 | ||
| 35649-50140 |
USF4# 厚さ=3.6,ﾏｰｸ 6 |
1 | ||
| 35649-50100 |
USF4# 厚さ=3.2,ﾏｰｸ 2 |
1 | ||
| 35649-50160 |
USF4# 厚さ=3.8,ﾏｰｸ 8 |
1 | ||
| 35649-50120 |
USF4# 厚さ=3.4,ﾏｰｸ 4 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90521-99142 |
USF4# |
1 | ||
| 35652A - RING (FOR REAR CLUTCH OUTER) | ||||
| 90301-99173 |
USF4# |
1 | ||
| 35652B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-39013 |
USF4# |
1 | ||
| 35652C - PISTON, DIRECT CLUTCH | ||||
| 35652-50010 |
USF4# |
1 | ||
| 35666E - BALANCER, REVERSE CLUTCH | ||||
| 35666-50020 |
USF4# |
1 | ||
| 35666F - RING, SNAP (FOR REVERSE CLUTCH BALANCER) | ||||
| 90520-61002 |
USF4# |
1 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35667B - DISK, CLUTCH, NO.2 | ||||
| 35667-50070 |
USF4# |
6 | ||
| 35668 - BALANCER, CLUTCH, NO.1 | ||||
| 35668-50020 |
USF4# |
1 | ||
| 35668A - RING, SNAP(FOR CLUTCH BALANCER) | ||||
| 90520-44039 |
USF4# |
1 | ||
| 35668B - RING, O(FOR CLUTCH BALANCER) | ||||
| 90301-99181 |
USF4# |
1 | ||
| 35669 - BALANCER, CLUTCH, NO.2 | ||||
| 35669-50010 |
USF4# |
1 | ||
| 35669A - RING, O (FOR CLUTCH BALANCER NO.2) | ||||
| 90301-99169 |
USF4# |
1 | ||
| 35669B - RING, SNAP (FOR CLUTCH BALANCER) | ||||
| 90520-40019 |
USF4# |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-50050 |
USF4# |
1 | ||
| 35672B - PLATE, CLUTCH CUSHION, NO.2 | ||||
| 35672-50060 |
USF4# |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35635-50201 |
USF4# 厚さ=4.4,ﾏｰｸ 44 |
1 | ||
| 35635-50181 |
USF4# 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 35635-50231 |
USF4# 厚さ=4.1,ﾏｰｸ 41 |
1 | ||
| 35635-50211 |
USF4# 厚さ=4.6,ﾏｰｸ 46 |
1 | ||
| 35635-50251 |
USF4# 厚さ=4.5,ﾏｰｸ 45 |
1 | ||
| 35635-50221 |
USF4# 厚さ=4.8,ﾏｰｸ 48 |
1 | ||
| 35635-50191 |
USF4# 厚さ=4.2,ﾏｰｸ 42 |
1 | ||
| 35635-50241 |
USF4# 厚さ=4.3,ﾏｰｸ 43 |
1 | ||
| 35635-50261 |
USF4# 厚さ=4.7,ﾏｰｸ 47 |
1 | ||
| 35688 - BALANCER, CLUTCH, NO.3 | ||||
| 35688-50020 |
USF4# |
1 | ||
| 35688B - RING, O (FOR CLUTCH BALANCER NO.3) | ||||
| 90301-99118 |
USF4# |
1 | ||
| 35688C - RING, SNAP (FOR CLUTCH BALANCER NO.3) | ||||
| 90520-72008 |
USF4# |
1 | ||
| 35709J - DRUM SUB-ASSY, SUN GEAR INPUT | ||||
| 35709-50020 |
USF4# |
1 | ||
| 35883B - DISC, REVERSE CLUTCH | ||||
| 35883-50010 |
USF4# |
5 | ||
| 35883B - DISC, REVERSE CLUTCH | ||||
| 35883-50010 |
USF4# |
5 | ||
| 35883B - DISC, REVERSE CLUTCH | ||||
| 35883-50010 |
USF4# |
5 | ||
| 35883B - DISC, REVERSE CLUTCH | ||||
| 35883-50010 |
USF4# |
5 | ||
| 35883B - DISC, REVERSE CLUTCH | ||||
| 35883-50010 |
USF4# |
5 | ||
| 35884B - PLATE, REVERSE CLUTCH, NO1 | ||||
| 35884-50010 |
USF4# |
5 | ||
| 35884B - PLATE, REVERSE CLUTCH, NO1 | ||||
| 35884-50010 |
USF4# |
5 | ||
| 35884B - PLATE, REVERSE CLUTCH, NO1 | ||||
| 35884-50010 |
USF4# |
5 | ||
| 35884B - PLATE, REVERSE CLUTCH, NO1 | ||||
| 35884-50010 |
USF4# |
5 | ||
| 35884B - PLATE, REVERSE CLUTCH, NO1 | ||||
| 35884-50010 |
USF4# |
5 | ||
