USF45-AEZQH (2012)
Toyota Lexus Ls460/460l
Production
Sep 2012
-
Aug 2017
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1209- )

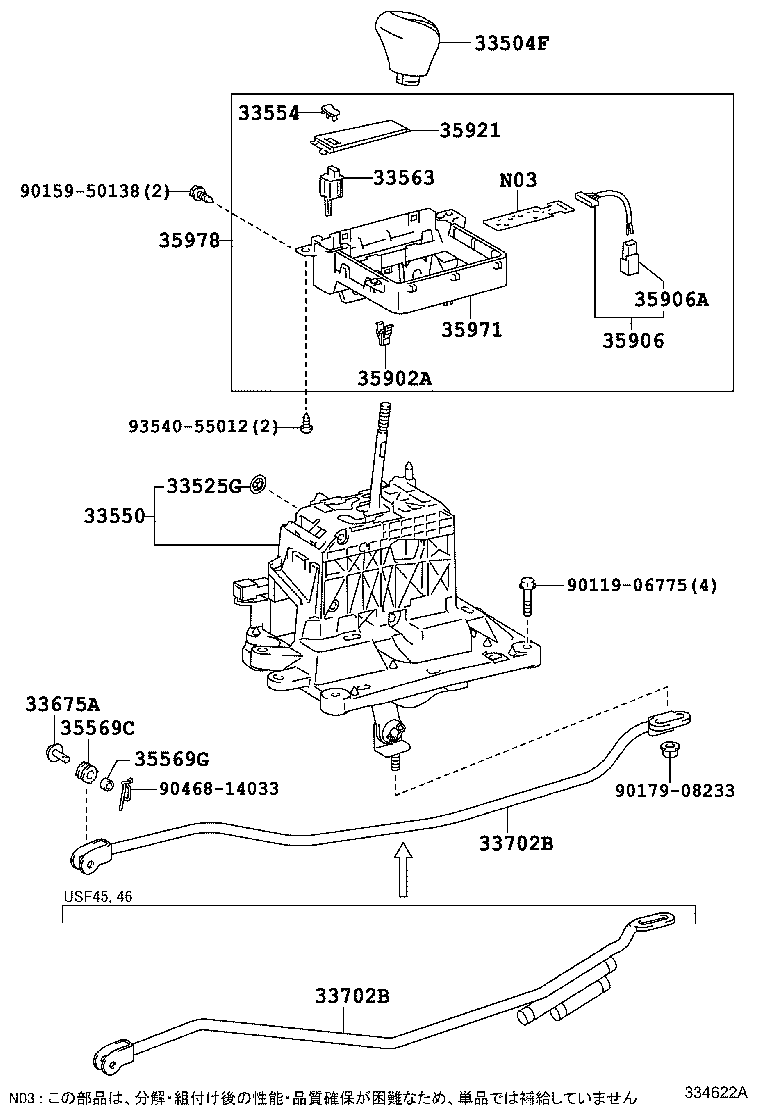

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-50310 |
USF4# |
1 | ||
| 33525G - RING, SHIFT LEVER | ||||
| 33525-50020 |
USF4# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-50590 |
USF45,46 |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-50080 |
USF4# |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-50110 |
USF4# |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-30020 |
USF4# |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-50110 |
USF45,46 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-50110 |
USF45,46 |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
USF4# |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
USF4# |
1 | ||
| 35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 90467-10203 |
USF4# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-50080 |
USF4# |
1 | ||
| 35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE) | ||||
| 90980-12367 |
USF4# |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-50140 |
USF4# |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-50100 |
USF4# |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-50070 |
USF4# |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90159-50138 | ||||
| 90179-08233 | ||||
| 90468-14033 | ||||
| 93540-55012 | ||||
