Toyota Lexus ls460/460l USF45 AIR PURIFIER OR ION GENERATOR

Part #	Description	Period	Qty
88051A - GENERATOR SUB-ASSY,ION
88051-12010	USF4#	09/2009 - 12/2999	1
Common parts
90159-50327

Part #	Description	Period	Qty
81206F - LAMP SUB-ASSY, COOLING BOX
81080-50030	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	1
88520A - BOX ASSY, COOLING
88520-50100A1	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,MELLOW WHITE,TRIM01,07	09/2009 - 12/2999	1
88520-50100A2	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,IVORY,TRIM00,06	09/2009 - 12/2999	1
88520-50100C0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,BLACK,TRIM2#	09/2009 - 09/2012	1
88520-50100B0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,LT.GRAY,TRIM1#	09/2009 - 12/2999	1
88605R - HARNESS SUB-ASSY, AIR PURIFIER
82212-50120	USF40,45 寒冷地仕様&ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 09/2012	1
82212-50120	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 09/2012	1
88892W - COVER, AIR PURIFIER
88891-50100	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
87103-50130	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 10/2010	1
87103-50131	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	11/2010 - 12/2999	1
88920A - PURIFIER ASSY, AIR
88920-50130	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	1
88920F - SERVO SUB-ASSY, DAMPER(FOR EXHAUST MODE)
87106-50500	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	1
88926 - FILTER, AIR PURIFIER
87139-5008079	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	1
88931 - SENSOR, SMOKE
88931-50040	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2009 - 12/2999	2
Common parts
90119-06018
90119-06833
90468-04177

USF45-AEZQH (2009)

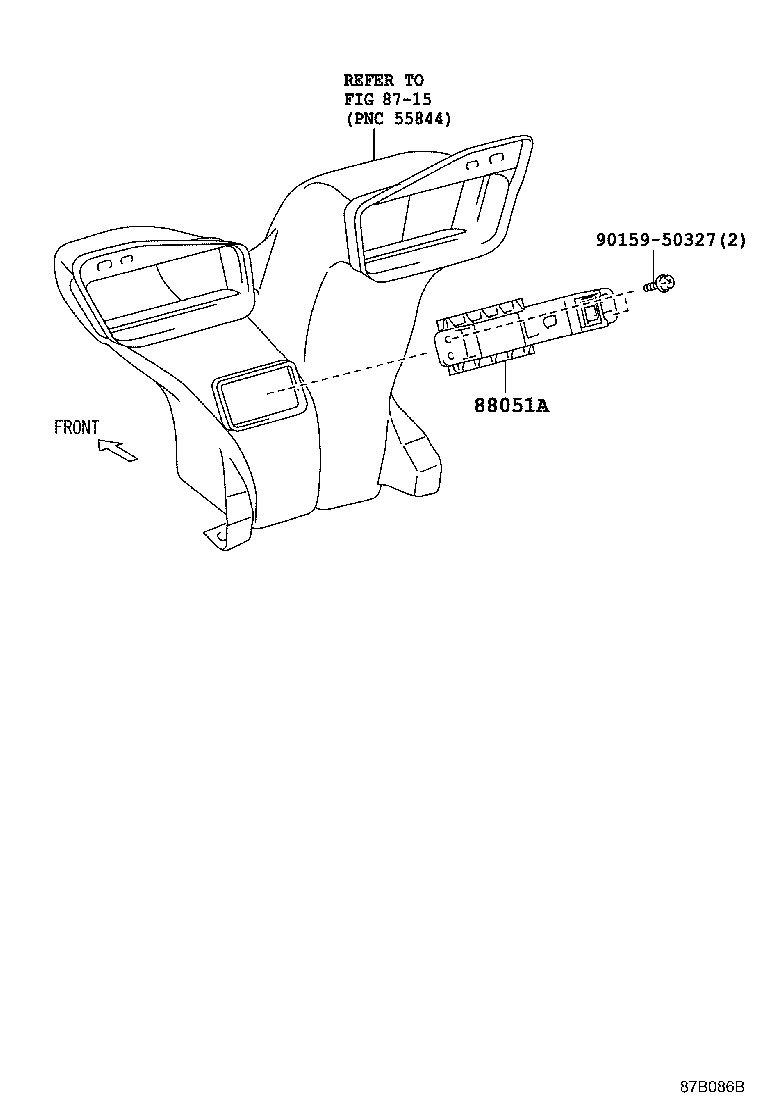

ILLUST NO. 1 OF 3(0909- )

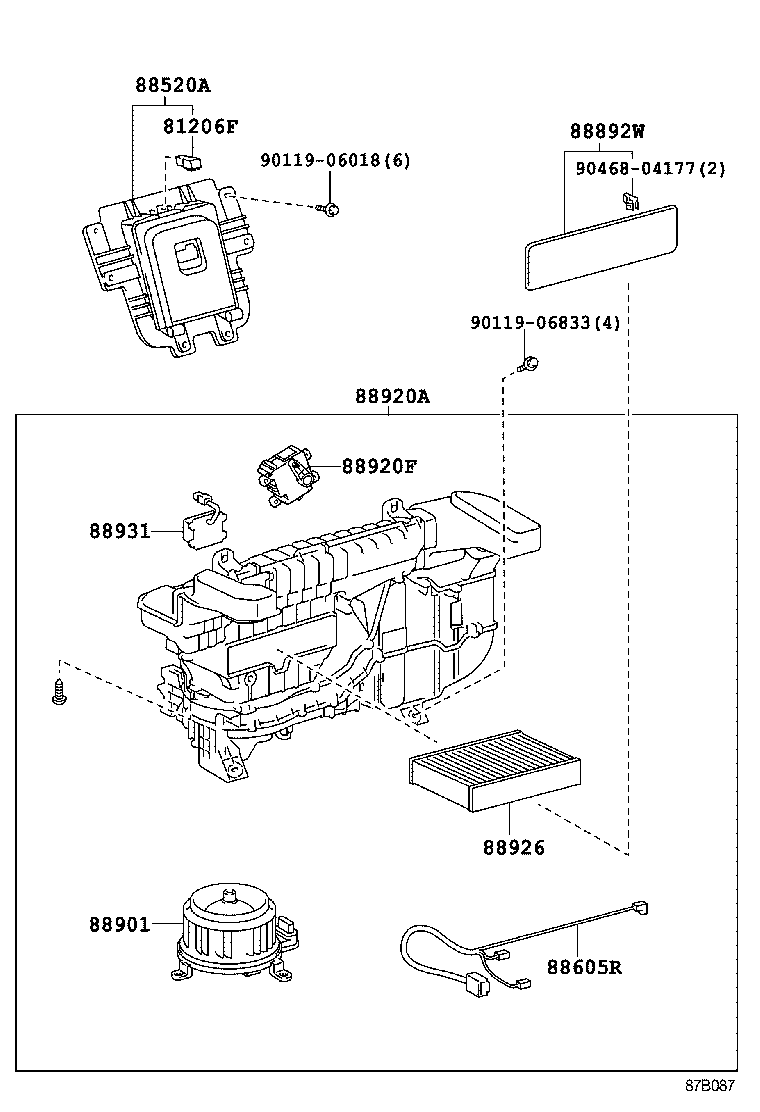

ILLUST NO. 2 OF 3(0909- )USF40,45
