USF45-AEZQH (2009)
Toyota Lexus Ls460/460l

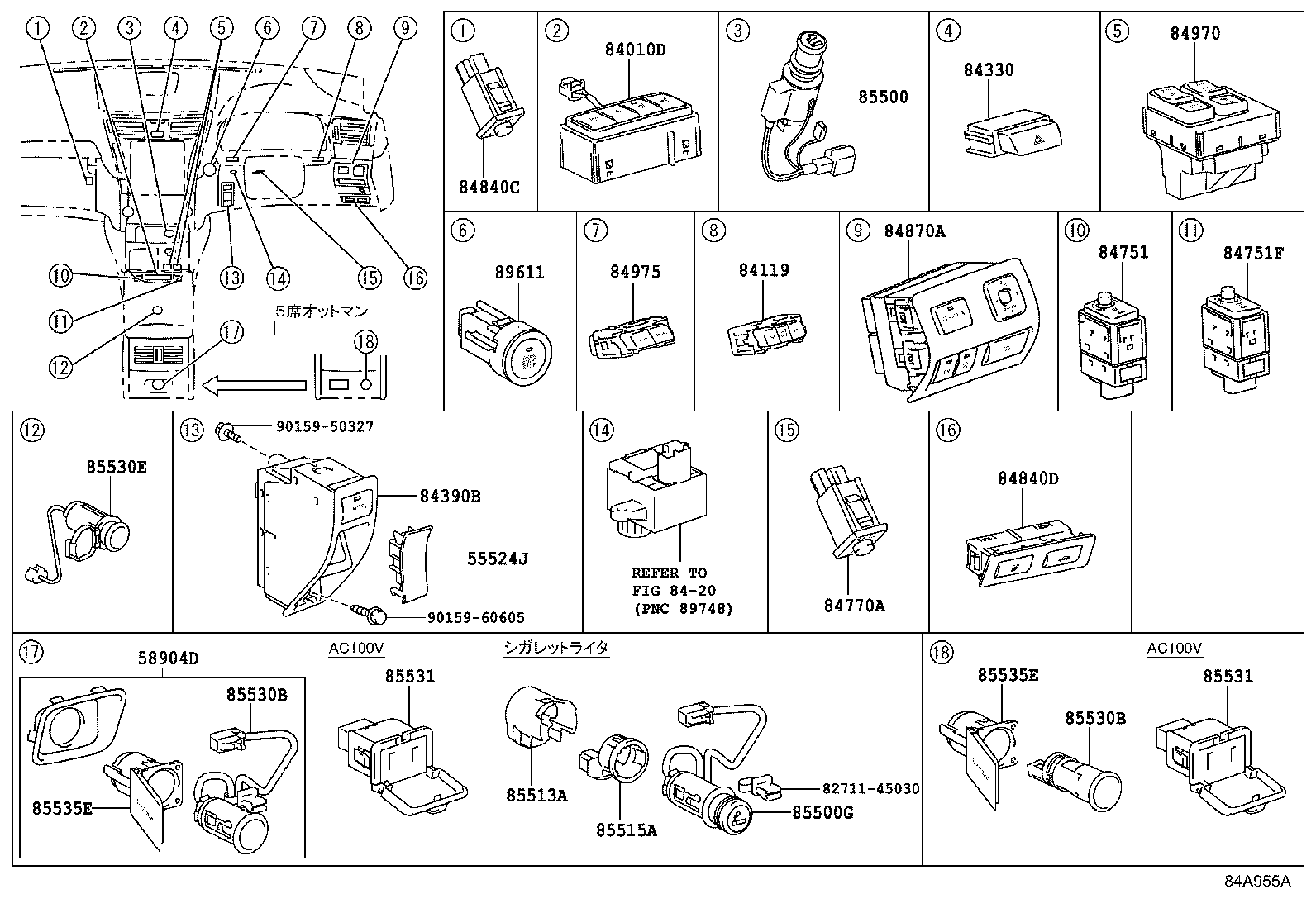

ILLUST NO. 5 OF 9(0909- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524J - COVER, SWITCH BASE HOLE | ||||
| 55539-50060C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 55539-50060A1 |
USF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 55539-50060A2 |
USF4# IVORY,TRIM00,06 |
1 | ||
| 58904D - PANEL SUB-ASSY, CONSOLE REAR END, NO.2 | ||||
| 58904-50050A1 |
USF4# IVORY,TRIM00,06 |
1 | ||
| 58904-50050A0 |
USF40,45 MELLOW WHITE,TRIM01,07 |
1 | ||
| 58904-50050C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50150 |
USF40,45 version U OR UI package&I PACKAGE |
1 | ||
| 84010-50150 |
USF40,45 version U OR UI package |
1 | ||
| 84010-50240 |
USF40,45 I PACKAGE |
1 | ||
| 84010-50190 |
USF40,45 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50260 |
USF4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-50060 |
USF4# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-50040C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 84390-50040A0 |
USF4# MELLOW WHITE,TRIM01,07 |
1 | ||
| 84390-50040A1 |
USF4# IVORY,TRIM00,06 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50131 |
USF40,45 ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ |
1 | ||
| 84751-50131 |
USF4# |
1 | ||
| 84751-50131 |
USF40,45 有り(*DRS:3ﾊﾟﾀｰﾝﾒﾓﾘ) |
1 | ||
| 84751-50131 |
USF40,45 VERSION C |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-50141 |
USF4# |
1 | ||
| 84751-50141 |
USF40,45 VERSION C |
1 | ||
| 84751-50141 |
USF40,45 ｼｰﾄ表皮−ﾌｧﾌﾞﾘｯｸ |
1 | ||
| 84751-50141 |
USF40,45 有り(*DRS:3ﾊﾟﾀｰﾝﾒﾓﾘ) |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-50010 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*MRT&*PB&*PSB) |
1 | ||
| 84770-50010 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*PB&*RPCS&*STC) |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
USF4# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-50041C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-50600A0 |
USF45 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MELLOW WHITE,TRIM01,07 |
1 | ||
| 84870-50600A1 |
USF45 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,IVORY,TRIM00,06 |
1 | ||
| 84870-50600C0 |
USF41,45,46 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 84870-50620C0 |
USF41,45,46 BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 84870-50620A0 |
USF45 MELLOW WHITE,TRIM01,07 |
1 | ||
| 84870-50600B0 |
USF45 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LT.GRAY,TRIM1# |
1 | ||
| 84870-50620A1 |
USF45 IVORY,TRIM00,06 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-50210 |
USF4# |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-50040 |
USF4# |
1 | ||
| 84975-50060 |
USF4# ﾅｲﾄﾋﾞｭｰ−歩行者検知機能付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50080 |
USF4# 灰皿−ﾌﾛﾝﾄ1個,ﾘﾔ2個 |
1 | ||
| 85500-50080 |
USF4# 灰皿−ﾌﾛﾝﾄ1個,ﾘﾔ2個&ｱｸｾｻﾘｺﾈｸﾀ−有り(ｼｶﾞﾚｯﾄﾗｲﾀ) |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50070 |
USF4# 灰皿−ﾌﾛﾝﾄ1個,ﾘﾔ2個&ｱｸｾｻﾘｺﾈｸﾀ−有り(ｼｶﾞﾚｯﾄﾗｲﾀ) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
USF4# 灰皿−ﾌﾛﾝﾄ1個,ﾘﾔ2個&ｱｸｾｻﾘｺﾈｸﾀ−有り(ｼｶﾞﾚｯﾄﾗｲﾀ) |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
USF4# 灰皿−ﾌﾛﾝﾄ1個,ﾘﾔ2個&ｱｸｾｻﾘｺﾈｸﾀ−有り(ｼｶﾞﾚｯﾄﾗｲﾀ) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-50070 |
USF4# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-50070 |
USF4# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-50060 |
USF4# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-50050A1 |
USF40,45 ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),MELLOW WHITE,TRIM01,07 |
1 | ||
| 85530-50050A2 |
USF40,45 ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),IVORY,TRIM00,06 |
1 | ||
| 85530-50050C0 |
USF4# ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-50050A1 |
USF40,45 ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),MELLOW WHITE,TRIM01,07 |
1 | ||
| 85530-50050A2 |
USF40,45 ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),IVORY,TRIM00,06 |
1 | ||
| 85530-50050C0 |
USF4# ｱｸｾｻﾘｺﾈｸﾀ−有り(AC100V/115V),BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50070A0 |
USF40,45 MELLOW WHITE,TRIM01,07 |
1 | ||
| 85535-50070A1 |
USF40,45 IVORY,TRIM00,06 |
1 | ||
| 85535-50070C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50070A0 |
USF40,45 MELLOW WHITE,TRIM01,07 |
1 | ||
| 85535-50070A1 |
USF40,45 IVORY,TRIM00,06 |
1 | ||
| 85535-50070C0 |
USF4# BLACK,TRIM2#,3#,4#,6# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-50040 |
USF4# |
1 | ||
| 89611-50013 |
USF4# |
1 | ||
| 89611-50011 |
USF4# |
1 | ||
| 89611-50012 |
USF4# |
1 | ||
| 89611-50014 |
USF4# |
1 | ||
| Common parts | ||||
| 82711-45030 | ||||
| 90159-50327 | ||||
| 90159-60605 | ||||
| Linked diagrams | ||||
| 8420 | ||||

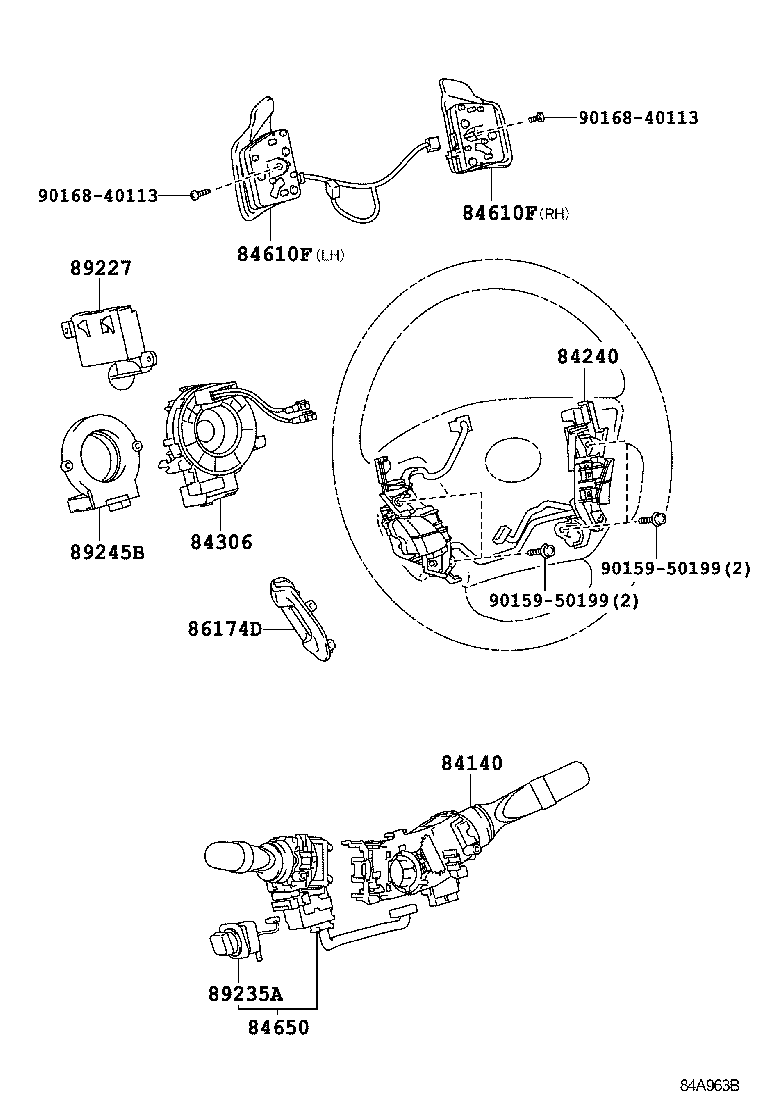

ILLUST NO. 6 OF 9(0909- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50150 |
USF4# 寒冷地仕様 |
1 | ||
| 84140-50140 |
USF4# |
1 | ||
| 84240 - SWITCH ASSY, STEERING PAD, W/MODULATOR | ||||
| 84240-50130 |
USF4# ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA) |
1 | ||
| 84240-50140 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*MRT&*PB&*PSB) |
1 | ||
| 84240-50080 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*MRT&*PB&*PSB)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA) |
1 | ||
| 84240-50160 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*PB&*RPCS&*STC) |
1 | ||
| 84240-50090 |
USF4# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*PB&*RPCS&*STC)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*IPA) |
1 | ||
| 84240-50150 |
USF4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-50200 |
USF41,45,46 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50160 |
USF4# |
1 | ||
| 86174D - CASE, SWITCH & VOLUME | ||||
| 86174-50070C0 |
USF4# BLACK,TRIM1#,2#,3#,4#,6# |
1 | ||
| 86174-50070E0 |
USF4# ORCHID BROWN,TRIM0# |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-50130 |
USF4# |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
USF4# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30070 |
USF4# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
