USF45-AEZQH (2008)

Toyota Lexus Ls460/460l

Production Sep 2008 - Sep 2009
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0608-0909)

Click highlighted areas on diagram

ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ

diagram 5701 5812550010 5812550010 5812650010 5812650010 58136A 58136A 58136A 58136A 58137A 58137A 58137A 58137A 58165B 58165B 58166 58166 58177A 58178A 9010906375 9010906375 9010906375 9010906375 9010906375 9010906375 9010906375 9010906375 9017906083 9017906083 9017906083 9017906083 9046710162 9046710162 9046710162 9046710162 9048010024 9048010024 9048010024 9048010024 9056110021 9056110021 9056110021 9056110021
Part # Description Qty Price
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-50030

USF4#

 2
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-50030

USF4#

 2
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-50030

USF4#

 2
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-50030

USF4#

 2
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58165B - COVER, FRONT FLOOR, RH
58165-50023

USF40,45

 1
58165B - COVER, FRONT FLOOR, RH
58165-50023

USF40,45

 1
58166 - COVER, FRONT FLOOR, LH
58166-50023

USF40,45

 1
58166 - COVER, FRONT FLOOR, LH
58166-50023

USF40,45

 1
Common parts
58125-50010
58126-50010
90109-06375
90179-06083
90467-10162
90480-10024
90561-10021
Linked diagrams
5701

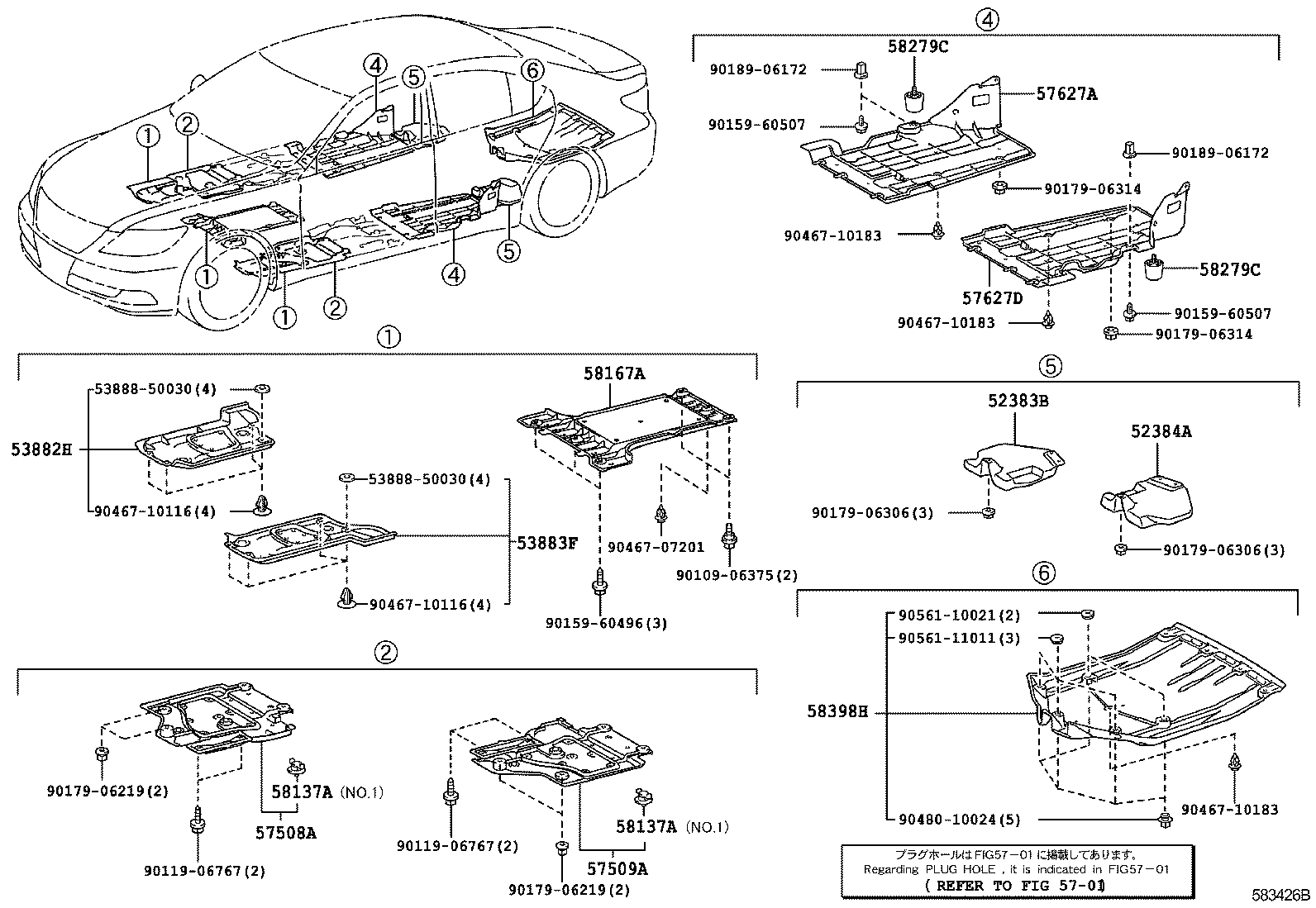

ILLUST NO. 2 OF 3(0809- )USF45,46

Click highlighted areas on diagram

ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ

diagram 52383B 52384A 53882H 53883F 5388850030 5388850030 5701 57508A 57509A 57627A 57627D 58137A 58137A 58167A 58279C 58279C 58398H 9010906375 9011906767 9011906767 9015960496 9015960507 9015960507 9017906219 9017906219 9017906306 9017906306 9017906314 9017906314 9018906172 9018906172 9046707201 9046710116 9046710116 9046710183 9046710183 9046710183 9048010024 9056110021 9056111011
Part # Description Qty Price
52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1
52383-50020

USF4#

 1
52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2
52384-50020

USF4#

 1
53882H - SEAL, FRONT FENDER MAIN, RH
53882-50032

USF4#

 1
53883F - SEAL, FRONT FENDER MAIN, LH
53883-50022

USF4#

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-50010

USF45,46

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57509-50010

USF45,46

 1
57627A - COVER, REAR FLOOR SIDE MEMBER, RH
57627-50020

USF4#

 1
57627D - COVER, REAR FLOOR SIDE MEMBER
57628-50030

USF4#

 1
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58137A - SEAL, FRONT FLOOR HOLE
58137-50011

USF4#

NO.1

 2
58137-50011

USF4#

NO.2

 6
58167A - COVER, FRONT FLOOR, CENTER
58167-50020

USF45,46

 1
58279C - PROTECTOR, FUEL TANK, UPPER NO.2
58279-50050

USF4#

 2
58279C - PROTECTOR, FUEL TANK, UPPER NO.2
58279-50050

USF4#

 2
58398H - COVER, FLOOR UNDER, NO.1
58398-50010

USF4#

 1
Common parts
53888-50030
90109-06375
90119-06767
90159-60496
90159-60507
90179-06219
90179-06306
90179-06314
90189-06172
90467-07201
90467-10116
90467-10183
90480-10024
90561-10021
90561-11011
Linked diagrams
5701
