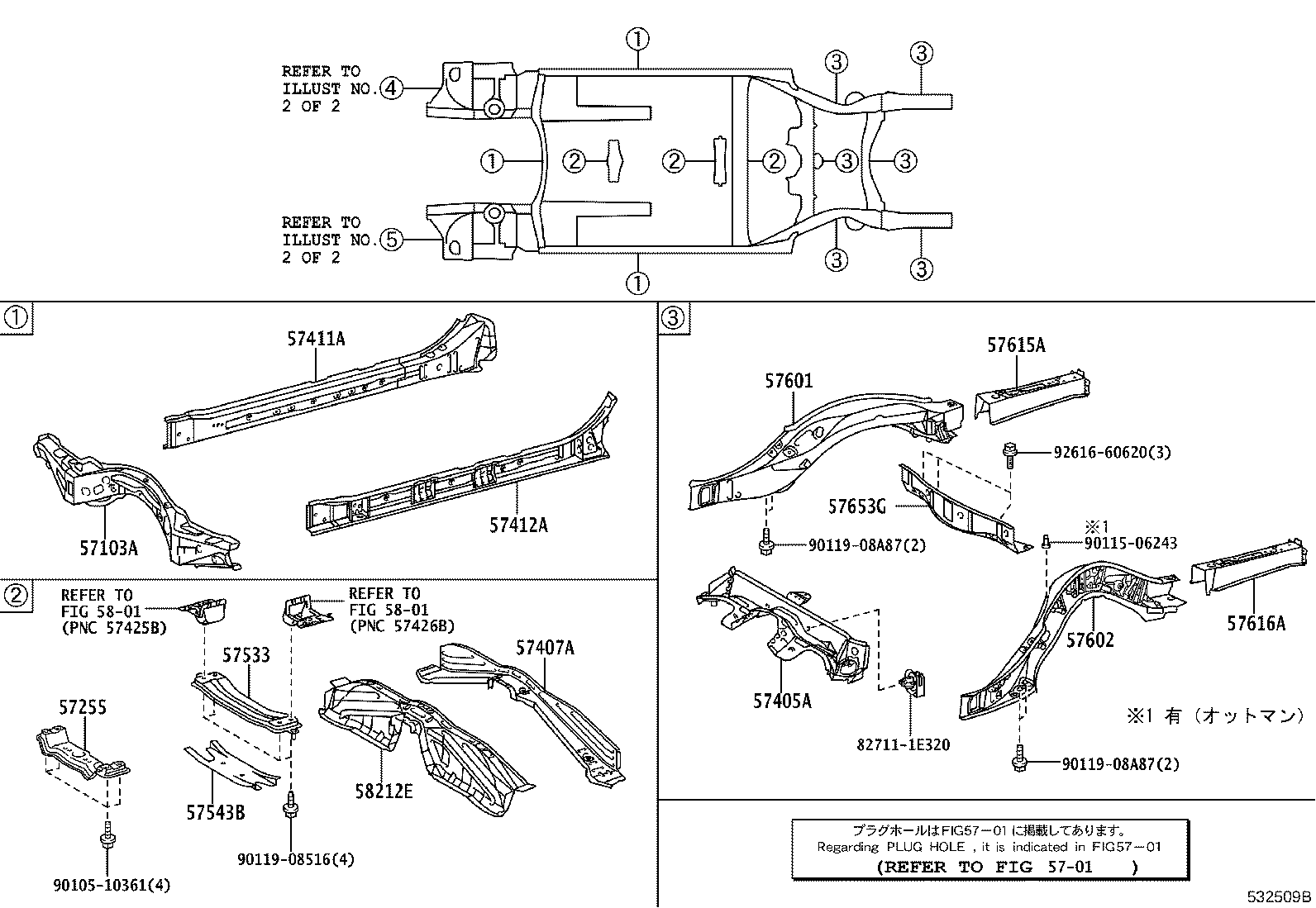

Toyota Lexus ls460/460l USF45 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3
57103-50060	USF45,46	09/2008 - 09/2009	1
57255 - MEMBER, ENGINE REAR MOUNTING
57209-50010	USF45,46	09/2008 - 09/2009	1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-50020	USF4#	09/2008 - 09/2009	1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-50060	USF4#	09/2008 - 09/2009	1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-50061	USF40,45	09/2008 - 09/2009	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-50051	USF40,45	09/2008 - 09/2009	1
57533 - BRACE, FRONT FLOOR, CENTER
57533-50020	USF4#	09/2008 - 09/2009	1
57543B - BRACE, CENTER FLOOR, NO.1
57543-50010	USF4#	09/2008 - 09/2009	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-50907	USF4#	09/2008 - 09/2009	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-50907	USF4#	09/2008 - 09/2009	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-50906	USF4#	09/2008 - 09/2009	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-50906	USF4#	09/2008 - 09/2009	1
57653G - MEMBER, REAR FLOOR CROSS, NO.2
57653-50901	USF4#	09/2008 - 09/2009	1
58212E - PAN, CENTER FLOOR, FRONT
58202-50020	USF40,45 version U or version UI package	09/2008 - 09/2009	1
58202-50010	USF40,45	09/2008 - 09/2009	1
Common parts
82711-1E320
90105-10361
90115-06243
90119-08516
90119-08A87
92616-60620
Linked diagrams
5701
5801

USF45-AEZQH (2008)
