Toyota Lexus ls460/460l USF40 AIR PURIFIER OR ION GENERATOR

Part #	Description	Period	Qty

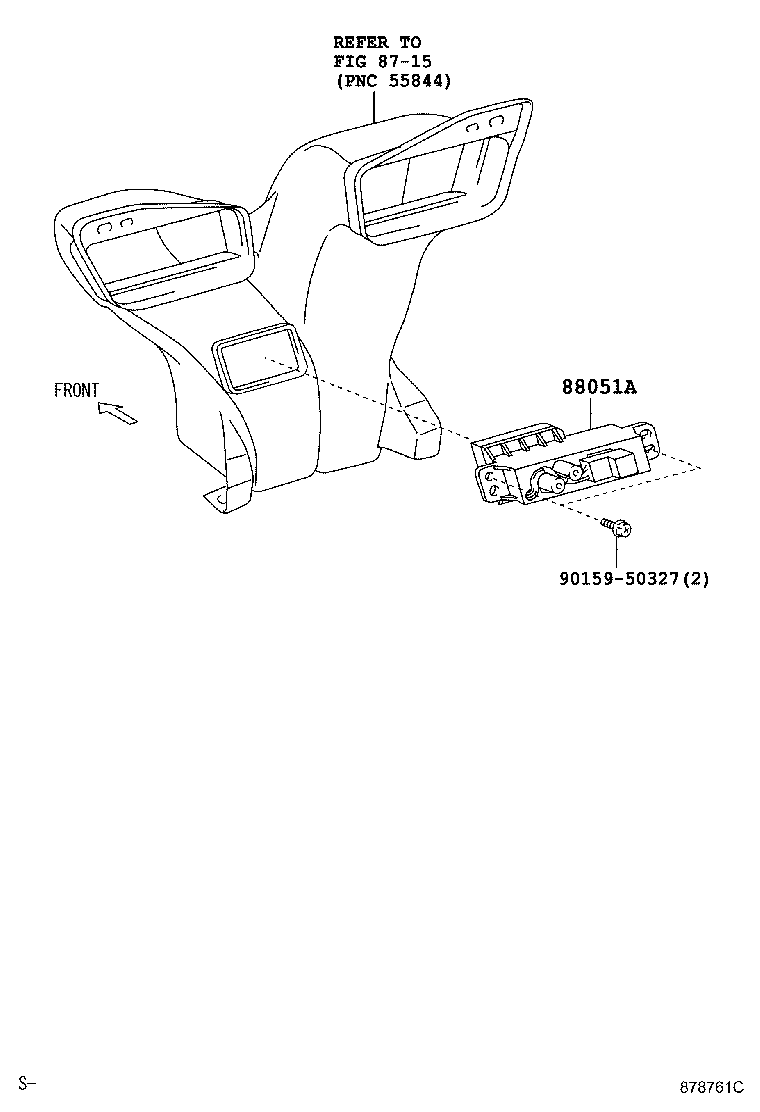

88051A - GENERATOR SUB-ASSY,ION
88051-22010	USF40	08/2006 - 09/2008	1
88051-22010	USF4#	09/2008 - 09/2009	1
Common parts
90159-50327
Linked diagrams
8715

Part #	Description	Period	Qty

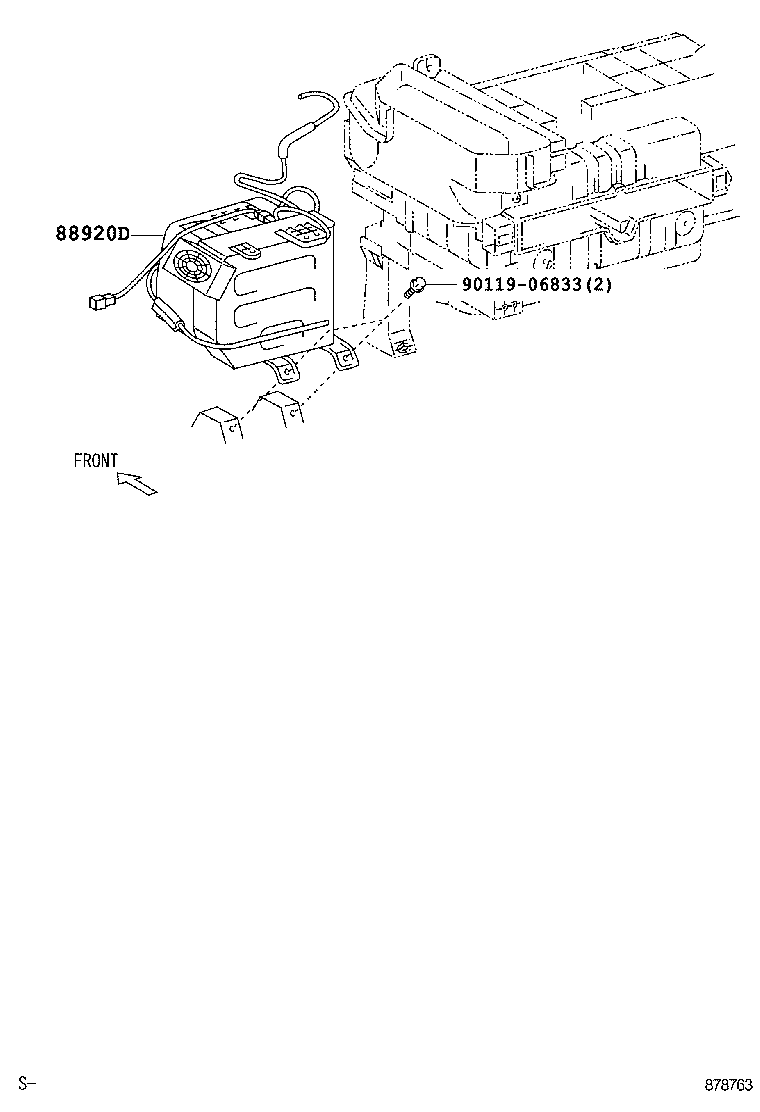

88920D - ENRICHER ASSY, OXYGEN
88920-50080	USF40 酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
88920-50120	USF4# 酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1
Common parts
90119-06833

Part #	Description	Period	Qty
81206F - LAMP SUB-ASSY, COOLING BOX
81080-50030	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
81080-50030	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
81080-50030	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
81080-50030	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1

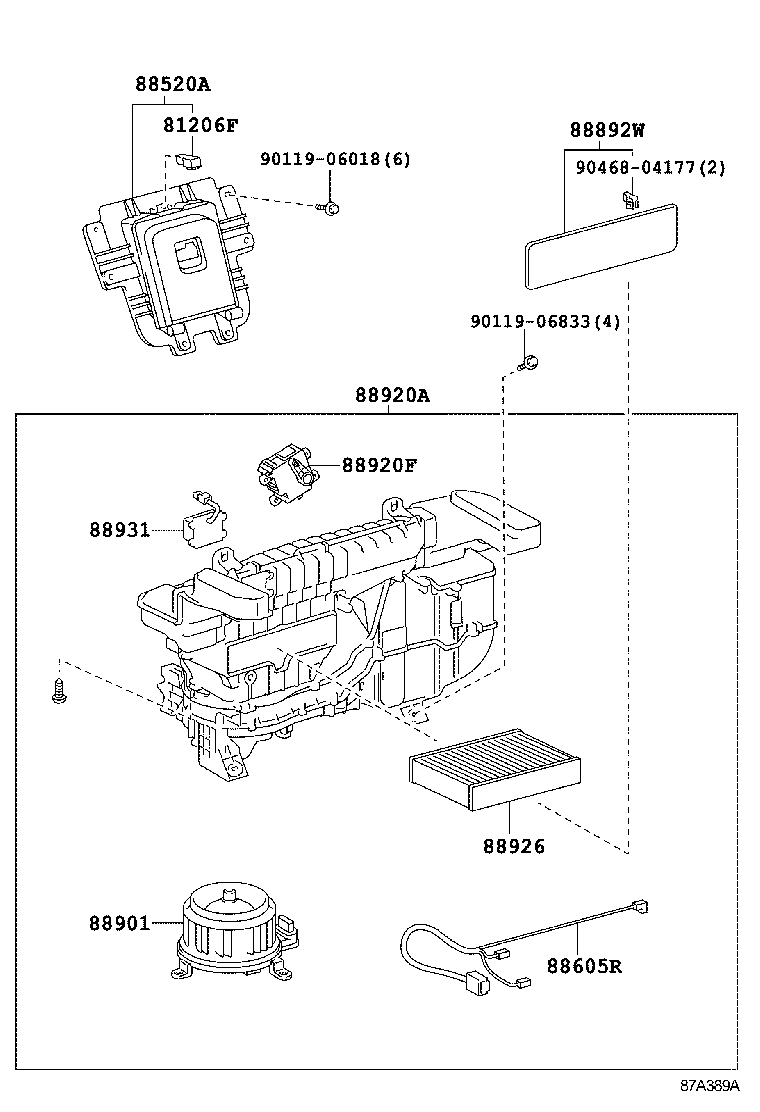

88520A - BOX ASSY, COOLING
88520-50060A1	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,MELLOW WHITE,TRIM01,07	08/2006 - 09/2008	1
88520-50060C0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,BLACK,TRIM20,21	08/2006 - 09/2008	1
88520-50060A0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,IVORY,TRIM00,06	08/2006 - 09/2008	1
88520-50100A0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,IVORY,TRIM00,06	09/2008 - 09/2009	1
88520-50100A0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,IVORY,TRIM00,06	09/2008 - 09/2009	1
88520-50060B0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,LT.GRAY,TRIM10,11	08/2006 - 09/2008	1
88520-50100B0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,LT.GRAY,TRIM1#	09/2008 - 09/2009	1
88520-50100A1	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,MELLOW WHITE,TRIM01,07	09/2008 - 09/2009	1
88520-50060B0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,LT.GRAY,TRIM10,11	08/2006 - 09/2008	1
88520-50100A1	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,MELLOW WHITE,TRIM01,07	09/2008 - 09/2009	1
88520-50100C0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り,BLACK,TRIM2#	09/2008 - 09/2009	1
88520-50060A1	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,MELLOW WHITE,TRIM01,07	08/2006 - 09/2008	1
88520-50060A0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,IVORY,TRIM00,06	08/2006 - 09/2008	1
88520-50100C0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,BLACK,TRIM2#	09/2008 - 09/2009	1
88520-50100B0	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,LT.GRAY,TRIM1#	09/2008 - 09/2009	1
88520-50060C0	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り,BLACK,TRIM20,21	08/2006 - 09/2008	1
88605R - HARNESS SUB-ASSY, AIR PURIFIER
82212-50060	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
82212-50060	USF40 寒冷地仕様&ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
82212-50120	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
82212-50120	USF40,45 寒冷地仕様&ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
88892W - COVER, AIR PURIFIER
88891-50080	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
88891-50100	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1
88891-50080	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
88891-50100	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
87103-50120	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
87103-50130	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
87103-50130	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1
87103-50120	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
88920A - PURIFIER ASSY, AIR
88920-50110	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
88920-50110	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1
88920-50070	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
88920-50070	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
88920F - SERVO SUB-ASSY, DAMPER(FOR EXHAUST MODE)
87106-50460	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
87106-50500	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	1
87106-50460	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
87106-50500	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	1
88926 - FILTER, AIR PURIFIER
87139-5005079	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	1
87139-5008079	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 12/2999	1
87139-5008079	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 12/2999	1
87139-5005079	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	1
88931 - SENSOR, SMOKE
88931-50040	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	09/2008 - 09/2009	2
88931-50040	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	08/2006 - 09/2008	2
88931-50040	USF40 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り	08/2006 - 09/2008	2
88931-50040	USF40,45 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り&酸素濃度ｺﾝﾃﾞｨｼｮﾅ−有り	09/2008 - 09/2009	2
Common parts
90119-06018
90119-06833
90468-04177

USF40-AEZQH (2008)

ILLUST NO. 1 OF 3(0608-0909)

ILLUST NO. 3 OF 3(0608-0909)

ILLUST NO. 2 OF 3(0809-0909)USF40,45
