USF40-AEZQH (2006)

Toyota Lexus Ls460/460l

Production Aug 2006 - Sep 2008
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0608-0909)

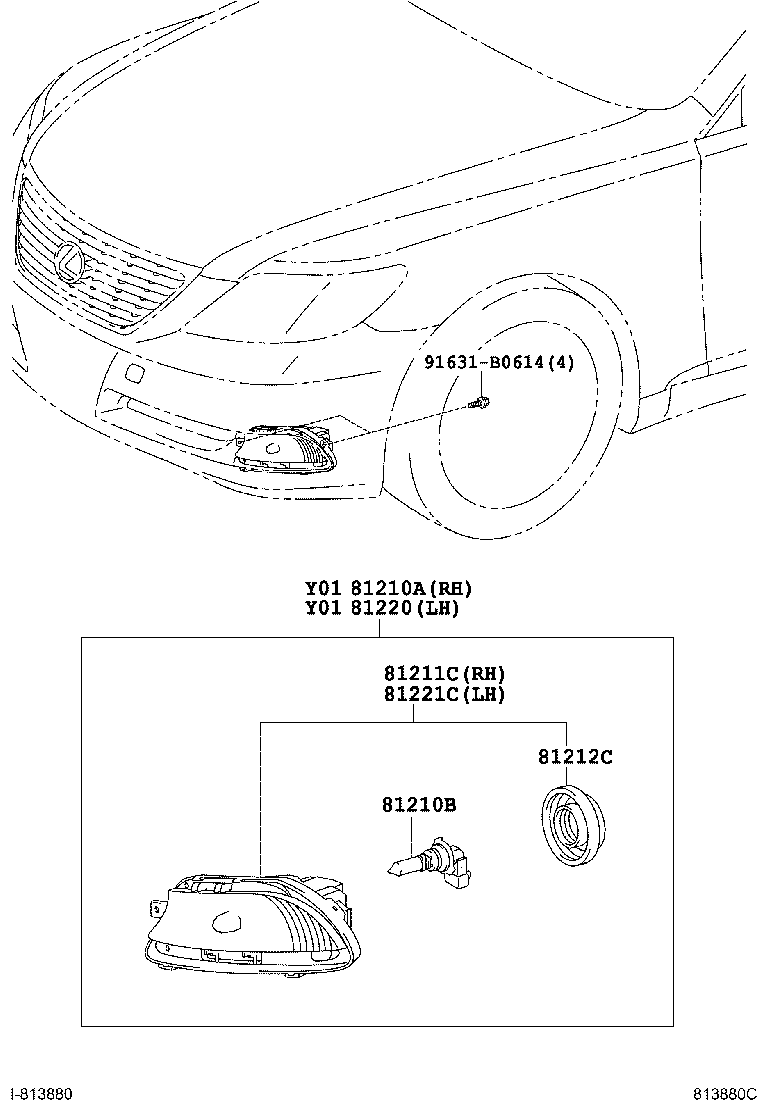

Click highlighted areas on diagram

diagram 81210A 81210B 81211C 81212C 81220 81221C 91631B0614
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-50090

USF40

 1
81210B - BULB, FOG LAMP
90981-1304779

USF40

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-50090

USF40

 1
81212C - COVER, FOG LAMP
90075-65010

USF40

 2
81220 - LAMP ASSY, FOG, LH
81220-50090

USF40

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-50090

USF40

 1
Common parts
91631-B0614
