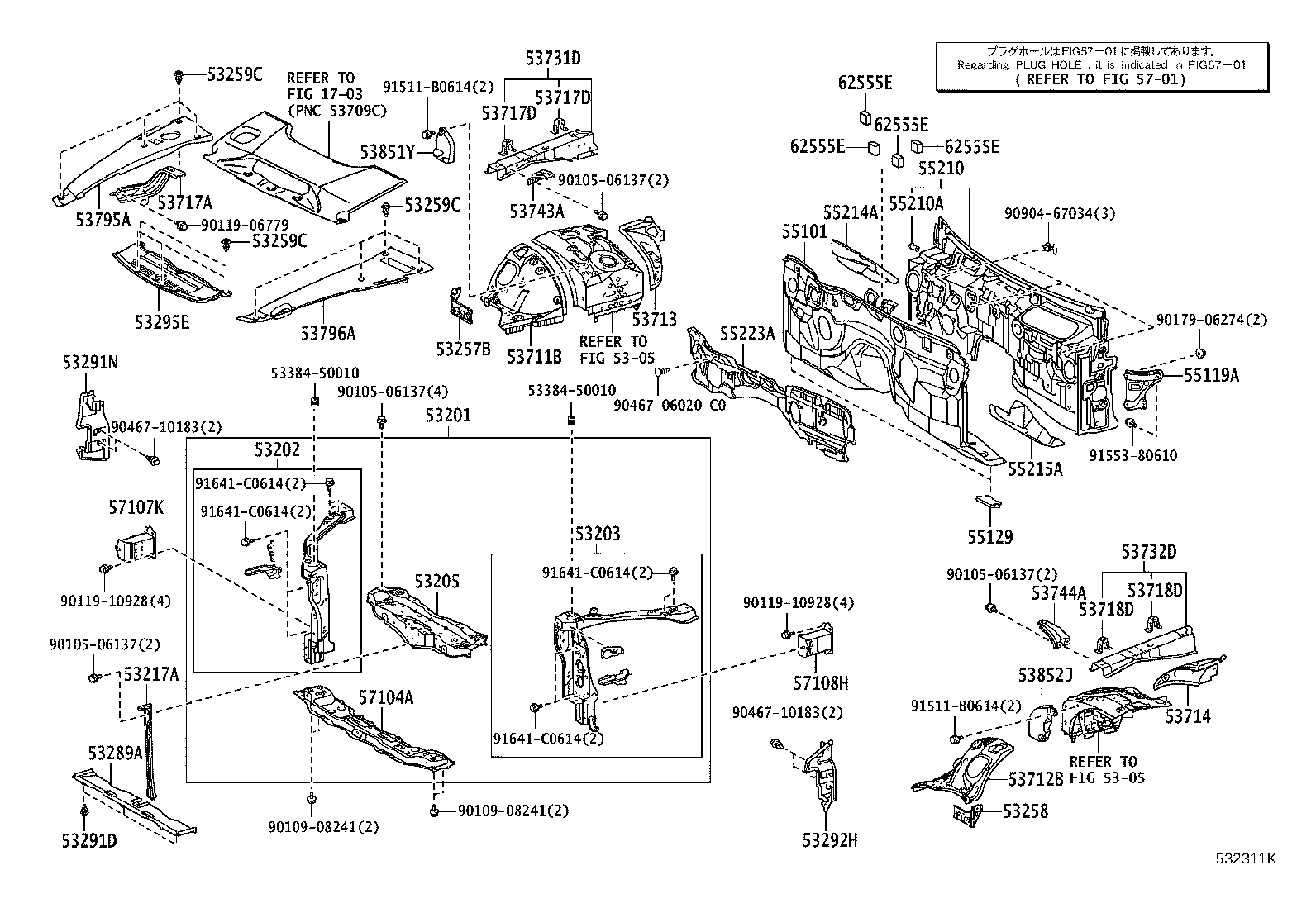

Toyota Lexus ls460/460l USF40 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-50080	USF40	08/2006 - 09/2008	1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-50901	USF40	08/2006 - 09/2008	1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-50901	USF40	08/2006 - 09/2008	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-50060	USF40	08/2006 - 09/2008	1
53217A - BRACE, HOOD LOCK SUPPORT
53205-50060	USF40	08/2006 - 09/2008	1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-50030	USF40	08/2006 - 09/2008	1
53258 - BRACKET, FRONT END PANEL MOUNTING, LH
53258-50030	USF40	08/2006 - 09/2008	1
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07211	USF40	08/2006 - 09/2008	12
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07211	USF40	08/2006 - 09/2008	12
53259C - CLIP, RADIATOR SUPPORT TO FRAME SEAL
90467-07211	USF40	08/2006 - 09/2008	12
53289A - COVER, RADIATOR SUPPORT OPENING
53289-50060	USF40	08/2006 - 09/2008	1
53291D - CLIP, RADIATOR SUPPORT TO FRAME
90467-07201	USF40	08/2006 - 09/2008	3
53291N - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-50050	USF40	08/2006 - 09/2008	1
53292H - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-50050	USF40	08/2006 - 09/2008	1
53295E - SEAL, COOL AIR INTAKE DUCT
53295-50030	USF40	08/2006 - 09/2008	1
53711B - APRON, FRONT FENDER, FRONT RH
53707-50010	USF40	08/2006 - 09/2008	1
53712B - APRON, FRONT FENDER, FRONT LH
53708-50010	USF40	08/2006 - 09/2008	1
53713 - APRON, FENDER SIDE, RH
53713-50040	USF40	08/2006 - 09/2008	1
53714 - APRON, FENDER SIDE, LH
53714-50040	USF40	08/2006 - 09/2008	1
53717A - PLATE, FENDER APRON
53717-50040	USF40	08/2006 - 09/2008	1
53717D - GUSSET, FENDER APRON, RH
53718-50020	USF40	08/2006 - 09/2008	2
53717D - GUSSET, FENDER APRON, RH
53718-50020	USF40	08/2006 - 09/2008	2
53718D - GUSSET, FENDER APRON, LH
53718-50020	USF40	08/2006 - 09/2008	2
53718D - GUSSET, FENDER APRON, LH
53718-50020	USF40	08/2006 - 09/2008	2
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53705-50010	USF40	08/2006 - 09/2008	1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53706-50010	USF40	08/2006 - 09/2008	1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-50040	USF40	08/2006 - 09/2008	1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-50040	USF40	08/2006 - 09/2008	1
53795A - COVER, ENGINE ROOM, SIDE
53795-50060	USF40	08/2006 - 09/2008	1
53796A - COVER, ENGINE ROOM SIDE, LH
53796-50030	USF40	08/2006 - 09/2008	1
53851Y - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53853-50010	USF40	08/2006 - 09/2008	1
53852J - PAD, FRONT WHEEL OPENING EXTENSION, LH
53855-50010	USF40	08/2006 - 09/2008	1
55101 - PANEL SUB-ASSY, DASH
55101-50110	USF40	08/2006 - 09/2008	1
55119A - EXTENSION, DASH PANEL, LH
55119-50010	USF40	08/2006 - 09/2008	1
55129 - COVER, DASH PANEL HOLE
55129-50010	USF40 右側	08/2006 - 09/2008	1
55139-50020	USF40 左側	08/2006 - 09/2008	1
55210 - INSULATOR ASSY, DASH PANEL
55210-50120	USF40	08/2006 - 09/2008	1
55210A - CLIP
90467-13079	USF40	08/2006 - 09/2008	4
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-50070	USF40	08/2006 - 09/2008	1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-50031	USF40	12/2006 - 09/2008	1
55215-50030	USF40	08/2006 - 12/2006	1
55223A - INSULATOR, DASH PANEL, OUTER
55223-50100	USF40	08/2006 - 09/2008	1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-50090	USF40	08/2006 - 09/2008	1
57107K - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57107-50030	USF40	08/2006 - 09/2008	1
57108H - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
57107-50030	USF40	08/2006 - 09/2008	1
62555E - PAD, PILLAR, NO.5
62555-89101	USF40	08/2006 - 09/2008	4
62555E - PAD, PILLAR, NO.5
62555-89101	USF40	08/2006 - 09/2008	4
62555E - PAD, PILLAR, NO.5
62555-89101	USF40	08/2006 - 09/2008	4
62555E - PAD, PILLAR, NO.5
62555-89101	USF40	08/2006 - 09/2008	4
Common parts
53384-50010
90105-06137
90109-08241
90119-06779
90119-10928
90179-06274
90467-06020C0
90467-10183
90904-67034
91511-B0614
91553-80610
91641-C0614
Linked diagrams
1703
5305
5701

USF40-AEZQH (2006)

(0608- )
