LFA10-FCRAF (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

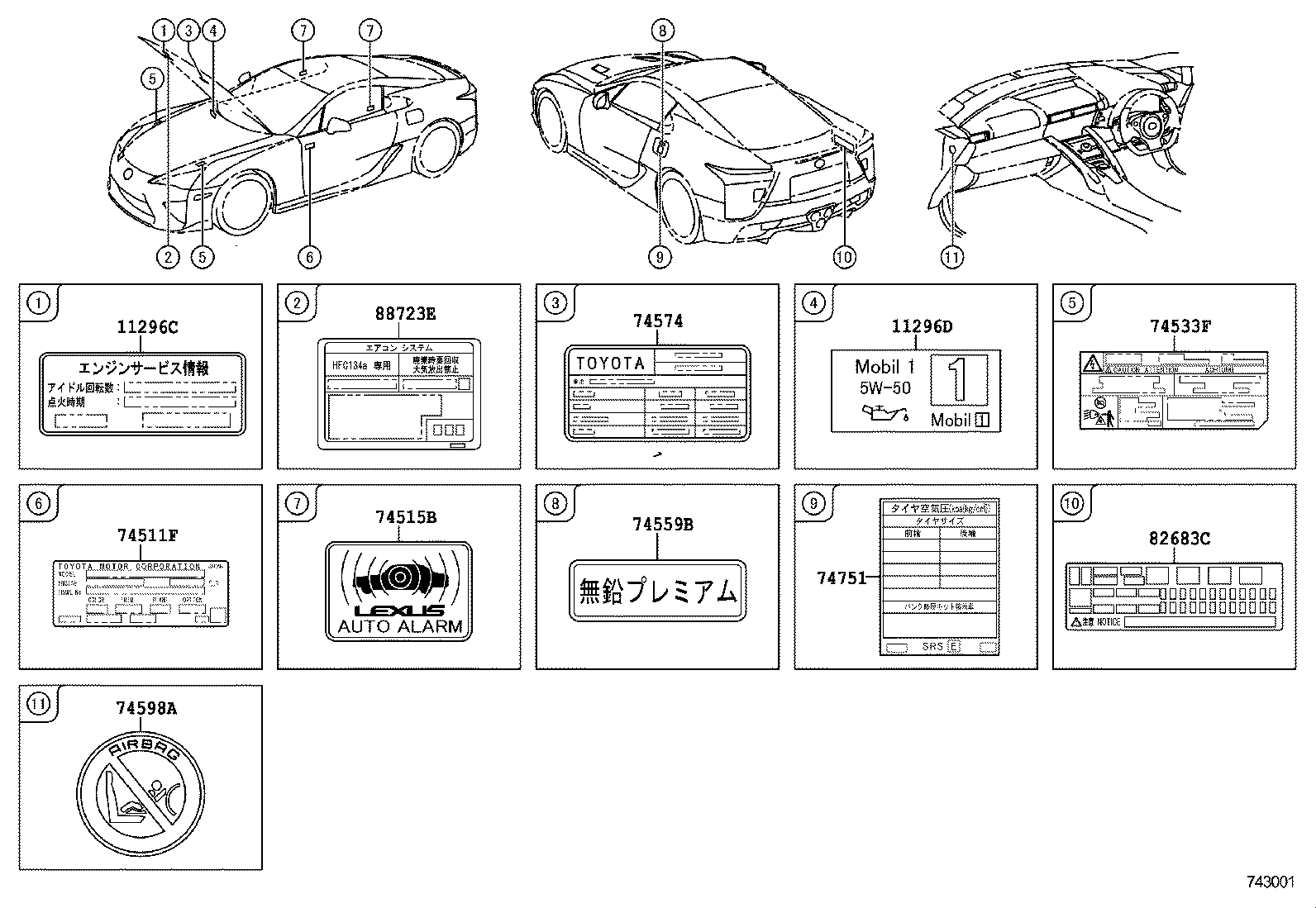

Click highlighted areas on diagram

diagram 11296C 11296D 74511F 74515B 74533F 74559B 74574 74598A 74751 82683C 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-45010

1LRGUE..LFA10

 1
11296D - LABEL, ENGINE SERVICE INFORMATION
11296-45020

1LRGUE..LFA10

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

LFA10

*111

 1
74515B - PLATE, THEFT WARNING
74515-30040

LFA10

 2
74533F - LABEL, HEADLAMP VOLTAGE CAUTION
74533-47010

LFA10

 2
74559B - LABEL, FUEL INFORMATION
74579-24010

LFA10

 1
74574 - PLATE, NOISE IDENTIFICATION
74574-77010

LFA10

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-20010

LFA10

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ−革巻き&ｶｰﾎﾞﾝ

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-77030

LFA10

 1
82683C - LABEL, FUSE BLOCK NOTICE
82683-77010

LFA10

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-77060

LFA10

 1
