URZ100-AKUBH (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

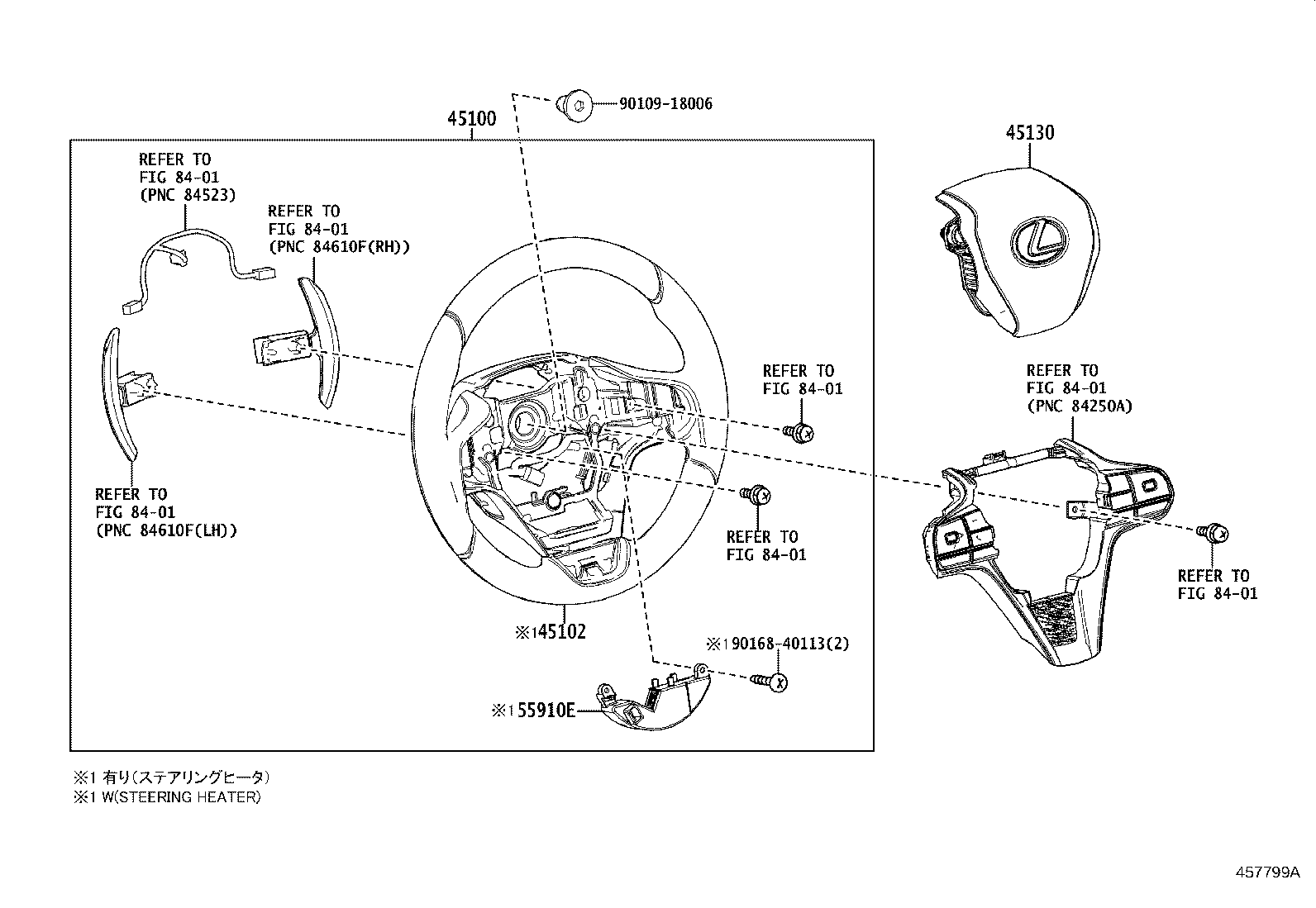

Click highlighted areas on diagram

diagram 45100 45102 45130 55910E 8401 8401 8401 8401 8401 8401 8401 9010918006 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-11020E5

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),OCHER,TRIM4#

 1
45100-11030A2

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,WHITE,TRIM0#

 1
45100-11030E5

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,OCHER,TRIM4#

 1
45100-11020C4

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),BLACK,TRIM2#,3#

 1
45100-11030C4

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#,3#

 1
45100-11020A2

URZ100

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE,TRIM0#

 1
45102 - WHEEL SUB-ASSY, STEERING
45111-11010C3

URZ100

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),BLACK,TRIM2#,3#

 1
45111-11010E3

URZ100

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),OCHER,TRIM4#

 1
45111-11010A2

URZ100

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-11010E2

URZ100

OCHRE,TRIM4#

 1
45130-11010C2

URZ100

BLACK,TRIM2#,3#

 1
45130-11010A1

URZ100

WHITE,TRIM0#

 1
55910E - CONTROL ASSY, STEERING WHEEL HEATER
55910-11010

URZ100

ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻き,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)

 1
Common parts
90109-18006
90168-40113
Linked diagrams
8401
