URZ100-AKUBH (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

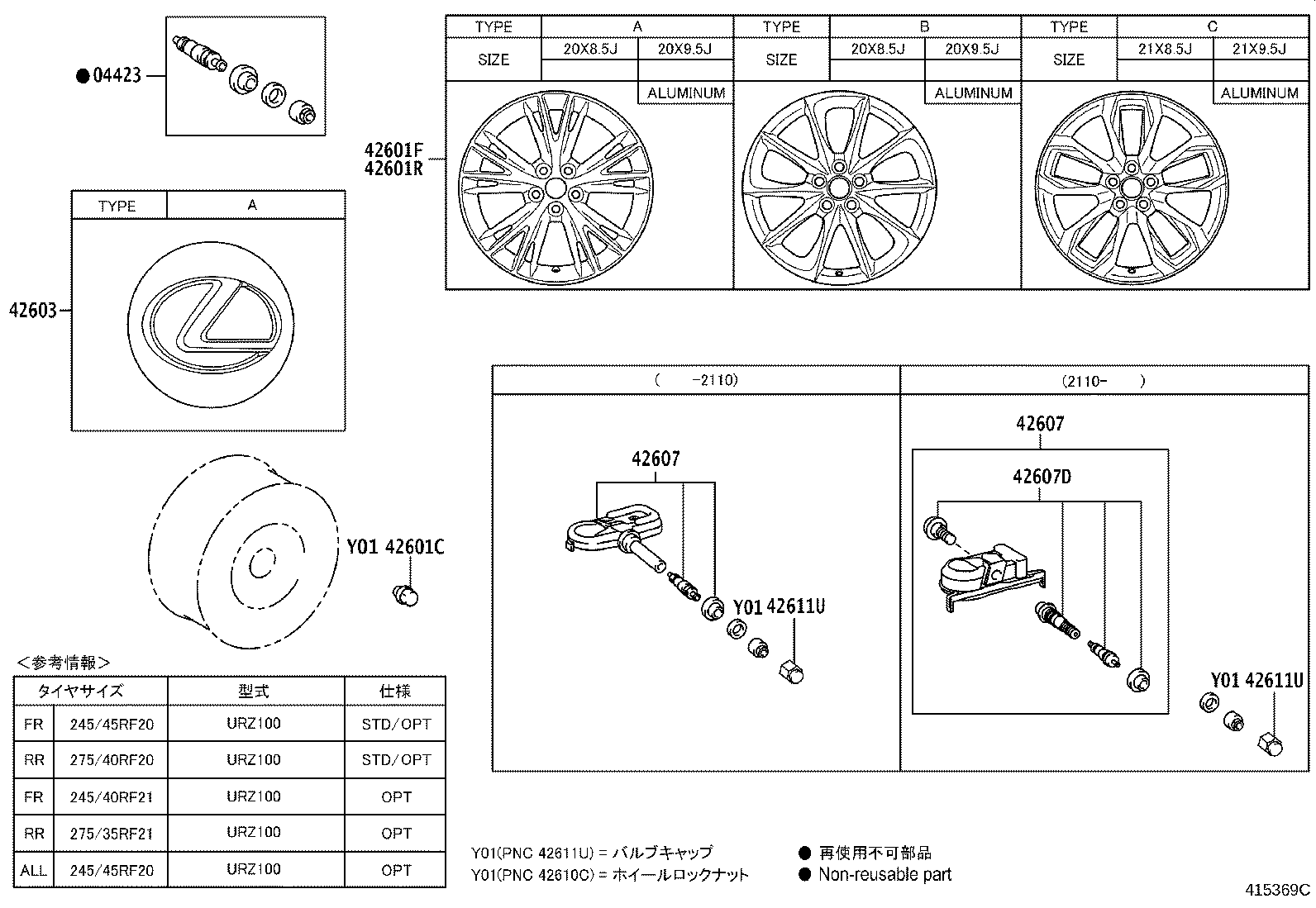

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
URZ100 |
4 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01118 |
URZ100 |
20 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-11040 |
URZ100 20X8.5J,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 4261A-11010 |
URZ100 20X8.5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−245/45RF20 & 275^40RF20,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42611-11140 |
URZ100 21X8.5J,ﾌﾞﾗｯｸ塗装,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−245/40RF21普@275/35RF21,TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-11040 |
URZ100 20X8.5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−245/45RF20 & 245^45RF20,切削光輝,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42611-11170 |
URZ100 21X9.5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−245/40RF21 & 275^35RF21,TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 4261A-11020 |
URZ100 20X9.5J,#,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−245/45RF20 & 275^40RF20,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 42611-11060 |
URZ100 20X9.5J,#,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-53110 |
URZ100 *ALU,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-48010 |
URZ100 |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-48010 |
URZ100 |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05042 |
URZ100 |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05042 |
URZ100 |
4 | ||
ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
