URZ100-ACUBH (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

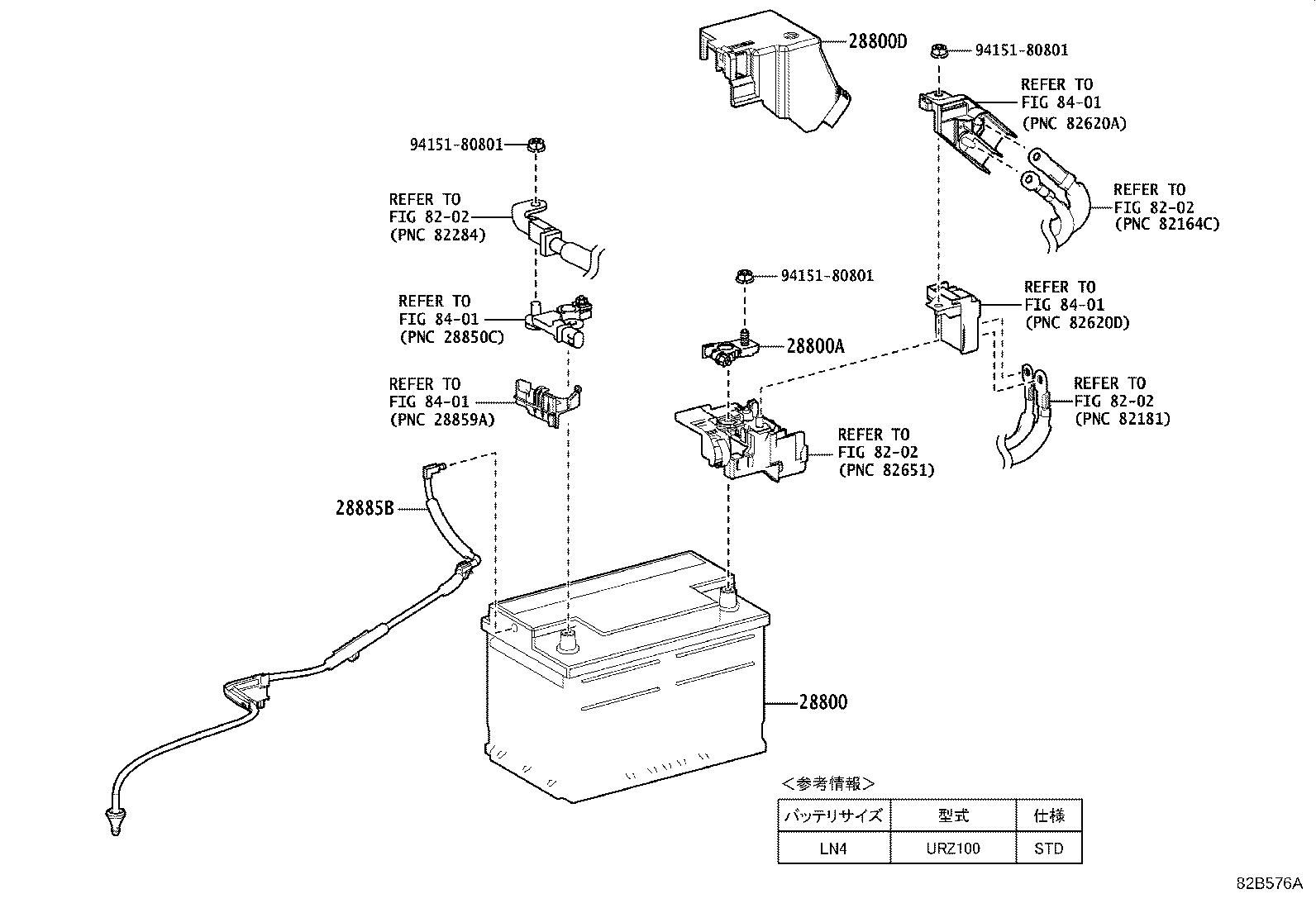

ILLUST NO. 1 OF 5(1703- )URZ100

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28885B 8202 8202 8202 8202 8401 8401 8401 8401 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-31540

2URGSE..URZ100

LN4

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

8GRFXS,2URGSE..GWZ100,URZ100

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50730

8GRFXS,2URGSE..GWZ100,URZ100

 1
28885B - HOSE, BATTERY
28885-38020

8GRFXS,2URGSE..GWZ100,URZ100

 1
Common parts
94151-80801
Linked diagrams
8202
8401
