GWZ100-ACVBB (2017)
Toyota Lexus Lc500/500h(Cp)

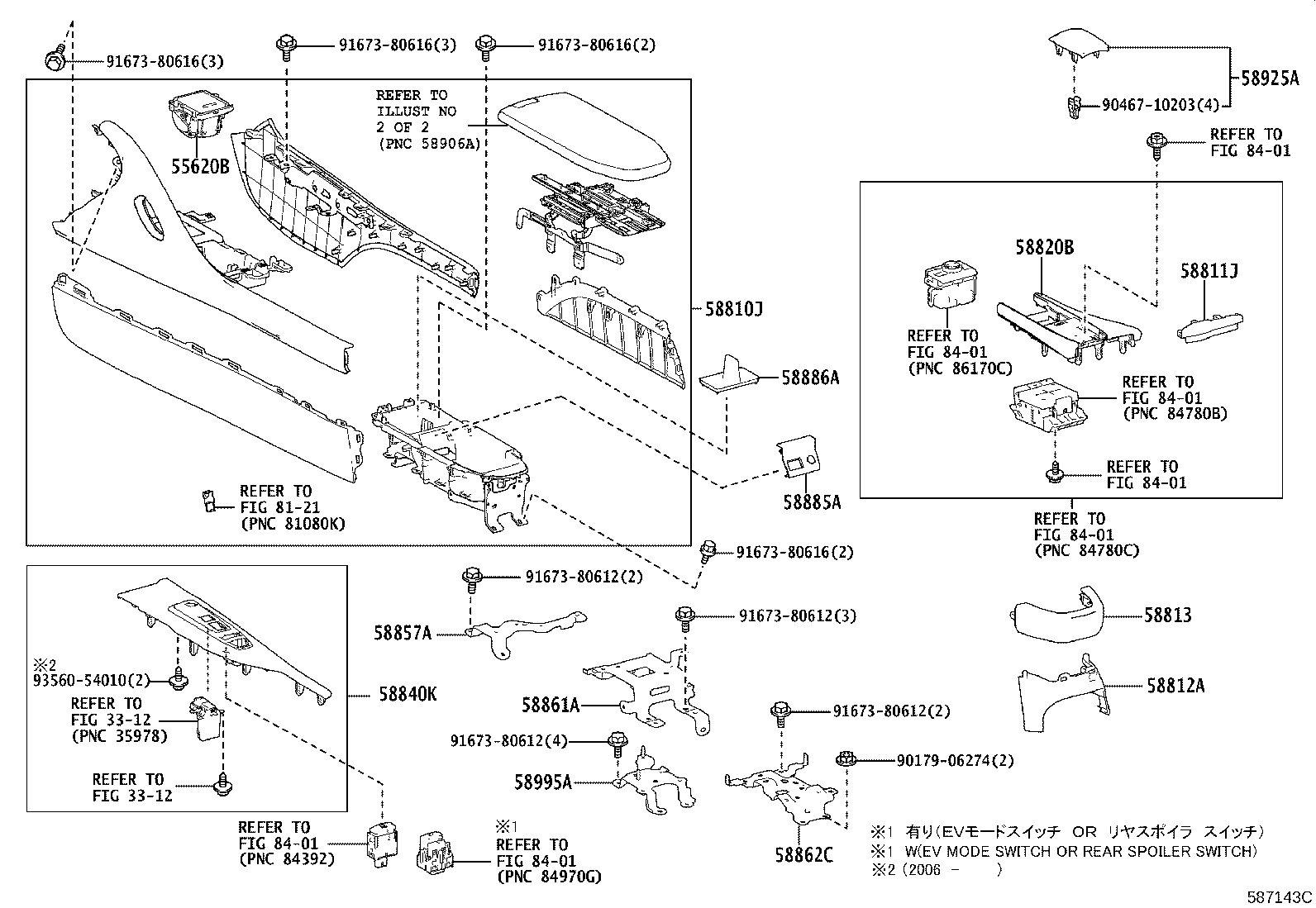

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-11010A0 |
GWZ100,URZ100 WHITE,TRIM21,81 |
1 | ||
| 55620-11010E1 |
GWZ100,URZ100 ORANGE2,TRIM8# |
1 | ||
| 55620-11010E1 |
GWZ100,URZ100 ORANGE2,TRIM8# |
1 | ||
| 55620-11010C3 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 55620-11010E0 |
GWZ100,URZ100 LT.OCHRE,TRIM40 |
1 | ||
| 55620-11010E1 |
GWZ100,URZ100 ORANGE2,TRIM80 |
1 | ||
| 55620-11010C3 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 55620-11030C0 |
GWZ100,URZ100 “Aviation”*(D),BLACK,TRIM2# |
1 | ||
| 55620-11010D0 |
GWZ100,URZ100 CRIMSON,TRIM3# |
1 | ||
| 55620-11010E4 |
GWZ100,URZ100 SADDLE TAN,TRIM41 |
1 | ||
| 55620-11010E5 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 55620-11010C3 |
GWZ100,URZ100 BLACK,TRIM20 |
1 | ||
| 55620-11010E0 |
GWZ100,URZ100 LT.OCHRE,TRIM4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-11020J4 |
GWZ100,URZ100 BLUE/ORANGE,TRIM80 |
1 | ||
| 58810-1102022 |
GWZ100,URZ100 BLACK/BLACK,TRIM2# |
1 | ||
| 58810-11020E5 |
GWZ100,URZ100 OCHRE/LT.OCHRE,TRIM4# |
1 | ||
| 58810-11020J4 |
GWZ100,URZ100 BLUE/ORANGE,TRIM8# |
1 | ||
| 58810-1102022 |
GWZ100,URZ100 BLACK/BLACK,TRIM2# |
1 | ||
| 58810-1102040 |
GWZ100,URZ100 BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-1102024 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 58810-1102027 |
GWZ100,URZ100 BLACK/CRIMSON,TRIM3# |
1 | ||
| 58810-11020J4 |
GWZ100,URZ100 BLUE/ORANGE,TRIM8# |
1 | ||
| 58810-11020E7 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 58810-11020J5 |
GWZ100,URZ100 BLUE/WHITE,TRIM81 |
1 | ||
| 58810-1102022 |
GWZ100,URZ100 BLACK/BLACK,TRIM20 |
1 | ||
| 58810-11100C0 |
GWZ100,URZ100 “Aviation”*(D),BLACK,TRIM2# |
1 | ||
| 58810-1102041 |
GWZ100,URZ100 BLACK/CRIMSON/LT.GRAY,TRIM3# |
1 | ||
| 58810-1102042 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 58810-1102023 |
GWZ100,URZ100 BLACK/CRIMSON,TRIM3# |
1 | ||
| 58810-11020E5 |
GWZ100,URZ100 OCHRE/LT.OCHRE,TRIM40 |
1 | ||
| 58810-11020E9 |
GWZ100,URZ100 OCHER/LT.OCHRE,TRIM40 |
1 | ||
| 58810-1102028 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 58810-1102026 |
GWZ100,URZ100 BLACK/BLACK,TRIM2# |
1 | ||
| 58810-11020E8 |
GWZ100,URZ100 OCHER/LT.OCHER,TRIM40 |
1 | ||
| 58811J - PLATE, CONSOLE | ||||
| 58811-11040 |
GWZ100,URZ100 |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58812-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 58812-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 58812-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 58813-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58813-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 58813-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58820B - PANEL ASSY, CONSOLE, UPPER | ||||
| 58820-11050E0 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 58820-11050E1 |
GWZ100,URZ100 OCHER, OCHRE,TRIM4# |
1 | ||
| 58820-11050C2 |
GWZ100,URZ100 BLACK, MUSTARD YELLOW,TRIM21 |
1 | ||
| 58820-11050C0 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 58820-11050C1 |
GWZ100,URZ100 BLACK, LT.GRAY,TRIM20,3# |
1 | ||
| 58820-11050J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58820-11050E3 |
GWZ100,URZ100 KUROKOHAKU, BROWN NO.304,TRIM41 |
1 | ||
| 58820-11050J1 |
GWZ100,URZ100 BLUE, ECRU,TRIM8# |
1 | ||
| 58820-11050C3 |
GWZ100,URZ100 BLACK, ORANGE NO.85,TRIM42 |
1 | ||
| 58820-11090C0 |
GWZ100,URZ100 “Aviation”*(D),BLACK, BROWN NO.304,TRIM2# |
1 | ||
| 58820-11050C1 |
GWZ100,URZ100 BLACK, LT.GRAY,TRIM2#,3# |
1 | ||
| 58820-11050E1 |
GWZ100,URZ100 OCHER, OCHRE,TRIM40 |
1 | ||
| 58840K - COVER ASSY, SHIFTING HOLE | ||||
| 58840-11060C1 |
GWZ100 BLACK,TRIM2# |
1 | ||
| 58840-11020C3 |
GWZ100 “S package”,BLACK,TRIM2# |
1 | ||
| 58840-11060C1 |
GWZ100 BLACK,TRIM20 |
1 | ||
| 58840-11060E1 |
GWZ100 ORANGE2,TRIM8# |
1 | ||
| 58840-11060E1 |
GWZ100 ORANGE2,TRIM80 |
1 | ||
| 58840-11020E2 |
GWZ100 LUSTER YELLOW*(),LT.OCHRE,TRIM4# |
1 | ||
| 58840-11020A0 |
GWZ100 “S package”,WHITE,TRIM21 |
1 | ||
| 58840-11020A0 |
GWZ100 LUSTER YELLOW*(),WHITE,TRIM21 |
1 | ||
| 58840-11060E0 |
GWZ100 LT.OCHRE,TRIM4# |
1 | ||
| 58840-11020D1 |
GWZ100 LUSTER YELLOW*(),CRIMSON,TRIM3# |
1 | ||
| 58840-11020E2 |
GWZ100 “S package”,LT.OCHRE,TRIM4# |
1 | ||
| 58840-11060A0 |
GWZ100 WHITE,TRIM21,81 |
1 | ||
| 58840-11020C3 |
GWZ100 LUSTER YELLOW*(),BLACK,TRIM20 |
1 | ||
| 58840-11020C3 |
GWZ100 “S package”,BLACK,TRIM20 |
1 | ||
| 58840-11020C3 |
GWZ100 “S package”,BLACK,TRIM2# |
1 | ||
| 58840-11020D1 |
GWZ100 “S package”,CRIMSON,TRIM3# |
1 | ||
| 58840-11060E2 |
GWZ100 SADDLE TAN,TRIM41 |
1 | ||
| 58840-11060E1 |
GWZ100 ORANGE2,TRIM8# |
1 | ||
| 58840-11060C1 |
GWZ100 BLACK,TRIM2# |
1 | ||
| 58840-11020E2 |
GWZ100 “S package”,LT.OCHRE,TRIM40 |
1 | ||
| 58840-11060D0 |
GWZ100 CRIMSON,TRIM3# |
1 | ||
| 58840-11020E4 |
GWZ100 “S package”,ORANGE,TRIM42 |
1 | ||
| 58840-11210C0 |
GWZ100 “Aviation”*(D),BLACK,TRIM2# |
1 | ||
| 58840-11060E3 |
GWZ100 ORANGE,TRIM42 |
1 | ||
| 58840-11060E0 |
GWZ100 LT.OCHRE,TRIM40 |
1 | ||
| 58857A - BRACKET, CONSOLE SUPPORT, UPPER NO.1 | ||||
| 58857-11020 |
GWZ100,URZ100 |
1 | ||
| 58861A - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58861-11020 |
GWZ100,URZ100 |
1 | ||
| 58862C - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58862-11050 |
GWZ100,URZ100 |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-11020 |
GWZ100,URZ100 |
1 | ||
| 58886A - COVER, EQUIPMENT SET PANEL | ||||
| 58886-11030 |
GWZ100,URZ100 |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-11050C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58925-11020C0 |
GWZ100,URZ100 “Aviation”*(D),BLACK,TRIM2# |
1 | ||
| 58925-11050J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58925-11050E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 58925-11050E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-10203 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||

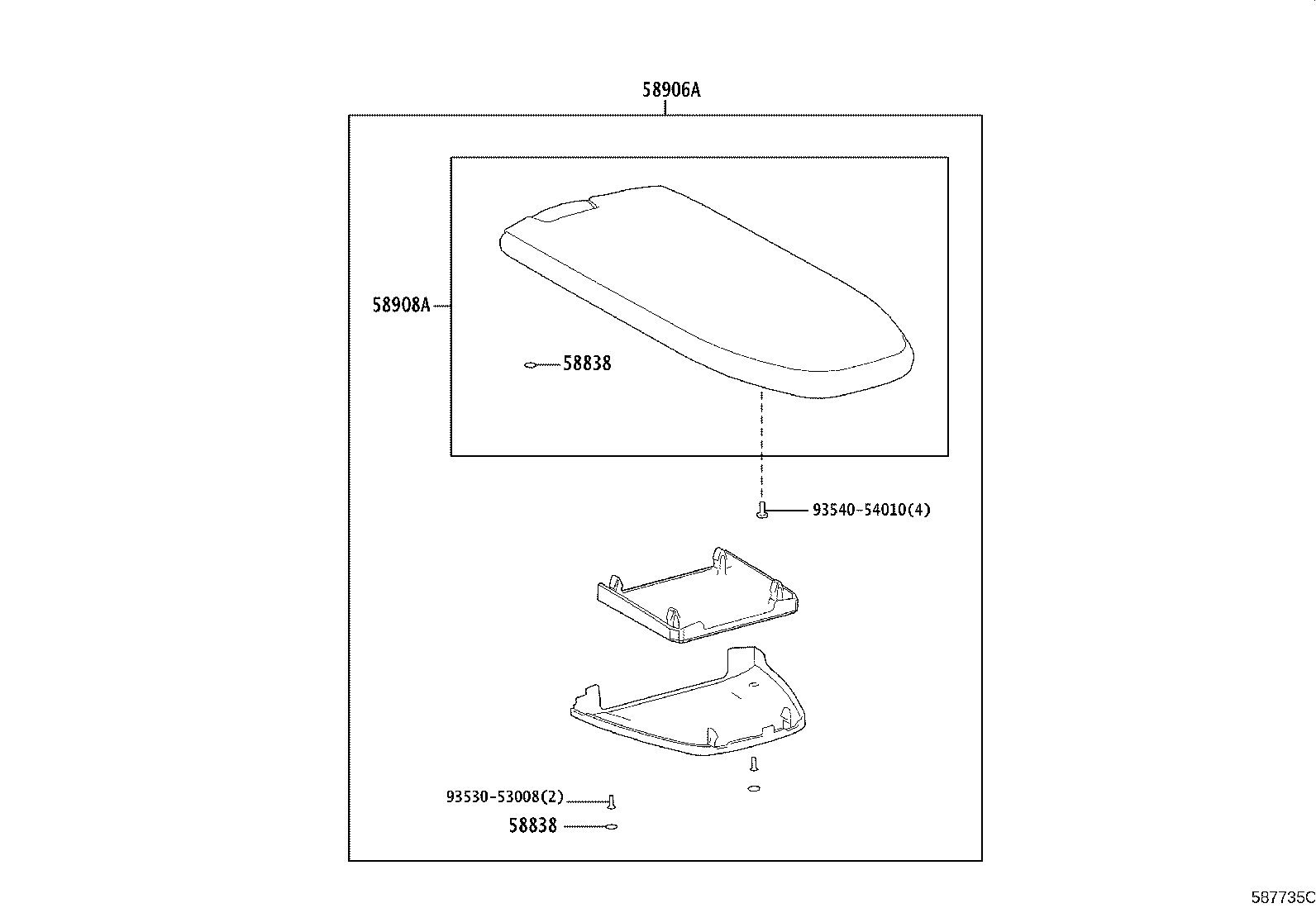

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58838 - PLUG, CONSOLE BOX HOLE | ||||
| 589AC-50010 |
GWZ100,URZ100 |
4 | ||
| 58838 - PLUG, CONSOLE BOX HOLE | ||||
| 589AC-50010 |
GWZ100,URZ100 |
4 | ||
| 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58906-11030J0 |
GWZ100,URZ100 BLUE/ECRU,TRIM8# |
1 | ||
| 58906-11030E1 |
GWZ100,URZ100 OCHER/OCHRE,TRIM40 |
1 | ||
| 58906-11030C0 |
GWZ100,URZ100 BLACK/LT.GRAY,TRIM2#,3# |
1 | ||
| 58906-11030C1 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 58906-11030E0 |
GWZ100,URZ100 KUROKOHAKU/BROWN,TRIM41 |
1 | ||
| 58906-11030C2 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 58906-11030C0 |
GWZ100,URZ100 BLACK/LT.GRAY,TRIM20,3# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-11070 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 93530-53008 | ||||
| 93540-54010 | ||||
