GWZ100-ACVBB (2017)
Toyota Lexus Lc500/500h(Cp)
ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
GWZ100,URZ100 |
6 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06237 |
GWZ100,URZ100 |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-11010 |
GWZ100,URZ100 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
GWZ100,URZ100 |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-11010 |
GWZ100,URZ100 |
1 | ||
| 52148H - BRACKET, FRONT BUMPER MOUNTING, NO.2 | ||||
| 52148-11010 |
GWZ100,URZ100 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-11020 |
GWZ100,URZ100 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-11020 |
GWZ100,URZ100 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-11010 |
GWZ100,URZ100 |
1 | ||
| 52611B - CLIP, FRONT BUMPER ENERGY ABSORBER | ||||
| 90467-0704923 |
GWZ100,URZ100 BLACK |
4 | ||
| 53119J - PROTECTOR, RADIATOR GRILLE, RH | ||||
| 53119-11010 |
GWZ100,URZ100 |
1 | ||
| 53119K - PROTECTOR, RADIATOR GRILLE, LH | ||||
| 53119-11020 |
GWZ100,URZ100 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-11010 |
GWZ100,URZ100 |
6 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06953 | ||||
| 90182-06009 | ||||
| 90467-07215 | ||||
| 90467-08108 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||

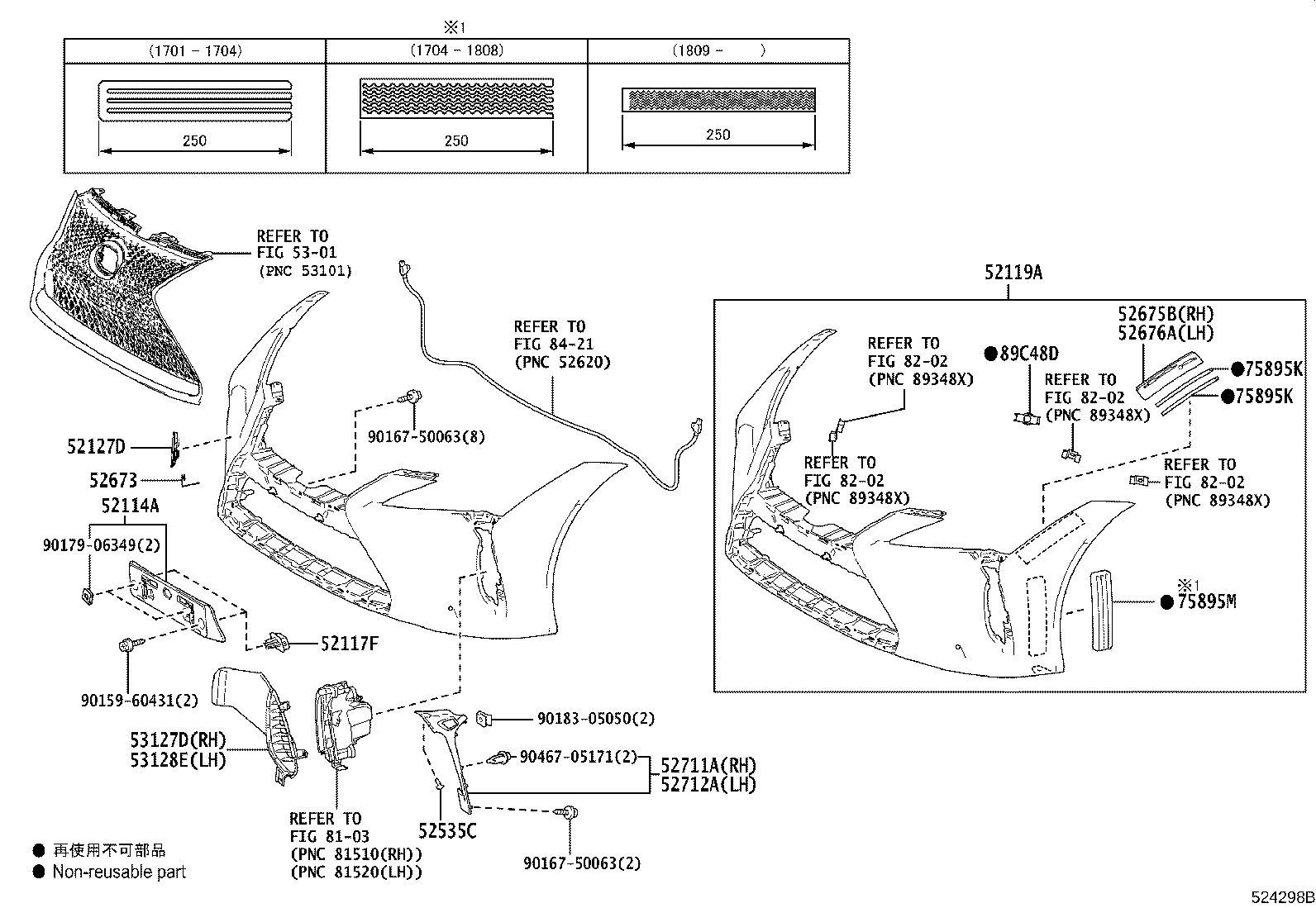

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-11010 |
GWZ100,URZ100 |
1 | ||
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-11010 |
GWZ100,URZ100 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-11904A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 52119-11904B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 52119-11904D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 52119-11904F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 52119-11904E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 52119-11904J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 52119-11904C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 52119-11910J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 52119-11910A0 |
GWZ100,URZ100 “Aviation”*(D),WHITE NOVA GF.,083 |
1 | ||
| 52119-11904B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 52119-11910C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 52119-11904J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 52119-11904B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 52119-11910D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 52119-11910B0 |
GWZ100,URZ100 “Aviation”*(D),DK.GRAY MC.,1G0 |
1 | ||
| 52119-11910B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 52119-11910E1 |
GWZ100,URZ100 “Aviation”*(D),BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 52119-11910C1 |
GWZ100,URZ100 “Aviation”*(D),GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-11910C0 |
GWZ100,URZ100 “Aviation”*(D),BLACK,212 |
1 | ||
| 52119-11910C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-11910E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 52119-11910D1 |
GWZ100,URZ100 “Aviation”*(D),RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 52119-11910J0 |
GWZ100,URZ100 “Aviation”*(D),DEEP BLUE MC.,8X5 |
1 | ||
| 52119-11910B2 |
GWZ100,URZ100 “Aviation”*(D),SONIC TITANIUM,1J7 |
1 | ||
| 52119-11910J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 52119-11904D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 52119-11910F0 |
GWZ100,URZ100 “Aviation”*(D),NAPLES YELLOW,5C1 |
1 | ||
| 52119-11910B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 52119-11910F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 52119-11910D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 52119-11910B1 |
GWZ100,URZ100 “Aviation”*(D),SONIC SILVER,1J2 |
1 | ||
| 52119-11910G0 |
GWZ100,URZ100 “Aviation”*(D),TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52119-11910A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 52119-11910B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 52119-11910E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 52119-11910G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52119-11904C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52128-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 52128-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 52128-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 52128-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 52128-11011B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 52128-11011E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 52128-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 52128-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 52128-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 52128-11011B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 52128-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 52128-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 52128-11011B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 52128-11011C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 52128-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 52128-11011D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 52128-11011C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 52128-11011E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 52128-11011J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 52128-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 52128-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 52128-11011F0 |
GWZ100,URZ100 NAPLES YELLOW CONTRAST LA,5C1 |
1 | ||
| 52128-11011A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 52128-11011G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
2 | ||
| 52673 - ARM, FRONT BUMPER, NO.1 | ||||
| 52673-11010 |
GWZ100,URZ100 |
1 | ||
| 52675B - SUPPORT, FRONT BUMPER SIDE, NO.1 RH | ||||
| 52675-11020 |
GWZ100,URZ100 |
1 | ||
| 52676A - SUPPORT, FRONT BUMPER SIDE, NO.1 LH | ||||
| 52676-11020 |
GWZ100,URZ100 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-11020 |
GWZ100,URZ100 |
1 | ||
| 52711-11040 |
GWZ100,URZ100 塗装不要,“Aviation”*(D) |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-11040 |
GWZ100,URZ100 “Aviation”*(D) |
1 | ||
| 52712-11020 |
GWZ100,URZ100 |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-11010 |
GWZ100,URZ100 |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-11010 |
GWZ100,URZ100 |
1 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-11020 |
GWZ100,URZ100 |
4 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-11020 |
GWZ100,URZ100 |
4 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-78030 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-05050 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8103 | ||||
| 8202 | ||||
| 8421 | ||||
