GSE21-AKTLH (2010)

Toyota Lexus Is250c/350c

Production Aug 2010 - Aug 2014
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

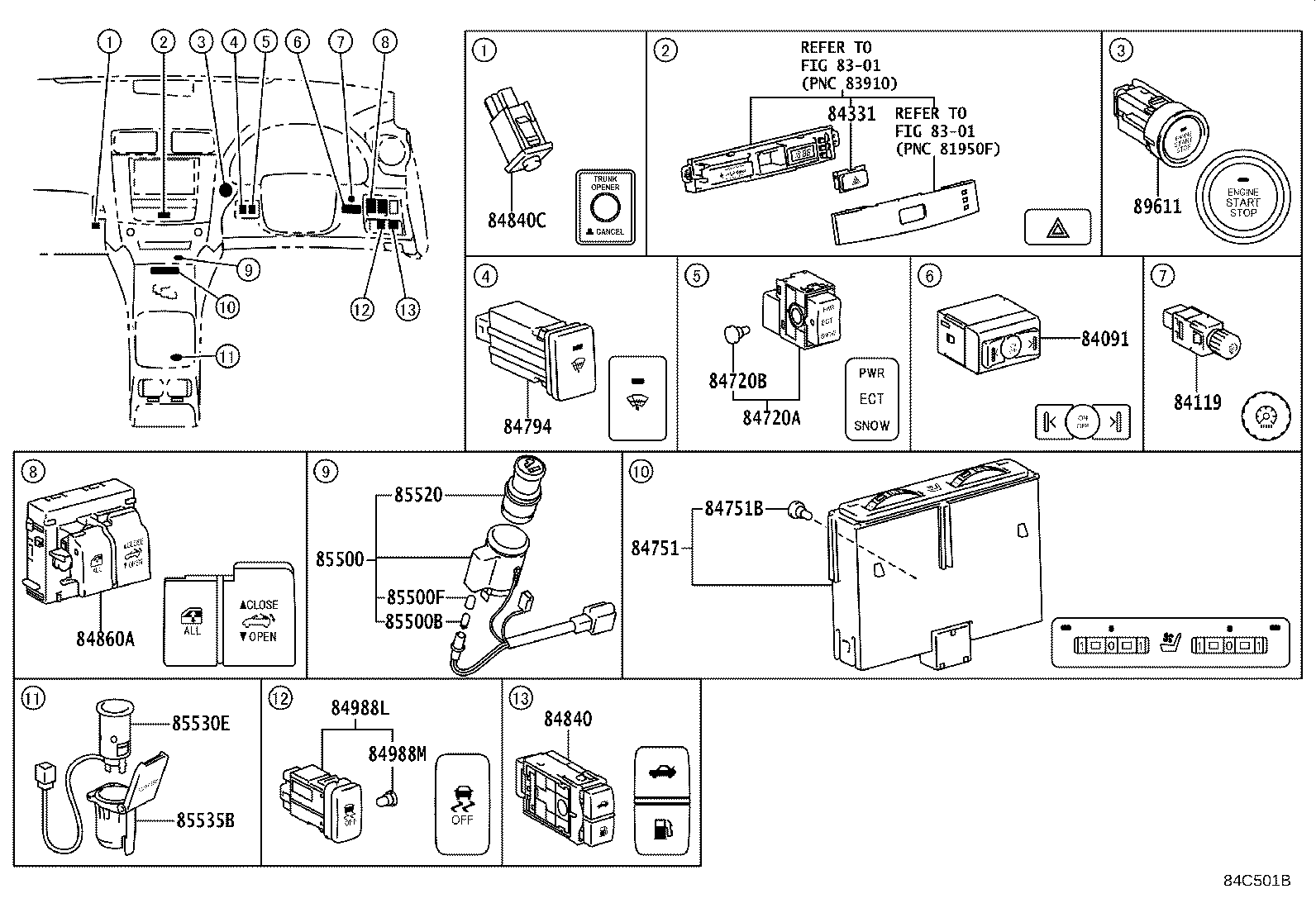

ILLUST NO. 5 OF 8(1008-1108)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 8301 8301 84091 84119 84331 84720A 84720B 84720F 84751 84751B 84794 84794B 84794B 84840 84840C 84860A 84988L 84988M 85500 85500B 85500F 85520 85530E 85535B 89611
Part # Description Qty Price
84091 - SWITCH SET, SATELLITE
84091-53010

GSE2#

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-48010

GSE2#

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-53040

GSE2#

 1
84720A - SWITCH ASSY, PATTERN SELECT, NO.1
84721-53010

GSE2#

 1
84720-30330

GSE2#

 1
84720B - BULB (FOR PATTERN SELECT SWITCH)
90010-01162

GSE2#

14V 0.84W,ｷｬｯﾌﾟ付き

 1
84999-10710

GSE2#

14V 0.56W

 1
84720F - CAP, PATTERN SELECT SWITCH
84998-10670

GSE2#

 1
84751 - SWITCH, SEAT HEATER
84751-30180

GSE21

 1
84751B - BULB, SEAT HEATER SWITCH
90010-01070

GSE2#

14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
84794 - SWITCH, FR WIPER DEICER
84794-52010

GSE2#

寒冷地仕様

 1
84794-33020

GSE2#

寒冷地仕様

 1
84794B - BULB, FR WIPER DEICER SWITCH
84999-10310

GSE2#

14V 0.91W,寒冷地仕様

 1
90010-01061

GSE2#

14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様

 1
84794B - BULB, FR WIPER DEICER SWITCH
84999-10310

GSE2#

14V 0.91W,寒冷地仕様

 1
90010-01061

GSE2#

14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様

 1
84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING
84840-53020

GSE2#

 1
84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL
84840-24020

GSE2#

 1
84860A - SWITCH ASSY, SLIDING ROOF
84860-53020

GSE2#

 1
84988L - SWITCH, VSC OFF
84988-30140

GSE2#

 1
84988-53010

GSE2#

 1
84988M - BULB, VSC OFF SWITCH
90010-01137

GSE2#

14V 0.63W

 1
90010-01039

GSE2#

14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30520

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85500B - BULB, CIGARETTE LIGHTER
90010-01111

GSE2#

13.5V 2W,灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-89101

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-53050

GSE2#

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-50020

GSE2#

 1
89611 - SWITCH, PUSH START
89611-30024

GSE2#

 1
89611-30023

GSE2#

 1
Linked diagrams
8301

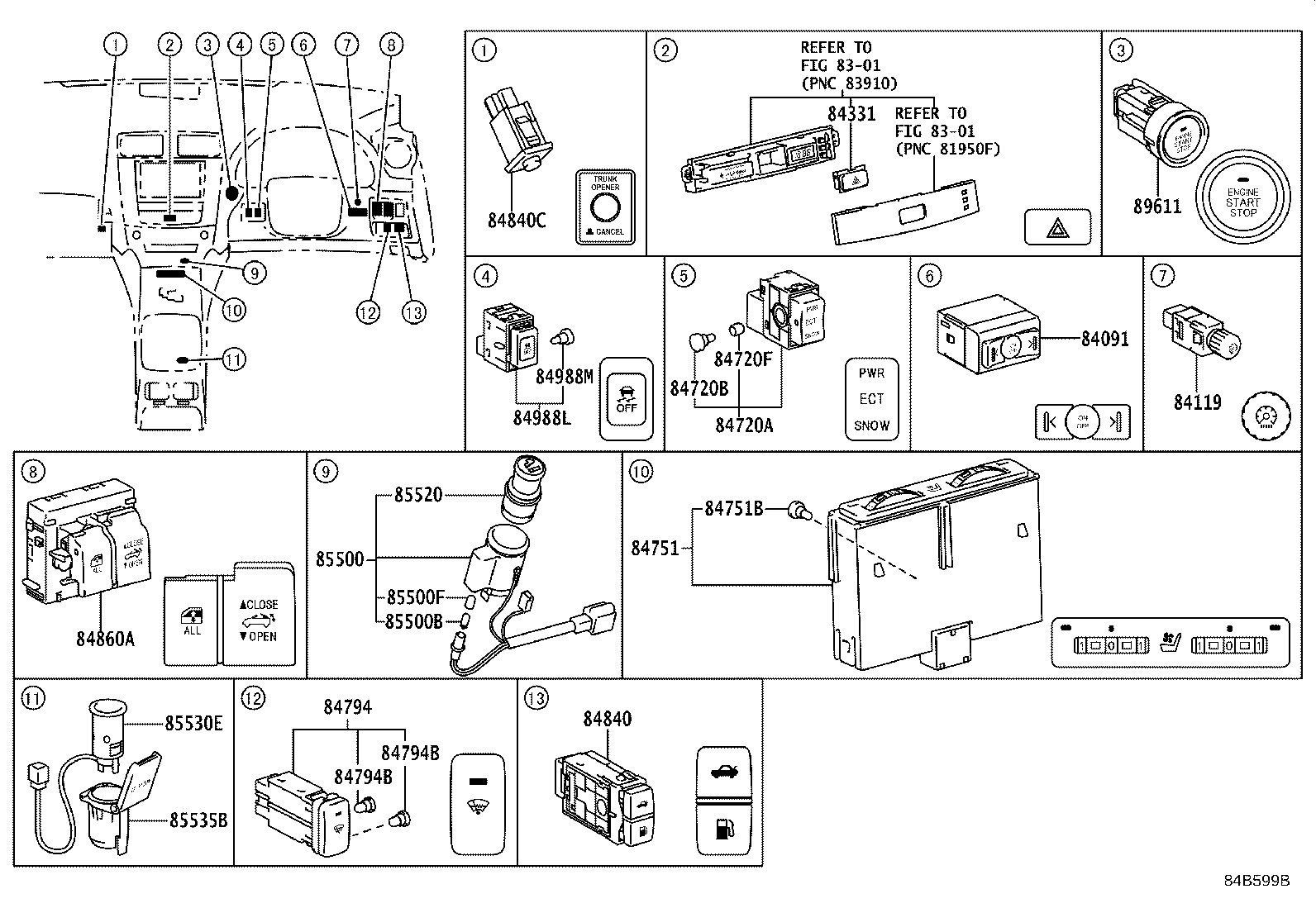

ILLUST NO. 5 OF 8(1108- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 8301 8301 84091 84119 84331 84720A 84720B 84751 84751B 84794 84840 84840C 84860A 84988L 84988M 85500 85500B 85500F 85520 85530E 85535B 89611
Part # Description Qty Price
84091 - SWITCH SET, SATELLITE
84091-53010

GSE2#

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-48010

GSE2#

 1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-53040

GSE2#

 1
84720A - SWITCH ASSY, PATTERN SELECT, NO.1
84721-53010

GSE2#

 1
84720-30330

GSE2#

 1
84720B - BULB (FOR PATTERN SELECT SWITCH)
90010-01162

GSE2#

14V 0.84W,ｷｬｯﾌﾟ付き

 1
84999-10710

GSE2#

14V 0.56W

 1
84751 - SWITCH, SEAT HEATER
84751-30180

GSE21

 1
84751B - BULB, SEAT HEATER SWITCH
90010-01070

GSE2#

14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
84794 - SWITCH, FR WIPER DEICER
84794-52010

GSE2#

寒冷地仕様

 1
84794-33020

GSE2#

寒冷地仕様

 1
84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING
84840-53020

GSE2#

 1
84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL
84840-24020

GSE2#

 1
84860A - SWITCH ASSY, SLIDING ROOF
84860-53020

GSE2#

 1
84988L - SWITCH, VSC OFF
84988-30140

GSE2#

 1
84988-53010

GSE2#

 1
84988M - BULB, VSC OFF SWITCH
90010-01137

GSE2#

14V 0.63W

 1
90010-01039

GSE2#

14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30520

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85500B - BULB, CIGARETTE LIGHTER
90010-01111

GSE2#

13.5V 2W,灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-89101

GSE2#

灰皿−ﾌﾛﾝﾄ/有り､ﾘﾔ/有り

 1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-53050

GSE2#

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-50020

GSE2#

 1
89611 - SWITCH, PUSH START
89611-30024

GSE2#

 1
89611-30023

GSE2#

 1
Linked diagrams
8301
