GSE21-AKTLH (2010)
Toyota Lexus Is250c/350c
Production
Aug 2010
-
Aug 2014
Engine
2GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

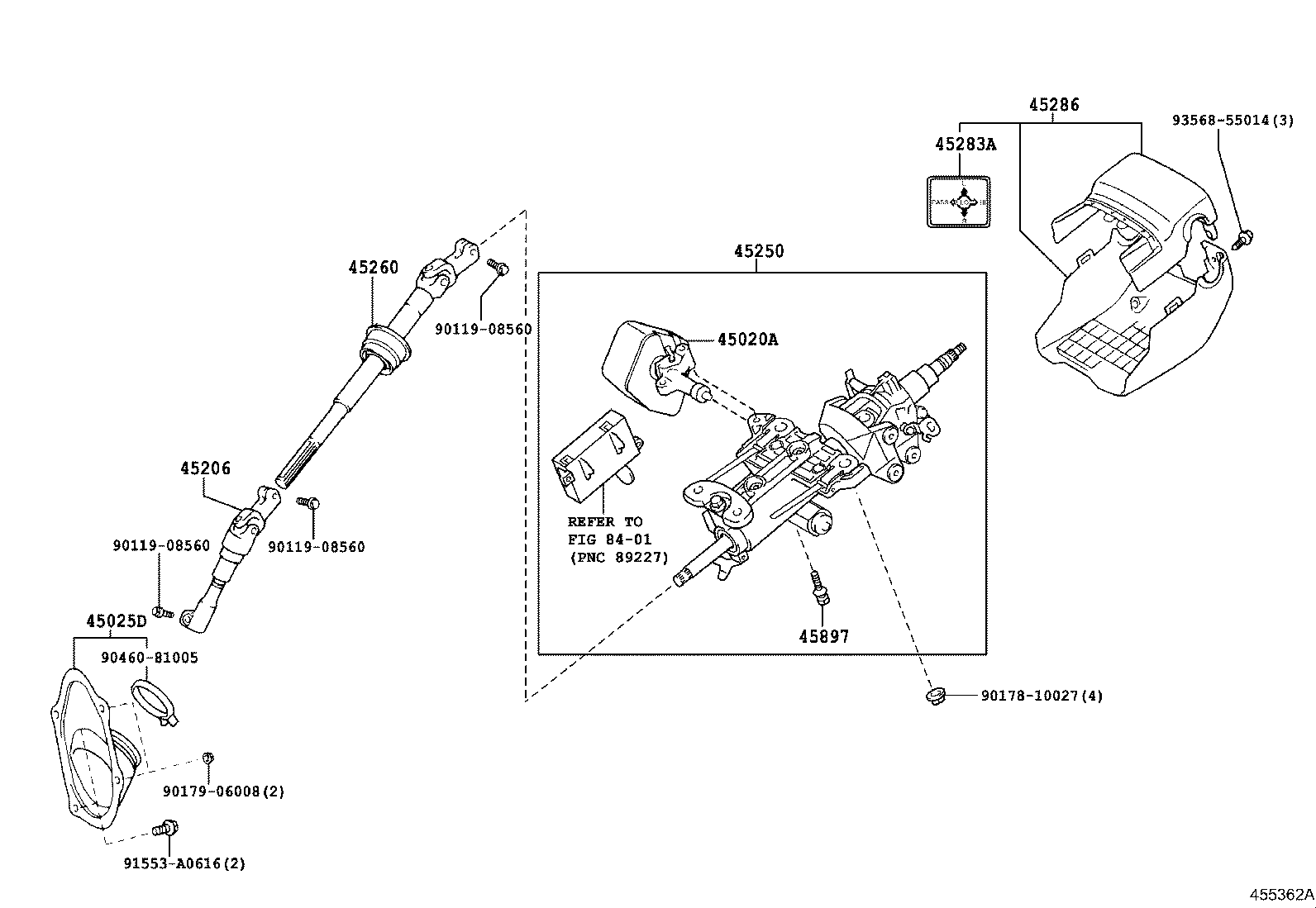

(0904-1011)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE2# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30350 |
GSE2# |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30140 |
GSE2# |
1 | ||
| 45206-30141 |
GSE2# |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-53051 |
GSE2# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30200 |
GSE2# |
1 | ||
| 45260-30201 |
GSE2# |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GSE2# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53911C0 |
GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

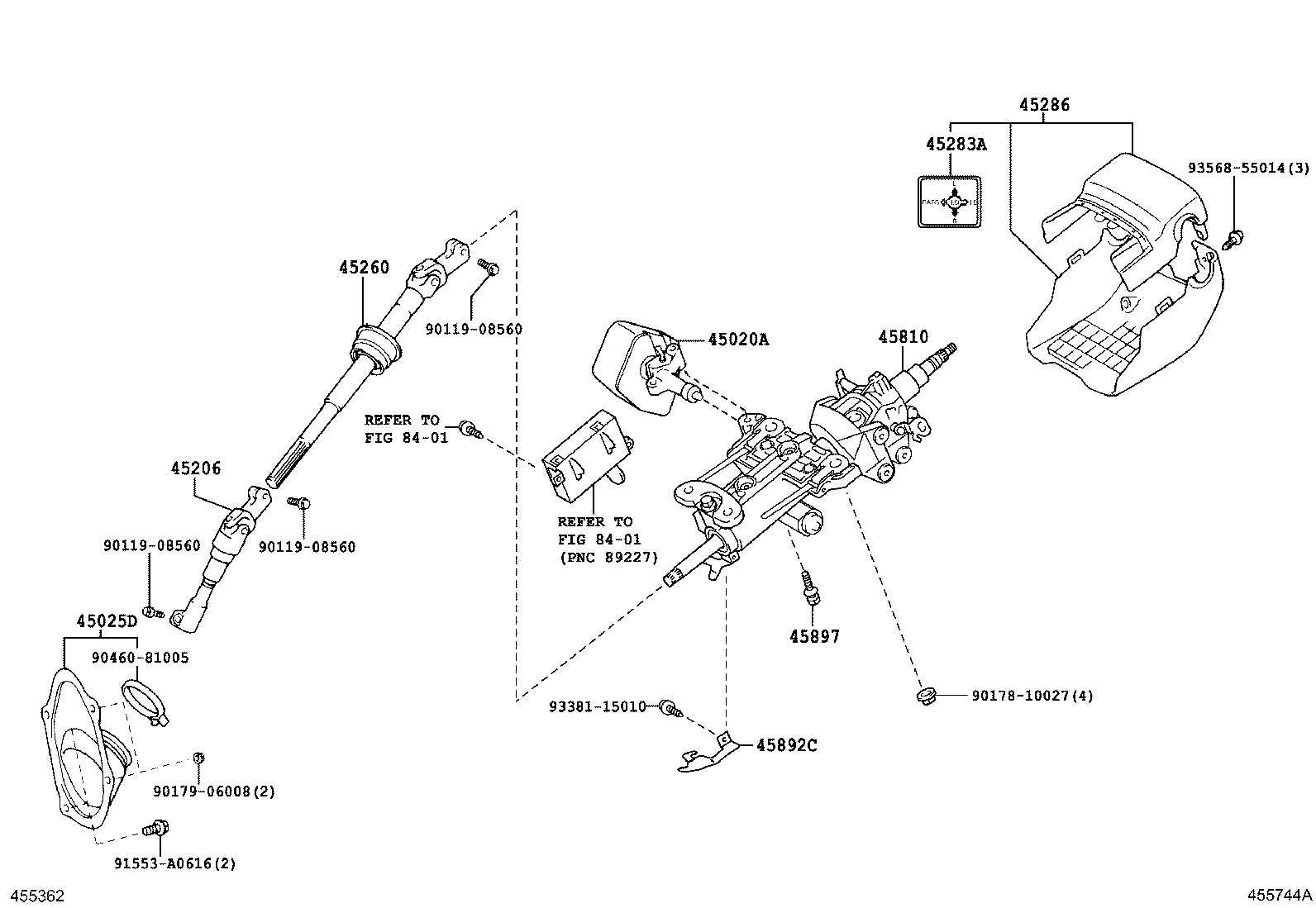

(1011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE2# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30350 |
GSE2# |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30140 |
GSE2# |
1 | ||
| 45206-30141 |
GSE2# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30200 |
GSE2# |
1 | ||
| 45260-30201 |
GSE2# |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GSE2# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53911C0 |
GSE2# BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-53020 |
GSE2# |
1 | ||
| 45892C - BRACKET, RETURN SPRING | ||||
| 45892-30010 |
GSE2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 91553-A0616 | ||||
| 93381-15010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
