GSE20-AKTLH (2009)

Toyota Lexus Is250c/350c

Production Apr 2009 - Aug 2014
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

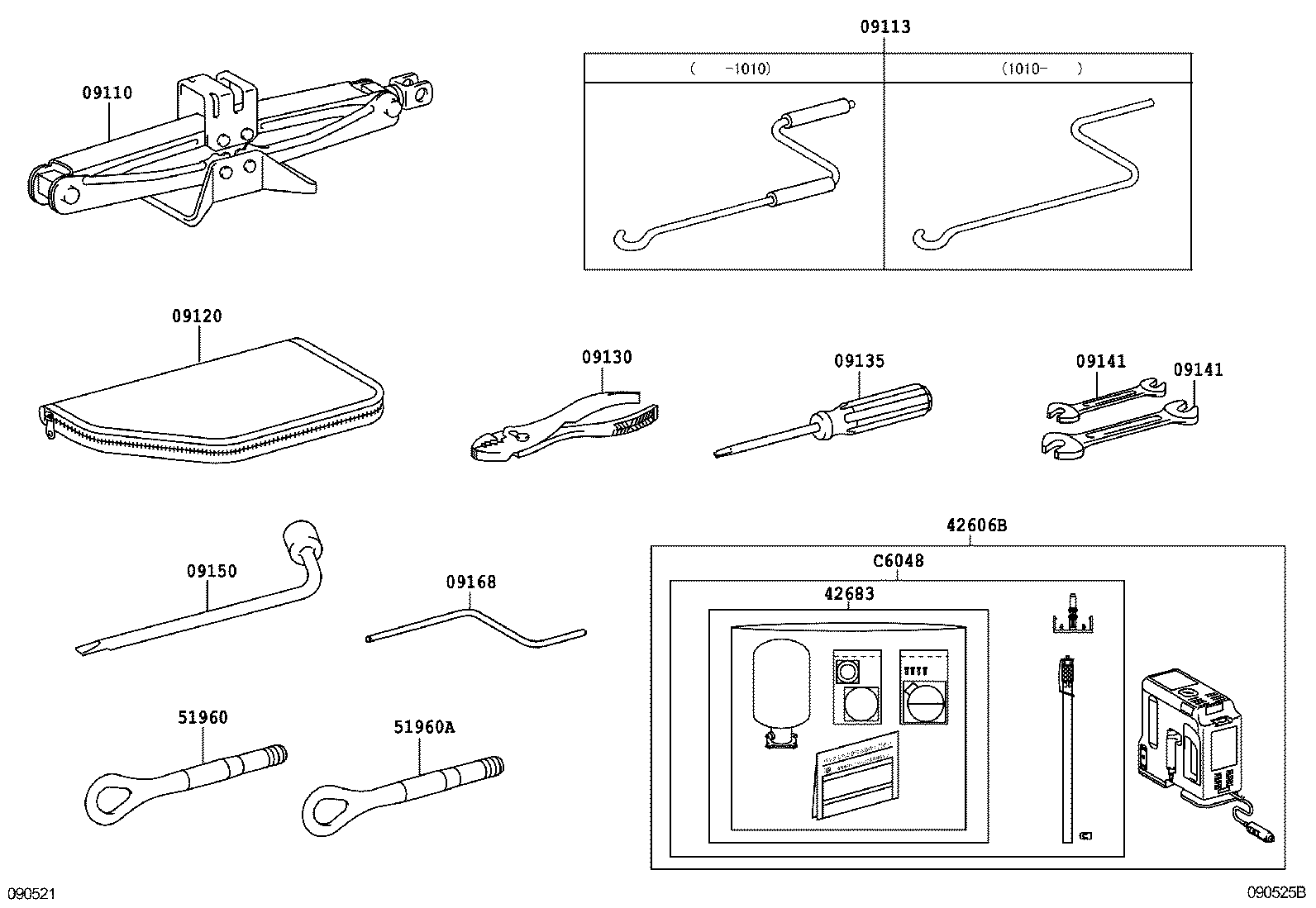

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09168 42606B 42683 51960 51960A C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-50051

GSE2#

 1
09111-33030

GSE2#

 1
09113 - HANDLE, JACK
09113-22020

GSE2#

 1
09113-13040

GSE2#

 1
09120 - BAG, TOOL
09120-53030

GSE2#

 1
09130 - PLIERS
09130-50040

GSE2#

 1
09130-50030

GSE20

 1
09135 - DRIVER, SCREW
99915-10700

GSE2#

 1
09135-50040

GSE20

 1
09141 - SPANNER
09141-50060

GSE20

12 X 14

 1
09141-50050

GSE20

8 X 10

 1
09141-60010

GSE2#

8 X 10

 1
09141-60020

GSE2#

12 X 14

 1
09141 - SPANNER
09141-50060

GSE20

12 X 14

 1
09141-50050

GSE20

8 X 10

 1
09141-60010

GSE2#

8 X 10

 1
09141-60020

GSE2#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-76020

GSE2#

 1
09150-53010

GSE2#

 1
09150-50010

GSE20

 1
09168 - WRENCH, ROOF PANEL
09168-53010

GSE2#

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-50010

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
42606-50011

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
42683 - SEAL, TIRE REPAIR
42683-50011

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
42683-50010

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
51960 - HOOK ASSY, FRONT
51961-53010

GSE2#

 1
51960A - HOOK ASSY, REAR
51961-53010

GSE2#

 2
C6048 - REPAIR SET, TIRE
C6048-50010

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
C6048-50011

GSE2#

ｽﾍﾟｱﾀｲﾔ−無し(有り/ﾊﾟﾝｸ修理ｷｯﾄ)

 1
