GSE25-AETLH (2005)

Toyota Lexus Is250/350

Production Aug 2005 - Aug 2008
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

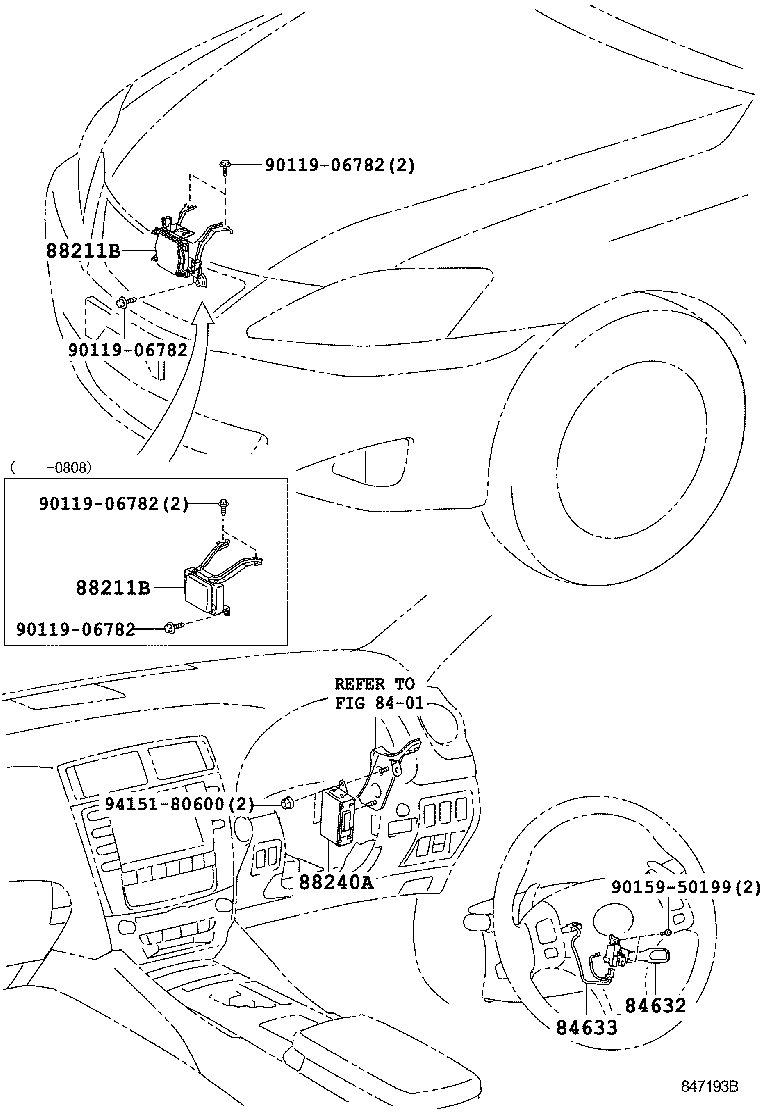

Click highlighted areas on diagram

diagram 8401 84632 84633 88211B 88211B 88240A 9011906782 9011906782 9011906782 9011906782 9015950199 9415180600
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-58011

GSE2#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
84632-34011

GSE2#

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-48010

GSE2#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
84633-48020

GSE2#

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-53020

GSE2#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
88211B - SENSOR ASSY, MILLIMETER WAVE RADAR
88210-53020

GSE2#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
88240A - COMPUTER ASSY, DISTANCE CONTROL
88240-53010

GSE2#

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
Common parts
90119-06782
90159-50199
94151-80600
Linked diagrams
8401
