GSE21-AETLH (2005)

Toyota Lexus Is250/350

Production Aug 2005 - Aug 2008
Engine 2GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

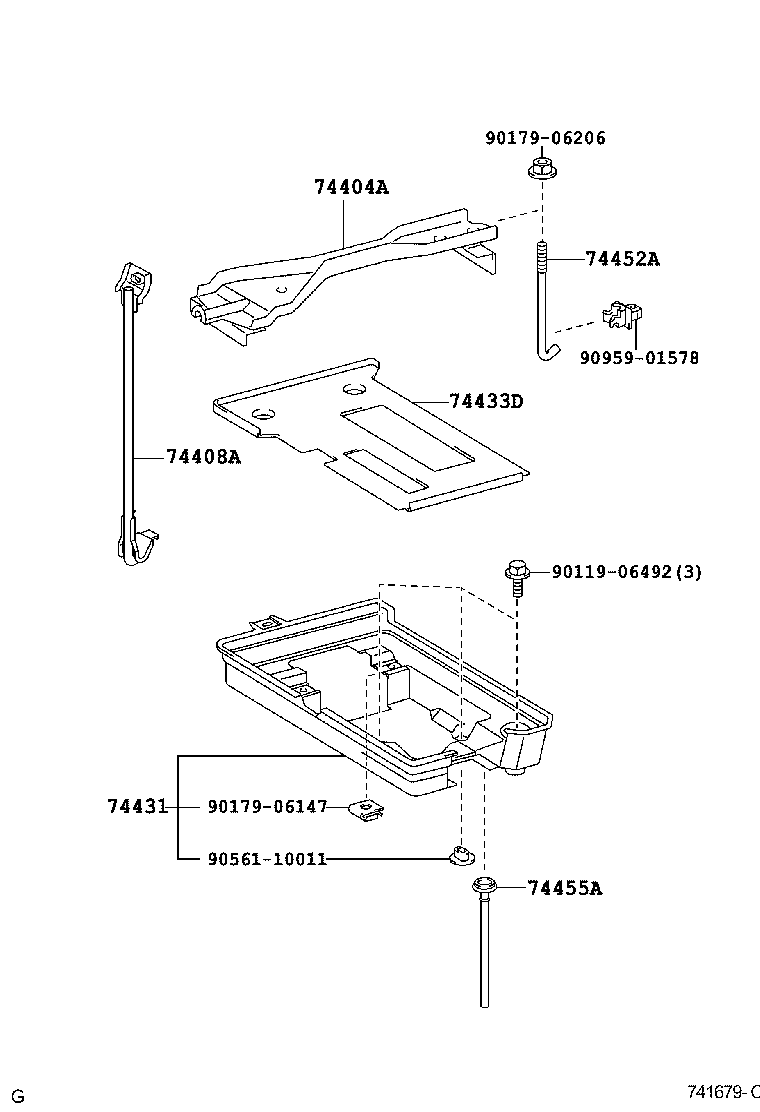

Click highlighted areas on diagram

diagram 74404A 74408A 74431 74433D 74452A 74455A 9011906492 9017906147 9017906206 9056110011 9095901578
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-22370

GSE2#

 1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-22030

GSE2#

 1
74431 - TRAY, BATTERY
74431-53030

GSE2#

 1
74433D - SUPPORT, BATTERY TRAY,NO.1
74433-53010

GSE2#

 1
74452A - BOLT, BATTERY CLAMP, NO.2
74452-53020

GSE2#

 1
74455A - HOSE, BATTERY DRAIN
74455-30020

GSE2#

 1
Common parts
90119-06492
90179-06147
90179-06206
90561-10011
90959-01578
