GSE21-AETLH (2005)
Toyota Lexus Is250/350
Production
Aug 2005
-
Aug 2008
Engine
2GRFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )GSE21

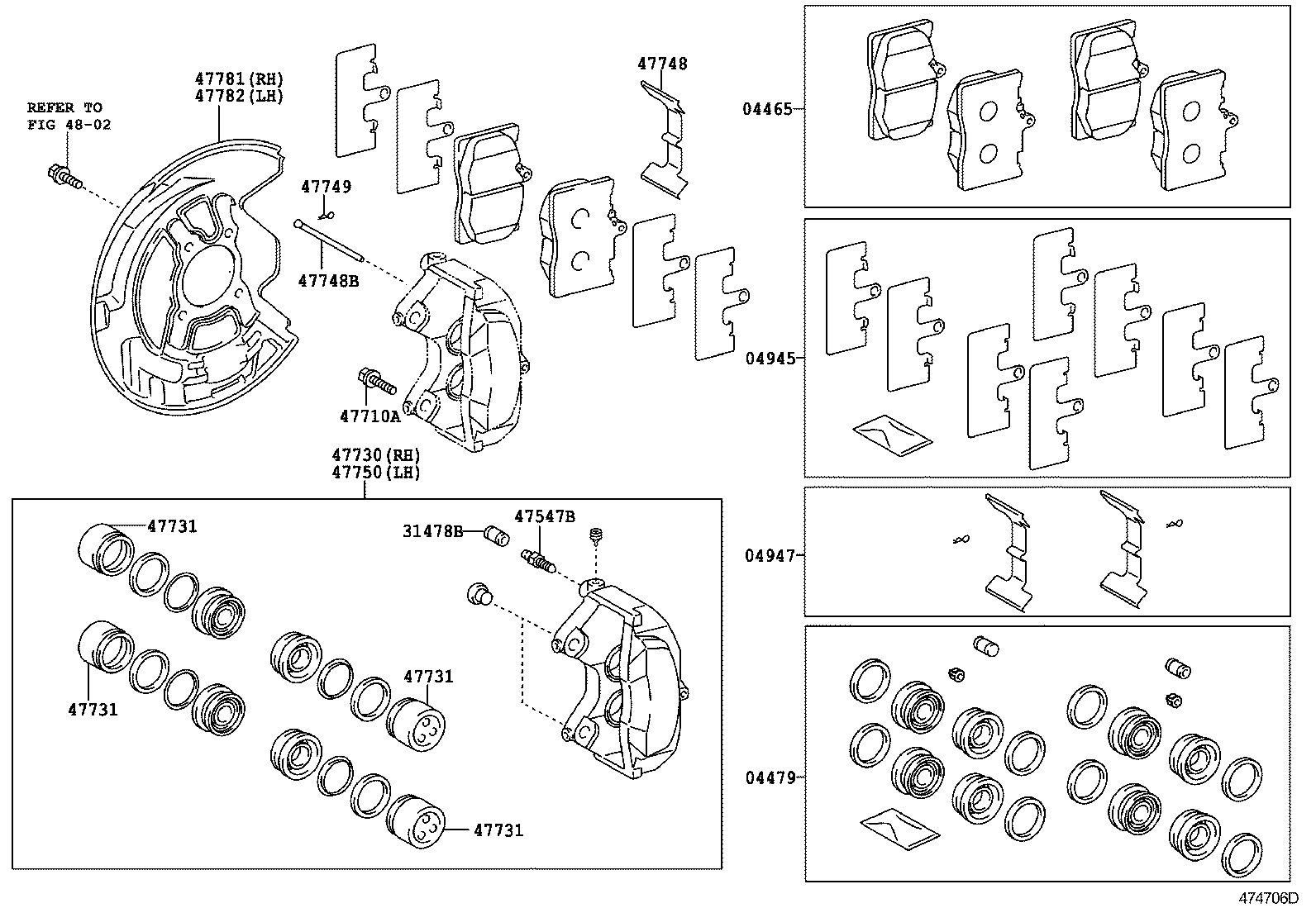

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-3041079 |
GSE21 ﾏｰｸ TEXTAR T4146 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-22040 |
GSE21 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-22151 |
GSE21 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-22070 |
GSE21 |
1 | ||
| 04947-50090 |
GSE21 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-14010 |
GSE21 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-50010 |
GSE21 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-K1240 |
GSE2# *12−1.25PX40−30 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-22460 |
GSE21 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50070 |
GSE21 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50070 |
GSE21 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50070 |
GSE21 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50070 |
GSE21 |
8 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-50020 |
GSE21 |
2 | ||
| 47748-22460 |
GSE21 |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 47735-50020 |
GSE21 |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-50030 |
GSE21 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-22460 |
GSE21 |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-22200 |
GSE21 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-22200 |
GSE21 |
1 | ||
| Linked diagrams | ||||
| 4802 | ||||
