GSE20-AETLH (2010)
Toyota Lexus Is250/350
Production
Aug 2010
-
Apr 2013
Engine
4GRFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1008- )

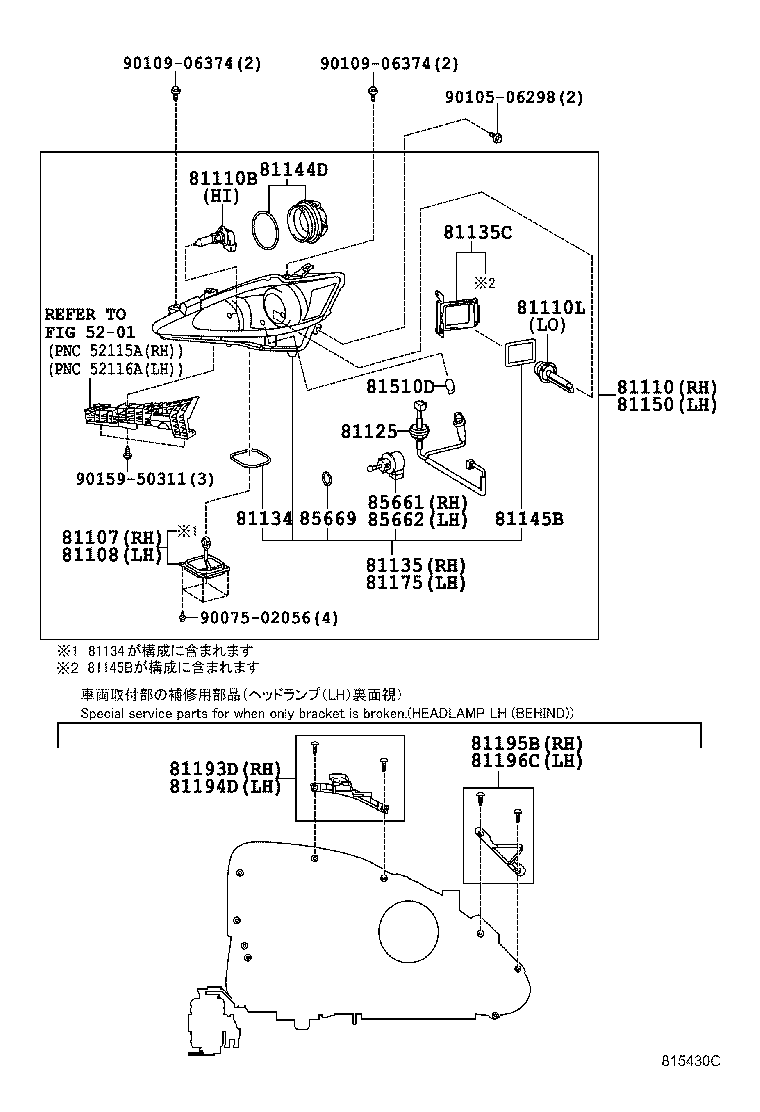

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-53501 |
GSE2# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-53501 |
GSE2# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-53250 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し |
1 | ||
| 81110-53492 |
GSE2# |
1 | ||
| 81110-53491 |
GSE2# |
1 | ||
| 81110-53493 |
GSE2# |
1 | ||
| 81110-53490 |
GSE2# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-1304679 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-1304679 |
GSE2# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-2001379 |
GSE2# 45V 35W |
2 | ||
| 90981-2002479 |
GSE2# 42V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81126-53220 |
GSE2# |
2 | ||
| 81125-53570 |
GSE2# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
GSE2# |
1 | ||
| 90075-68007 |
GSE2# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-53220 |
GSE2# |
1 | ||
| 81130-53250 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し |
1 | ||
| 81145-53490 |
GSE2# |
1 | ||
| 81145-53491 |
GSE2# |
1 | ||
| 81145-53493 |
GSE2# |
1 | ||
| 81145-53492 |
GSE2# |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-53270 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し |
2 | ||
| 81135-53240 |
GSE2# |
2 | ||
| 81135-53240 |
GSE2# |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 90075-66004 |
GSE2# |
2 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81132-53240 |
GSE2# |
1 | ||
| 81132-53240 |
GSE2# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-53250 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し |
1 | ||
| 81150-53491 |
GSE2# |
1 | ||
| 81150-53490 |
GSE2# |
1 | ||
| 81150-53493 |
GSE2# |
1 | ||
| 81150-53492 |
GSE2# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-53493 |
GSE2# |
1 | ||
| 81070-53220 |
GSE2# |
1 | ||
| 81170-53250 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し |
1 | ||
| 81185-53491 |
GSE2# |
1 | ||
| 81185-53492 |
GSE2# |
1 | ||
| 81185-53490 |
GSE2# |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-53020 |
GSE2# |
1 | ||
| 81193-53020 |
GSE2# |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-53010 |
GSE2# |
1 | ||
| 81194-53010 |
GSE2# |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-53010 |
GSE2# |
1 | ||
| 81195-53010 |
GSE2# |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-53020 |
GSE2# |
1 | ||
| 81196-53020 |
GSE2# |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-1502179 |
GSE2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-1502179 |
GSE2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48030 |
GSE2# |
1 | ||
| 85661-48030 |
GSE2# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48030 |
GSE2# |
1 | ||
| 85661-48030 |
GSE2# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GSE2# |
2 | ||
| 90075-99120 |
GSE2# |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90109-06374 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 5201 | ||||
