GSE20-AETLH (2005)

Toyota Lexus Is250/350

Production Aug 2005 - Aug 2008
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0508-0908)

Click highlighted areas on diagram

diagram 8603 8603 8603 86120 86190C 86211 86212 86280 86280 86285 86285 86286 86286 86287B 86287B 86842C 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9017906274 9017906274 9017906274 9017906274 9046710183 9046710183 91511B0616 91511B0616 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-53270

GSE2#

FUJITSU TEN,ID=15873

 1
86120-53280

GSE2#

PIONEER, ID=P0502,ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳ塔hｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86120-53280

GSE2#

PIONEER, ID=P0502,ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳ塔hｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86120-53270

GSE2#

FUJITSU TEN,ID=15873

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-53020

GSE2#

 1
86211 - BRACKET, RADIO, NO.1
86211-53020

GSE2#

 1
86212 - BRACKET, RADIO, NO.2
86212-53020

GSE2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W360

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86280-53110

GSE2#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W360

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86280-53110

GSE2#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-53040

GSE2#

 1
86285-53050

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-53040

GSE2#

 1
86285-53050

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-53050

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86286-53040

GSE2#

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-53050

GSE2#

ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ

 1
86286-53040

GSE2#

 1
86287B - COVER, AMPLIFIER
86287-53010

GSE2#

 1
86287B - COVER, AMPLIFIER
86287-53010

GSE2#

 1
86842C - WIRE, NAVIGATION
86842-30170

GSE2#

 1
Common parts
90153-50010
90179-06274
90467-10183
91511-B0616
Linked diagrams
8603

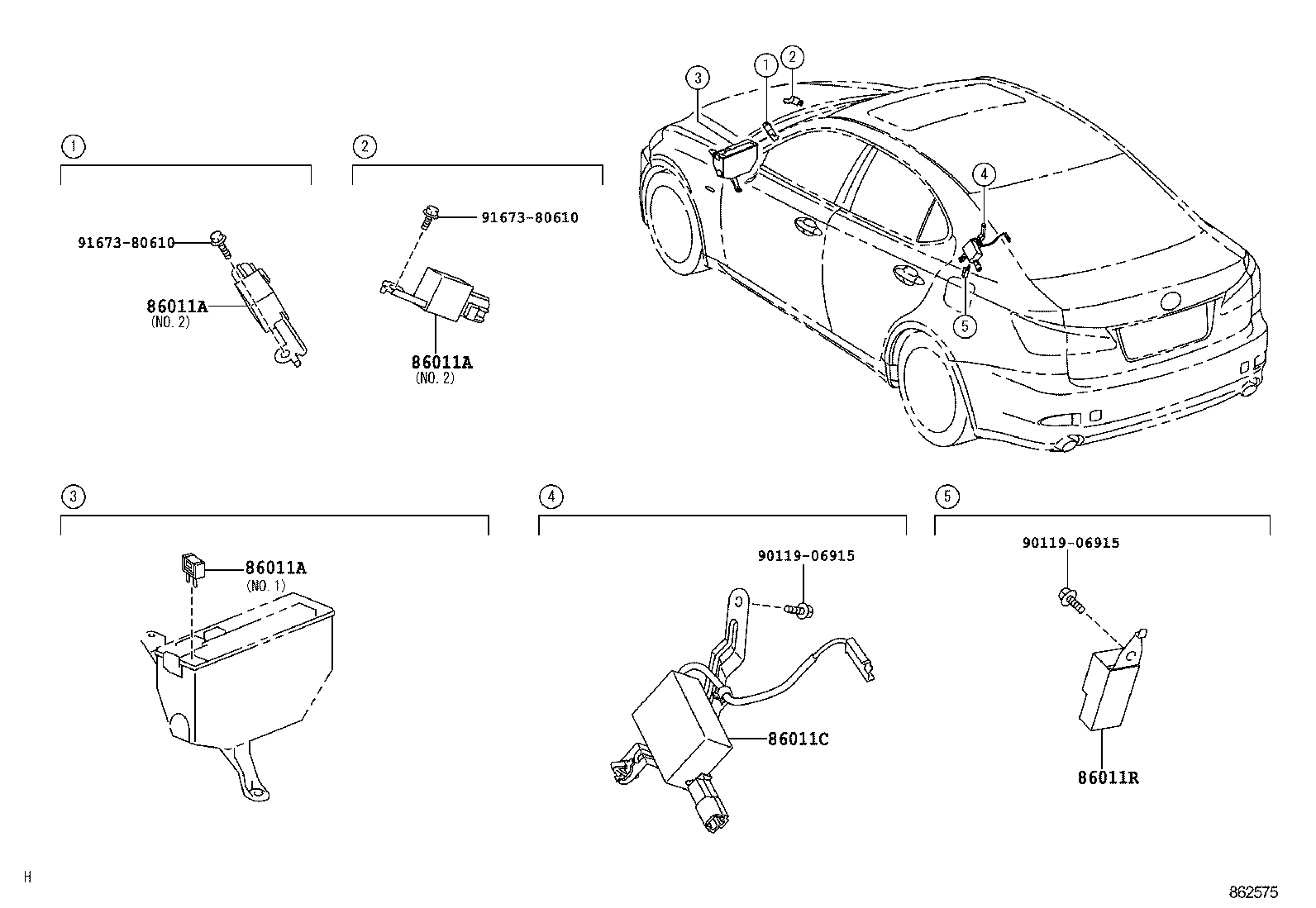

ILLUST NO. 2 OF 2(0508- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011A 86011A 86011A 86011C 86011R 9011906915 9011906915 9167380610 9167380610
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

GSE2#

NO.1

 1
90980-04190

GSE2#

NO.2

 2
86011A - CONDENSER, RADIO SETTING
90980-04066

GSE2#

NO.1

 1
90980-04190

GSE2#

NO.2

 2
86011A - CONDENSER, RADIO SETTING
90980-04066

GSE2#

NO.1

 1
90980-04190

GSE2#

NO.2

 2
86011C - FILTER, NOISE
90980-05370

GSE2#

 1
86011R - CONDENSER, RADIO SETTING
90980-04184

GSE2#

 2
Common parts
90119-06915
91673-80610
