GSE20-AETLH (2005)

Toyota Lexus Is250/350

Production Aug 2005 - Aug 2008
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

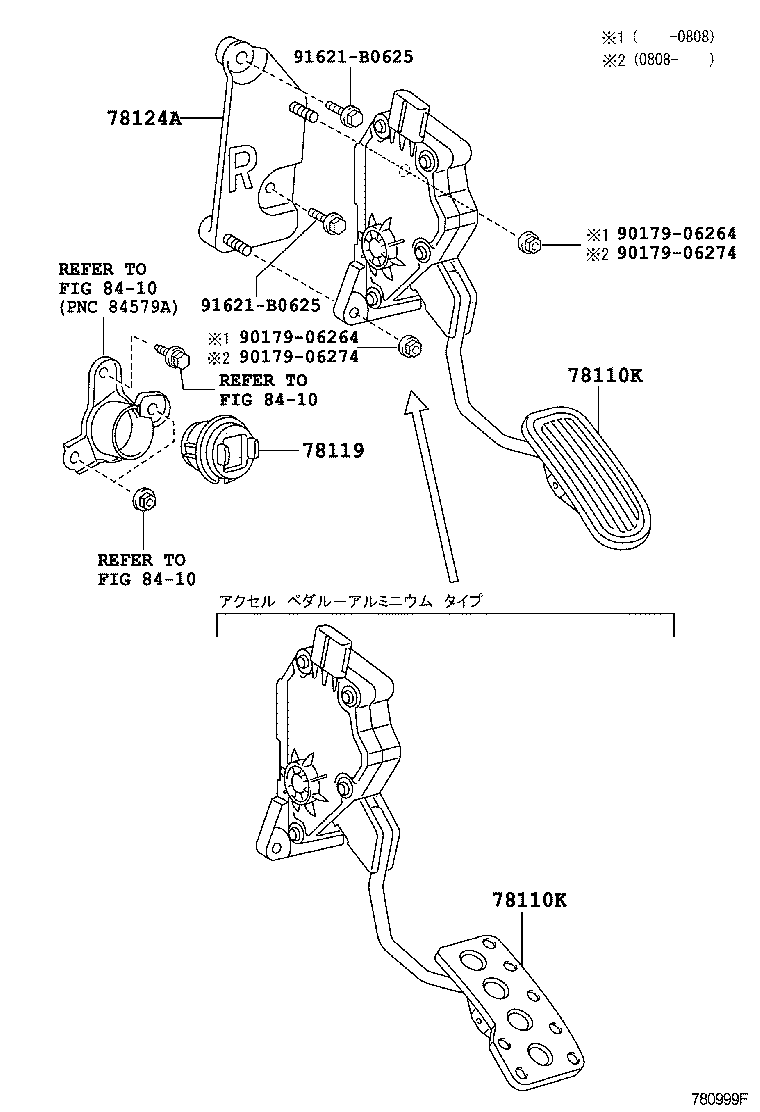

Click highlighted areas on diagram

diagram 78110K 78110K 78119 78124A 8410 8410 8410 9017906264 9017906264 9017906274 9017906274 91621B0625 91621B0625
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53011

GSE2#

 1
78110-53020

GSE20,21

ｱｸｾﾙ ﾍﾟﾀﾞﾙ−ｱﾙﾐﾆｳﾑ ﾀｲﾌﾟ

 1
78110-53010

GSE2#

 1
78110-53021

GSE20,21

ｱｸｾﾙ ﾍﾟﾀﾞﾙ−ｱﾙﾐﾆｳﾑ ﾀｲﾌﾟ

 1
78110-53020

GSE20,21

VERSION S

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-53011

GSE2#

 1
78110-53020

GSE20,21

ｱｸｾﾙ ﾍﾟﾀﾞﾙ−ｱﾙﾐﾆｳﾑ ﾀｲﾌﾟ

 1
78110-53010

GSE2#

 1
78110-53021

GSE20,21

ｱｸｾﾙ ﾍﾟﾀﾞﾙ−ｱﾙﾐﾆｳﾑ ﾀｲﾌﾟ

 1
78110-53020

GSE20,21

VERSION S

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-48010

GSE2#

 1
78124A - BRACKET, ACCELERATOR PEDAL ROD
78124-53010

GSE2#

 1
Common parts
90179-06264
90179-06274
91621-B0625
Linked diagrams
8410
