GSE20-AETLH (2005)

Toyota Lexus Is250/350

Production Aug 2005 - Aug 2008
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )

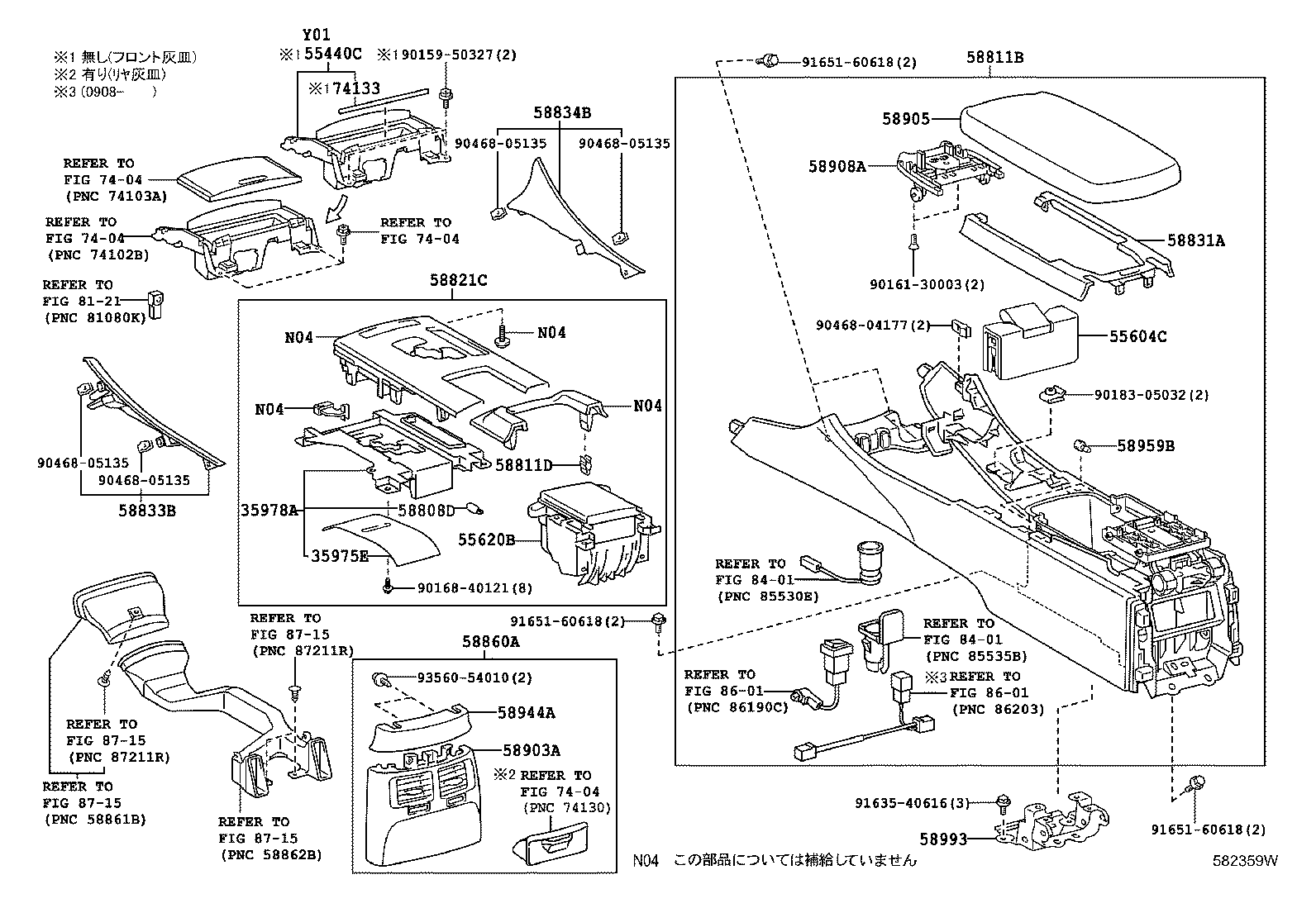

Click highlighted areas on diagram

diagram 35975E 35978A 55440C 55604C 55620B 58808D 58811B 58811D 58821C 58831A 58833B 58834B 58860A 58903A 58905 58908A 58944A 58959B 58993 7404 7404 7404 7404 74133 8121 8401 8401 8601 8601 8715 8715 8715 8715 9015950327 9016130003 9016840121 9018305032 9046804177 9046805135 9046805135 9046805135 9046805135 9163540616 9165160618 9165160618 9165160618 9356054010
Part # Description Qty Price
35975E - COVER, SLIDE (FOR POSITION INDICATOR)
35975-53020

GSE2#

 1
35978A - INDICATOR, SHIFT POSITION
35978-53010

GSE2#

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
55604-53070

GSE2#

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-53020D1

GSE2#

VERSION I *(I),RED,TRIM05,12,28

 1
55620-53010

GSE2#

 1
55620-53020E1

GSE2#

VERSION I *(I),LIGHT BROWN,TRIM04,11,27

 1
55620-53020E1

GSE2#

VERSION I *(I),LIGHT BROWN,TRIM04,11,27

 1
55620-53020D1

GSE2#

VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,RED,TRIM0#,1#,2#

 1
55620-53020E1

GSE2#

VERSION I *(I),LIGHT BROWN,TRIM04,11,27

 1
58808D - SHIFT INDICATOR LAMP BULB
81936-53010

GSE2#

 1
58811B - BOX, CONSOLE
58810-53080C6

GSE2#

VERSION L,BLACK,TRIM0#

 1
58810-53070C6

GSE20,21

VERSION S,BLACK,TRIM0#

 1
58810-53060C6

GSE2#

BLACK,TRIM0#

 1
58810-53070C7

GSE20,21

VERSION S,BLACK,TRIM1#

 1
58810-53080C7

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#

 1
58810-53080C8

GSE2#

VERSION L,BLACK,TRIM1#

 1
58810-53070C8

GSE20,21

VERSION S,BLACK,TRIM2#

 1
58810-53080C7

GSE2#

VERSION L,BLACK,TRIM2#

 1
58810-53080C8

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM1#

 1
58810-53070C7

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM1#

 1
58810-53080C6

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM0#

 1
58810-53070C8

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#

 1
58810-53080C6

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM0#

 1
58810-53060C7

GSE2#

BLACK,TRIM1#

 1
58810-53080C8

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM1#

 1
58810-53081C7

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#

 1
58810-53081C7

GSE2#

VERSION I *(I),BLACK,TRIM27

 1
58810-53081C6

GSE2#

VERSION I *(I),BLACK,TRIM04

 1
58810-53081C8

GSE2#

VERSION I *(I),BLACK,TRIM11

 1
58810-53080C7

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM2#

 1
58810-53081C7

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM2#

 1
58810-5306123

GSE2#

BLACK,TRIM2#

 1
58810-53070C6

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM0#

 1
58810-53061C7

GSE2#

BLACK,TRIM1#

 1
58810-53071C7

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM1#

 1
58810-53081C6

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM0#

 1
58810-53061C6

GSE2#

BLACK,TRIM0#

 1
58810-53071C8

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#

 1
58810-5306023

GSE2#

BLACK,TRIM2#

 1
58810-53071C6

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM0#

 1
58810-5308122

GSE2#

Elegant White Interior *(W),BLACK,MELLOW WHITE,TRIM29

 1
58810-53081C6

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM0#

 1
58810-53081C8

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM1#

 1
58810-53081C8

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

GSE2#

 8
58821C - PANEL, CONSOLE, UPPER
58804-53080C2

GSE2#

VERSION I *(I),BLACK & LT.BROWN,TRIM04,11,27

 1
58804-53080C1

GSE2#

VERSION I *(I),BLACK,TRIM05,12,28

 1
58804-53080C1

GSE2#

VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM0#,1#,2#

 1
58804-53080C2

GSE2#

VERSION I *(I),BLACK & LT.BROWN,TRIM04,11,27

 1
58804-53080C2

GSE2#

VERSION I *(I),BLACK & LT.BROWN,TRIM04,11,27

 1
58804-53060C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58833B - GARNISH, CONSOLE UPPER PANEL, NO.1
58833-53090

GSE2#

 1
58834B - GARNISH, CONSOLE UPPER PANEL, NO.2
58834-53080

GSE2#

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-53090C1

GSE2#

VERSION L,BLACK,TRIM2#

 1
58905-53090A2

GSE2#

VERSION L,IVORY,TRIM0#

 1
58905-53080C3

GSE20,21

VERSION S,BLACK,TRIM2#

 1
58905-53090A2

GSE2#

VERSION I *(I),IVORY,TRIM04

 1
58905-53080B3

GSE20,21

VERSION S,FROSTY GRAY,TRIM1#

 1
58905-53090C1

GSE2#

VERSION I *(I),BLACK,TRIM27

 1
58905-53090B2

GSE2#

VERSION L,FROSTY GRAY,TRIM1#

 1
58905-53070B2

GSE2#

FROSTY GRAY,TRIM1#

 1
58905-53070B3

GSE2#

DK.GRAY,TRIM2#

 1
58905-53080A3

GSE20,21

VERSION S,IVORY,TRIM0#

 1
58905-53070A2

GSE2#

IVORY,TRIM0#

 1
58905-53090B2

GSE2#

VERSION I *(I),FROSTY GRAY,TRIM11

 1
58905-53090C1

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#

 1
58905-53090A4

GSE2#

Elegant White Interior *(W),MELLOW WHITE,TRIM29

 1
58905-53090A2

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,IVORY,TRIM0#

 1
58905-53090B2

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,FROSTY GRAY,TRIM1#

 1
58905-53090C1

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,BLACK,TRIM2#

 1
58905-53090B2

GSE20,21

ﾌﾛﾝﾄｼｰﾄ−ｽﾑｰｽ本革,FROSTY GRAY,TRIM1#

 1
58905-53090A2

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,IVORY,TRIM0#

 1
58905-53080C3

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#

 1
58905-53080A3

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,IVORY,TRIM0#

 1
58905-53080B3

GSE2#

ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,FROSTY GRAY,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-53040B4

GSE2#

FROSTY GRAY,TRIM1#

 1
58908-53041A5

GSE2#

Elegant White Interior *(W),MELLOW WHITE,TRIM29

 1
58908-53041C3

GSE2#

BLACK,TRIM2#

 1
58908-53040A3

GSE2#

IVORY,TRIM0#

 1
58908-53040C3

GSE2#

BLACK,TRIM2#

 1
58908-53041B4

GSE2#

FROSTY GRAY,TRIM1#

 1
58908-53041A3

GSE2#

IVORY,TRIM0#

 1
58944A - COVER, CONSOLE, REAR
58944-53010C0

GSE2#

BLACK,TRIM0#,1#,2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

GSE2#

 2
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-53050

GSE2#

 1
Common parts
90159-50327
90161-30003
90168-40121
90183-05032
90468-04177
90468-05135
91635-40616
91651-60618
93560-54010
Linked diagrams
7404
8121
8401
8601
8715
