GSE20-AETLH (2008)

Toyota Lexus Is250/350

Production Aug 2008 - Aug 2010
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0508-0908)

Click highlighted areas on diagram

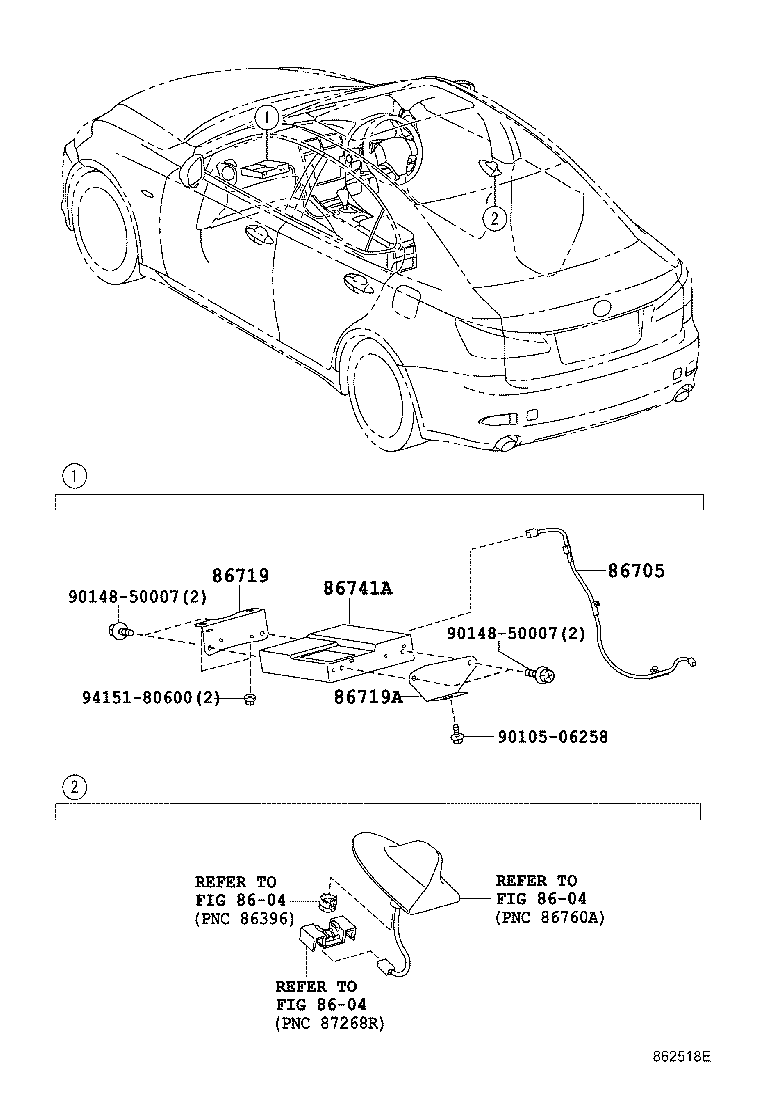

diagram 8604 8604 8604 86705 86719 86719A 86741A 9010506258 9014850007 9014850007 9415180600
Part # Description Qty Price
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-53020

GSE20,25

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−無し

 1
86705-53090

GSE2#

 1
86705-53020

GSE2#

 1
86705-53020

GSE2#

 1
86719 - BRACKET, TELEPHONE
86719-30250

GSE2#

 1
86719-30250

GSE2#

 1
86719-30250

GSE20,25

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−無し

 1
86719A - BRACKET, TELEPHONE NO.1
86719-53010

GSE20,25

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−無し

 1
86719-53010

GSE2#

 1
86719-53010

GSE2#

 1
86719-53060

GSE2#

 1
86741A - TRANSCEIVER, TELEMATICS
86741-53010

GSE2#

 1
86741-30040

GSE2#

 1
86741-30010

GSE2#

 1
86741-30010

GSE20,25

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−無し

 1
Common parts
90105-06258
90148-50007
94151-80600
Linked diagrams
8604
