GSE20-AETLH (2008)
Toyota Lexus Is250/350

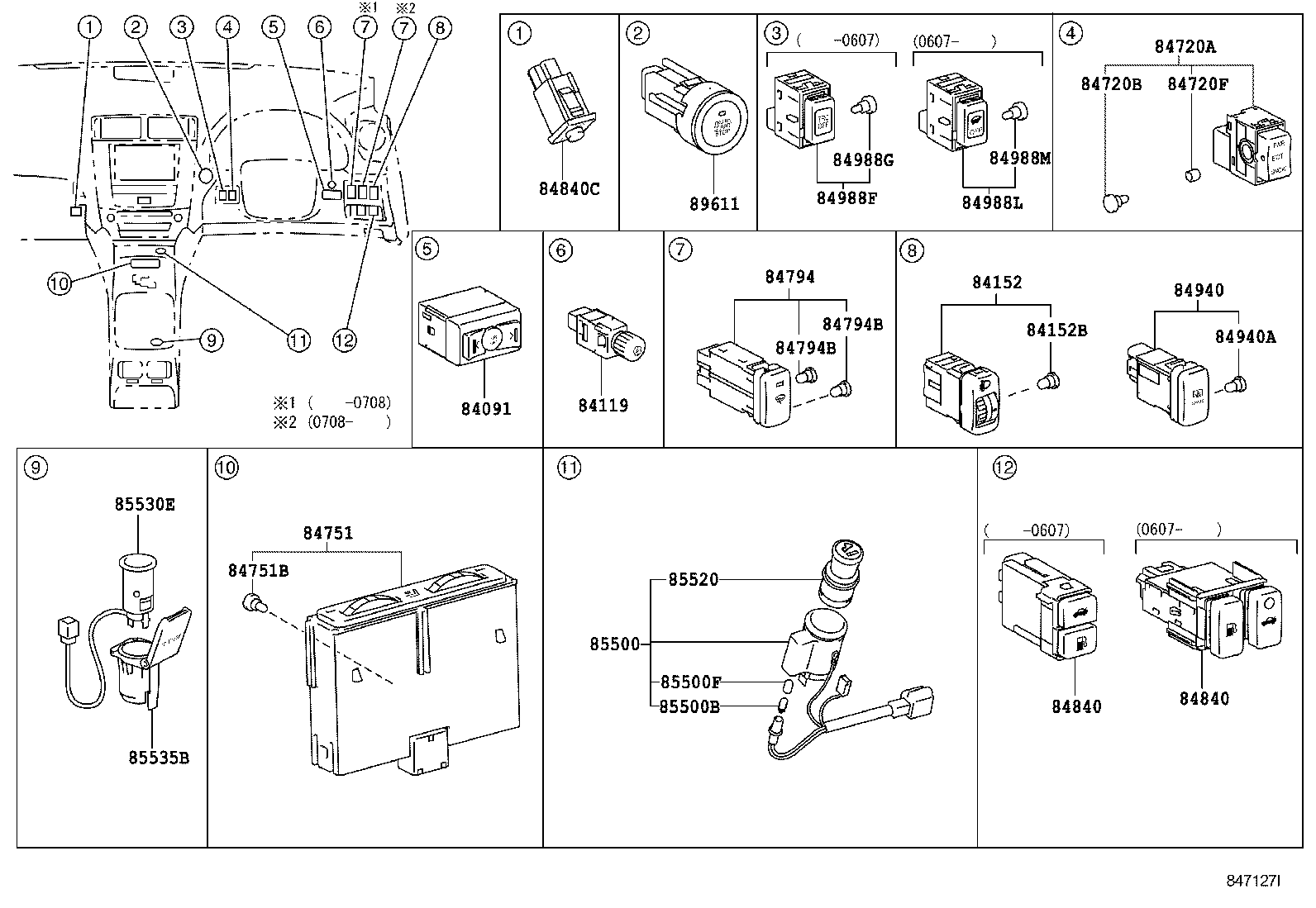

ILLUST NO. 5 OF 8(0508-1108)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-53010 |
GSE2# |
1 | ||
| 84091-53010 |
GSE2# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-48010 |
GSE2# |
1 | ||
| 84119-48010 |
GSE2# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-53020 |
GSE20 ﾍｯﾄﾞﾗﾝﾌﾟ−4灯ﾊﾛｹﾞﾝ ﾚﾍﾞﾘﾝｸﾞ付き |
1 | ||
| 84152-53020 |
GSE20,25 ﾍｯﾄﾞﾗﾝﾌﾟ−4灯ﾊﾛｹﾞﾝ ﾚﾍﾞﾘﾝｸﾞ付き |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08107 |
GSE20,25 14V 40MA,ｸﾞﾘｰﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−4灯ﾊﾛｹﾞﾝ ﾚﾍﾞﾘﾝｸﾞ付き |
1 | ||
| 90010-08107 |
GSE20 14V 40MA,ｸﾞﾘｰﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−4灯ﾊﾛｹﾞﾝ ﾚﾍﾞﾘﾝｸﾞ付き |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-30330 |
GSE2# |
1 | ||
| 84720-30330 |
GSE2# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GSE2# 14V 0.56W |
1 | ||
| 84999-10710 |
GSE2# 14V 0.56W |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GSE2# |
1 | ||
| 84998-10670 |
GSE2# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30190 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84751-30180 |
GSE2# ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84751-30190 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84751-30180 |
GSE20,21 VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 90010-01070 |
GSE2# 14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 90010-01070 |
GSE20,21 14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾ~ｱﾆﾘﾝ本革 |
1 | ||
| 90010-01070 |
GSE20,21 14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VdRSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 90010-01070 |
GSE20,21 14V 1.8W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VdRSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-33020 |
GSE2# 寒冷地仕様 |
1 | ||
| 84794-33020 |
GSE2# 寒冷地仕様 |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
GSE2# 14V 0.91W,寒冷地仕様 |
1 | ||
| 90010-01061 |
GSE2# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84999-10310 |
GSE2# 14V 0.91W,寒冷地仕様 |
1 | ||
| 90010-01061 |
GSE2# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84794B - BULB, FR WIPER DEICER SWITCH | ||||
| 84999-10310 |
GSE2# 14V 0.91W,寒冷地仕様 |
1 | ||
| 90010-01061 |
GSE2# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84999-10310 |
GSE2# 14V 0.91W,寒冷地仕様 |
1 | ||
| 90010-01061 |
GSE2# 14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,寒冷地仕様 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33050 |
GSE2# |
1 | ||
| 84840-33080 |
GSE2# |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33050 |
GSE2# |
1 | ||
| 84840-33080 |
GSE2# |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GSE2# |
1 | ||
| 84840-24020 |
GSE2# |
1 | ||
| 84940 - SWITCH ASSY, CURTAIN | ||||
| 84940-22010 |
GSE2# VERSION L |
1 | ||
| 84940-22010 |
GSE2# VERSION L |
1 | ||
| 84940A - BULB, CURTAIN SWITCH | ||||
| 90010-01062 |
GSE2# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,VERSION L |
1 | ||
| 90010-01062 |
GSE2# 14V0.63W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,VERSION L |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-30130 |
GSE20,21 |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
GSE20,21 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-30140 |
GSE2# |
1 | ||
| 84988M - BULB, VSC OFF SWITCH | ||||
| 90010-01137 |
GSE2# 14V 0.63W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30520 |
GSE2# |
1 | ||
| 85500-30520 |
GSE2# 灰皿−ﾌﾛﾝﾄ/無し､ﾘﾔ/有り |
1 | ||
| 85500-30520 |
GSE2# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01111 |
GSE2# 13.5V 2W |
1 | ||
| 90010-01111 |
GSE2# 13.5V 2W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GSE2# |
1 | ||
| 84998-10510 |
GSE2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GSE2# |
1 | ||
| 85520-89101 |
GSE2# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-53050 |
GSE2# |
1 | ||
| 85530-53040 |
GSE2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-50020 |
GSE2# |
1 | ||
| 85535-50020 |
GSE2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30021 |
GSE2# |
1 | ||
| 89611-30022 |
GSE2# |
1 | ||
| 89611-30020 |
GSE2# |
1 | ||

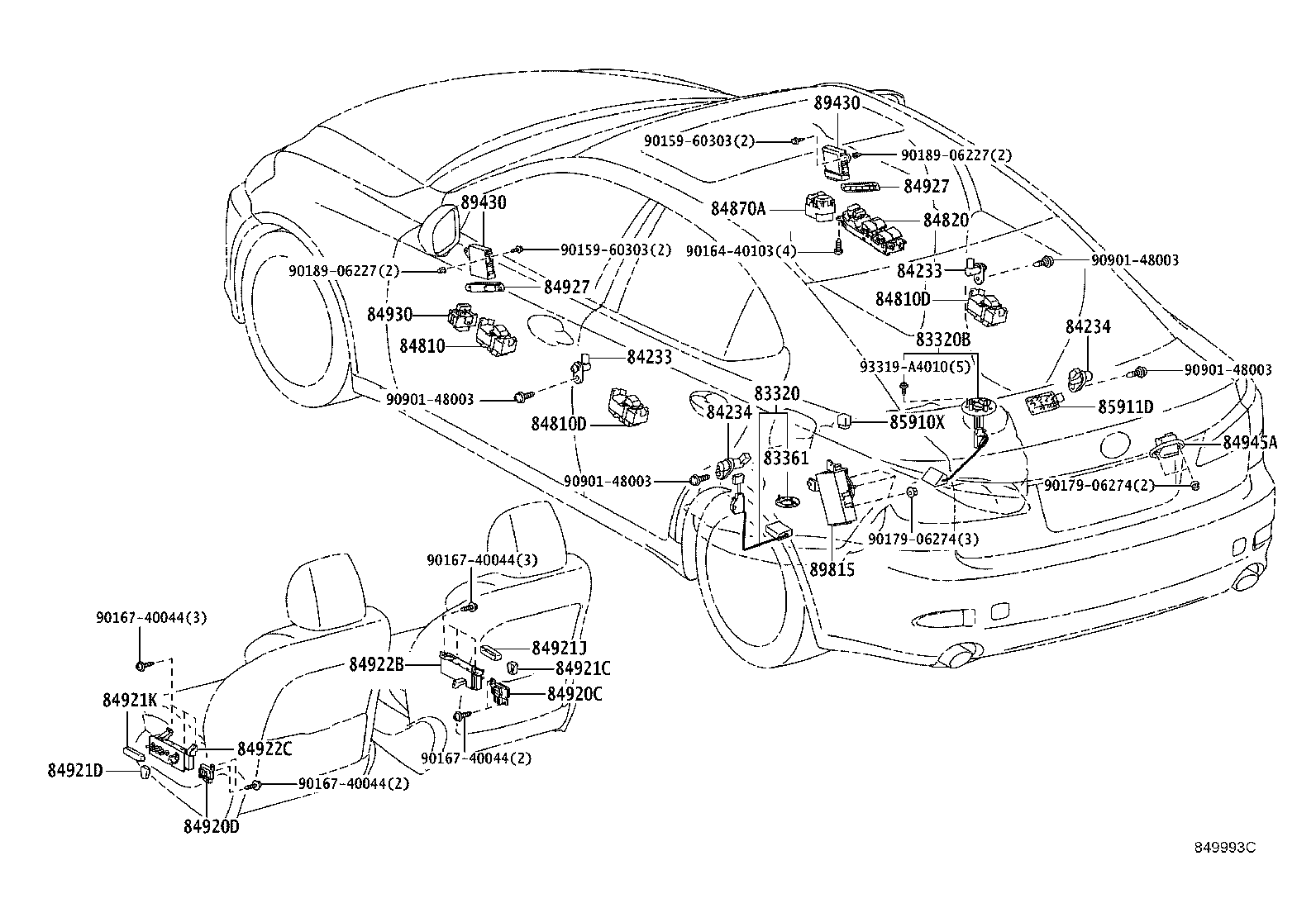

ILLUST NO. 8 OF 8(0808- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-53010 |
GSE2# |
1 | ||
| 83320-53010 |
GSE2# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-59515 |
GSE2# |
1 | ||
| 83320-59515 |
GSE2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GSE2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GSE2# |
2 | ||
| 84231-50190 |
GSE2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33110 |
GSE2# |
1 | ||
| 84030-53030 |
GSE2# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-53030 |
GSE2# |
2 | ||
| 84810-33110 |
GSE2# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-53030 |
GSE2# |
2 | ||
| 84810-33110 |
GSE2# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-53170 |
GSE2# |
1 | ||
| 84040-53100 |
GSE2# |
1 | ||
| 84040-53070 |
GSE2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-53020 |
GSE20,21 VERSION S |
1 | ||
| 84872-48020 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84872-52040 |
GSE2# |
1 | ||
| 84872-48020 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 84872-53020 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84872-53020 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84872-53020 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84872-58010 |
GSE2# |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-30240C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84920-30240B2 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30240B2 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30240A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84920-30240A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84920-30240C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84920-30240E2 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84920-30240C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-30250A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84920-30250A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84920-30250B1 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30250C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84920-30250B1 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84920-30250C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84920-30250C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84920-30250E0 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-53030A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53030B0 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030A0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53030B0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030E1 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84921-53030C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84921-53030C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53030B0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53030A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84921-53030C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84921-53030C0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-53040B0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84921-53040C0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53040C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53040B0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84921-53040E1 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84921-53040C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84921-53040A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53040B0 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53040A0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-53010B0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010A0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53010C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53010C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84921-53010C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84921-53010C0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53010E1 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84921-53010A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53010B0 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53010A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84921-53010B0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-53020A0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53020B0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020C0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84921-53020A0 |
GSE2# IVORY,TRIM0# |
1 | ||
| 84921-53020A0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,IVORY,TRIM0# |
1 | ||
| 84921-53020E1 |
GSE2# ORCHID BROWN,TRIM0# |
1 | ||
| 84921-53020B0 |
GSE2# FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020C0 |
GSE2# BLACK,TRIM1#,2# |
1 | ||
| 84921-53020C0 |
GSE2# BLACK,TRIM2# |
1 | ||
| 84921-53020B0 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,FROSTY GRAY,TRIM1# |
1 | ||
| 84921-53020C0 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ,BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-53030 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84070-53070 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84922-58010 |
GSE2# |
1 | ||
| 84070-53030 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 84070-53070 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84070-53070 |
GSE20,21 VERSION S |
1 | ||
| 84922-58010 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ |
1 | ||
| 84070-53070 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84922-58010 |
GSE2# |
1 | ||
| 84922-58010 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-53040 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84070-53040 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ |
1 | ||
| 84922-60120 |
GSE20,25 ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ |
1 | ||
| 84922-60120 |
GSE2# |
1 | ||
| 84922-60120 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾌﾛﾝﾄｼｰﾄ−ﾌｧﾌﾞﾘｯｸ,ﾏﾆｭｱﾙｼｰﾄ |
1 | ||
| 84070-53080 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 84070-53080 |
GSE20,21 VERSION S |
1 | ||
| 84922-60120 |
GSE2# |
1 | ||
| 84070-53080 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84070-53080 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53010B0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,FROSTY GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010A0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,IVORY,TRIM0#,右側 |
1 | ||
| 84927-53010B0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,FROSTY GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010C0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020C0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53010A0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,IVORY,TRIM0#,右側 |
1 | ||
| 84927-53020B0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,FROSTY GRAY,TRIM1#,左側 |
1 | ||
| 84927-53020C0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION S,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020B0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,FROSTY GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION S,LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010C0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030A0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION S,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53040A0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040B0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION S,ECRU,TRIM0#,左側 |
1 | ||
| 84927-53030B0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53030C0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020A0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,IVORY,TRIM0#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION S,LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION S,ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53020A0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,IVORY,TRIM0#,左側 |
1 | ||
| 84927-53040C0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,右側 |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-53010B0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,FROSTY GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010A0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,IVORY,TRIM0#,右側 |
1 | ||
| 84927-53010B0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,FROSTY GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010C0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020C0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53010A0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,IVORY,TRIM0#,右側 |
1 | ||
| 84927-53020B0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,FROSTY GRAY,TRIM1#,左側 |
1 | ||
| 84927-53020C0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION S,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020B0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,FROSTY GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION S,LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53010C0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030A0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION S,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53040A0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040B0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION S,ECRU,TRIM0#,左側 |
1 | ||
| 84927-53030B0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53030C0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,右側 |
1 | ||
| 84927-53020A0 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ,IVORY,TRIM0#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION S,LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION S,ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53020A0 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,IVORY,TRIM0#,左側 |
1 | ||
| 84927-53040C0 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革,BLACK,TRIM2#,左側 |
1 | ||
| 84927-53040A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,左側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,右側 |
1 | ||
| 84927-53040B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,左側 |
1 | ||
| 84927-53030B0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),LT.GRAY,TRIM1#,右側 |
1 | ||
| 84927-53040C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,左側 |
1 | ||
| 84927-53030C0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),BLACK,TRIM2#,右側 |
1 | ||
| 84927-53030A0 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ),ECRU,TRIM0#,右側 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-30070 |
GSE2# |
1 | ||
| 84930-48030 |
GSE2# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-53010 |
GSE2# |
1 | ||
| 84945-53010 |
GSE2# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
GSE2# |
1 | ||
| 90987-02027 |
GSE2# |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-50010 |
GSE2# VERSION L |
1 | ||
| 85911-50010 |
GSE2# VERSION L |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53010 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
2 | ||
| 89430-53010 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 89430-53060 |
GSE20,21 VERSION S |
2 | ||
| 89430-53060 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
2 | ||
| 89430-53060 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
2 | ||
| 89430-53060 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
2 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-53010 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
2 | ||
| 89430-53010 |
GSE20,21 VERSION S&ﾌﾛﾝﾄｼｰﾄ−ﾇﾊﾞｯｸ調ﾌｧﾌﾞﾘｯｸ(ｽﾎﾟｰﾂｼｰﾄ),ﾊﾟﾜｰｼｰﾄ |
2 | ||
| 89430-53060 |
GSE20,21 VERSION S |
2 | ||
| 89430-53060 |
GSE2# VERSION L&ﾌﾛﾝﾄ ｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
2 | ||
| 89430-53060 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(ﾌｧﾌﾞﾘｯｸ､ﾊﾟﾜｰｼｰﾄ) |
2 | ||
| 89430-53060 |
GSE20,21 VERSION F&ﾌﾛﾝﾄ ｼｰﾄ−VERSION F(本革､ﾊﾟﾜｰｼｰﾄ) |
2 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-53010 |
GSE2# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式) |
1 | ||
| 89810-53010 |
GSE2# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式) |
1 | ||
| 89810-53010 |
GSE2# ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB & *PBA & *PB) |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
