GSE20-AETLH (2008)
Toyota Lexus Is250/350

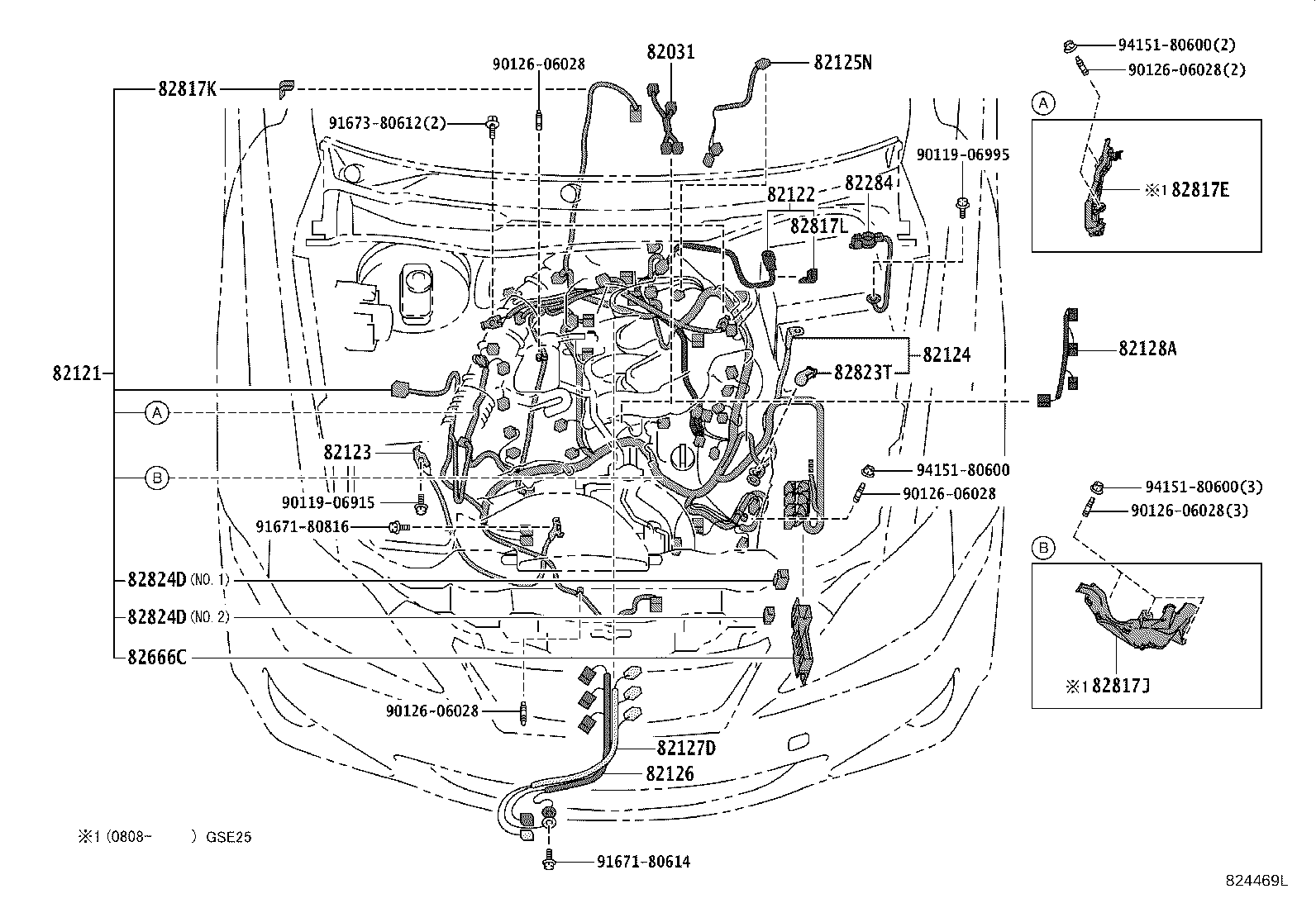

ILLUST NO. 2 OF 9(0508-1208)
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GSE20,25 |
1 | ||
| 82031-22150 |
GSE20,25 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-53270 |
GSE20 |
1 | ||
| 82121-53300 |
GSE20 寒冷地仕様 |
1 | ||
| 82121-53272 |
GSE20 |
1 | ||
| 82121-53302 |
GSE20 寒冷地仕様 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-22570 |
GSE2# |
1 | ||
| 82122-22570 |
GSE2# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GSE2# |
1 | ||
| 82123-30490 |
GSE2# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30290 |
GSE2# |
1 | ||
| 82124-30290 |
GSE2# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GSE20,25 |
1 | ||
| 82125-30500 |
GSE20,25 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30010 |
GSE20,25 |
1 | ||
| 82126-30010 |
GSE20,25 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30010 |
GSE20,25 |
1 | ||
| 82127-30010 |
GSE20,25 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30010 |
GSE2# |
1 | ||
| 82284-30010 |
GSE2# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GSE2# |
1 | ||
| 82666-30740 |
GSE2# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2A730 |
GSE2# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-30A80 |
GSE2# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12860 |
GSE2# |
1 | ||
| 82817-12860 |
GSE2# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GSE2# |
1 | ||
| 82823-52010 |
GSE2# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GSE2# NO.2 |
1 | ||
| 82824-30180 |
GSE2# NO.1 |
1 | ||
| 82824-52080 |
GSE2# NO.2 |
1 | ||
| 82824-30180 |
GSE2# NO.1 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GSE2# NO.2 |
1 | ||
| 82824-30180 |
GSE2# NO.1 |
1 | ||
| 82824-52080 |
GSE2# NO.2 |
1 | ||
| 82824-30180 |
GSE2# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90126-06028 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||

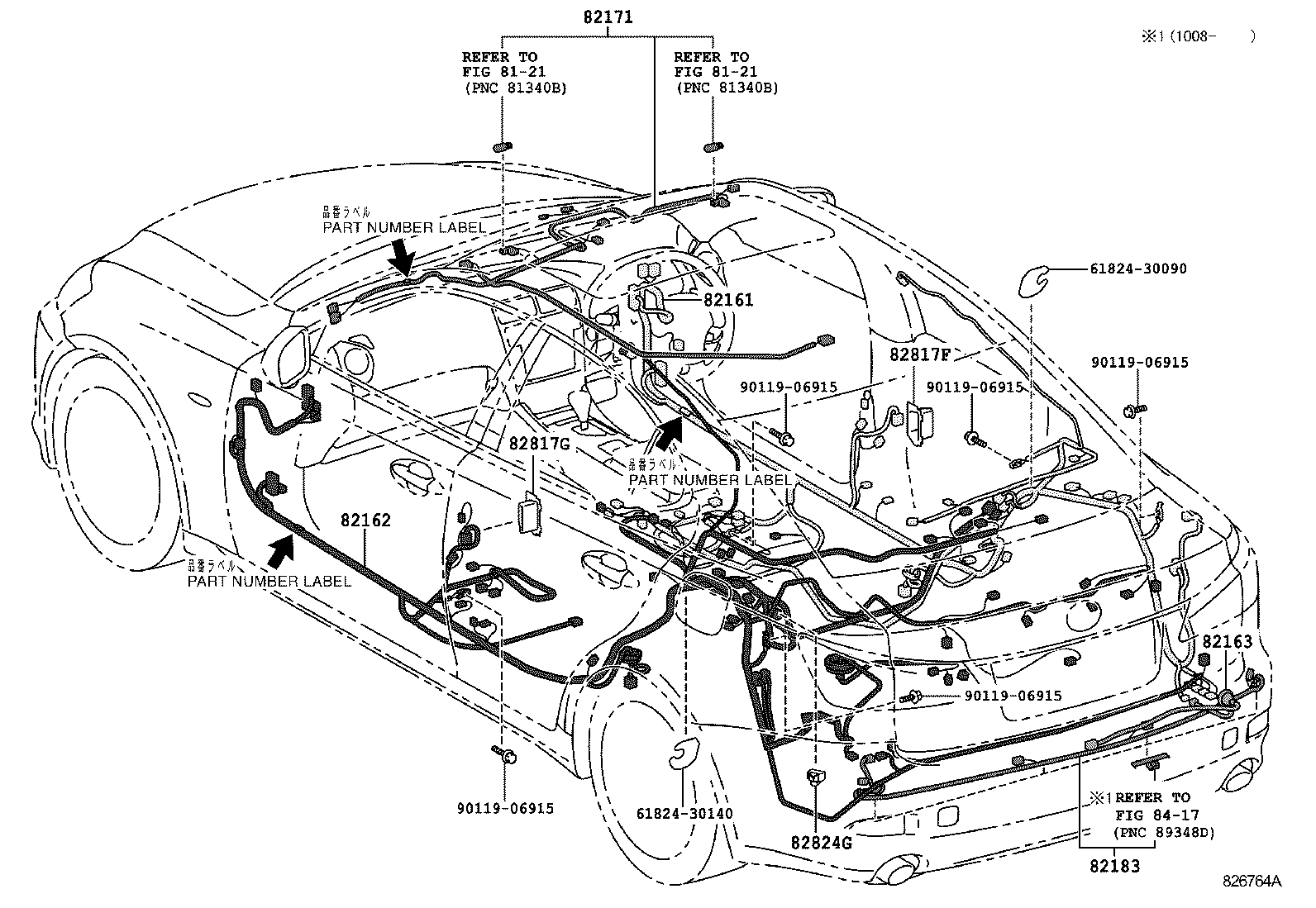

ILLUST NO. 5 OF 9(0908- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-53670 |
GSE20 ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82161-53691 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53681 |
GSE2# |
1 | ||
| 82161-53690 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53690 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53690 |
1 | ||
| 82161-53692 |
GSE2# ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53680 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53680 |
1 | ||
| 82161-53691 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53691 |
1 | ||
| 82161-53692 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53692 |
1 | ||
| 82161-53682 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53682 |
1 | ||
| 82161-53670 |
GSE20 品番ﾗﾍﾞﾙ=82161−53670 |
1 | ||
| 82161-53680 |
GSE2# |
1 | ||
| 82161-53682 |
GSE2# |
1 | ||
| 82161-53681 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53681 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-53740 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53740 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53732 |
GSE2# |
1 | ||
| 82162-53741 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53742 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53730 |
GSE2# |
1 | ||
| 82162-53731 |
GSE2# |
1 | ||
| 82162-53742 |
GSE2# ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53741 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53742 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53742 |
1 | ||
| 82162-53732 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53732 |
1 | ||
| 82162-53731 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53731 |
1 | ||
| 82162-53730 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53730 |
1 | ||
| 82162-53740 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53740 |
1 | ||
| 82162-53741 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53741 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-53020 |
GSE2# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-53400 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構)&ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82171-53370 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53380 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82171-53371 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53310 |
GSE2# |
1 | ||
| 82171-53302 |
GSE20,25 ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 82171-53311 |
GSE2# |
1 | ||
| 82171-53312 |
GSE2# |
1 | ||
| 82171-53372 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53400 |
GSE20 品番ﾗﾍﾞﾙ=82171−53400 |
1 | ||
| 82171-53380 |
GSE20 品番ﾗﾍﾞﾙ=82171−53380 |
1 | ||
| 82171-53342 |
GSE20,25 ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ&ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53311 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53311 |
1 | ||
| 82171-53302 |
GSE20,25 品番ﾗﾍﾞﾙ=82171−53302 |
1 | ||
| 82171-53312 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53312 |
1 | ||
| 82171-53310 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53310 |
1 | ||
| 82171-53372 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53372 |
1 | ||
| 82171-53370 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53370 |
1 | ||
| 82171-53371 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53371 |
1 | ||
| 82171-53342 |
GSE20,25 品番ﾗﾍﾞﾙ=82171−53342 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-53010 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-53040 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-53010 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-1A761 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-53240 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-53240 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-1A761 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-1A830 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-53250 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-53250 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-1A830 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50230 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 82824-50220 |
GSE2# |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82824-50230 |
GSE2# VERSION L |
1 | ||
| 82824-50220 |
GSE2# |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30140 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||

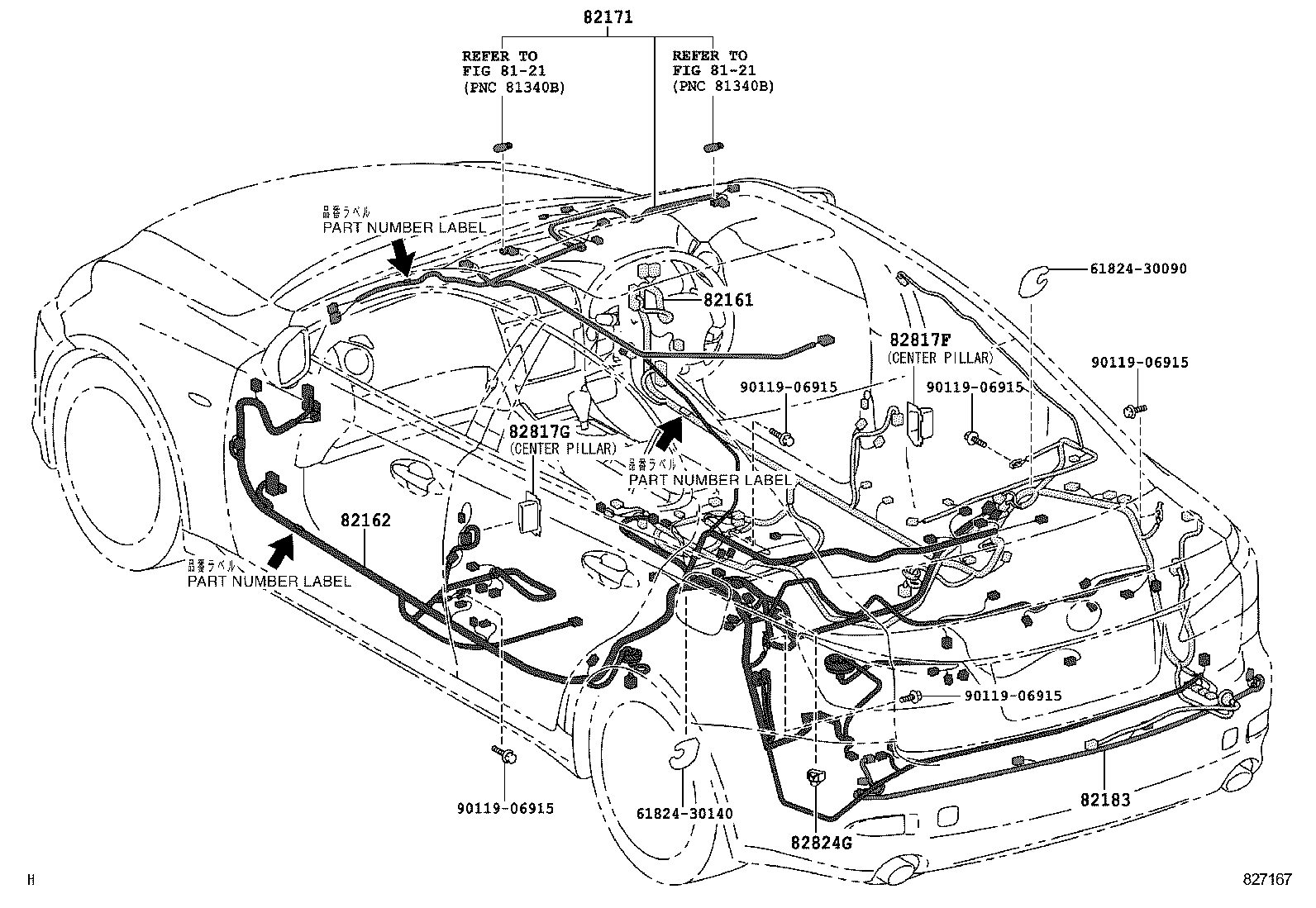

ILLUST NO. 5 OF 9(0508-0908)
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-53670 |
GSE20 ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82161-53691 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53681 |
GSE2# |
1 | ||
| 82161-53690 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53690 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53690 |
1 | ||
| 82161-53692 |
GSE2# ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82161-53680 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53680 |
1 | ||
| 82161-53691 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53691 |
1 | ||
| 82161-53692 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53692 |
1 | ||
| 82161-53682 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53682 |
1 | ||
| 82161-53670 |
GSE20 品番ﾗﾍﾞﾙ=82161−53670 |
1 | ||
| 82161-53680 |
GSE2# |
1 | ||
| 82161-53682 |
GSE2# |
1 | ||
| 82161-53681 |
GSE2# 品番ﾗﾍﾞﾙ=82161−53681 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-53740 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53740 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53732 |
GSE2# |
1 | ||
| 82162-53741 |
GSE2# ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53742 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53730 |
GSE2# |
1 | ||
| 82162-53731 |
GSE2# |
1 | ||
| 82162-53742 |
GSE2# ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53741 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82162-53742 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53742 |
1 | ||
| 82162-53732 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53732 |
1 | ||
| 82162-53731 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53731 |
1 | ||
| 82162-53730 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53730 |
1 | ||
| 82162-53740 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53740 |
1 | ||
| 82162-53741 |
GSE2# 品番ﾗﾍﾞﾙ=82162−53741 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-53400 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構)&ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82171-53370 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53380 |
GSE20 ﾍﾙﾌﾟﾈｯﾄ無し&ｵｰﾃﾞｨｵ−AM/FM CD&MD 13ｽﾋﾟｰｶ & ﾅﾋﾞｹﾞｰｼｮﾝ無 |
1 | ||
| 82171-53371 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53310 |
GSE2# |
1 | ||
| 82171-53302 |
GSE20,25 ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 82171-53311 |
GSE2# |
1 | ||
| 82171-53312 |
GSE2# |
1 | ||
| 82171-53372 |
GSE2# ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53400 |
GSE20 品番ﾗﾍﾞﾙ=82171−53400 |
1 | ||
| 82171-53380 |
GSE20 品番ﾗﾍﾞﾙ=82171−53380 |
1 | ||
| 82171-53342 |
GSE20,25 ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ&ﾑｰﾝﾙｰﾌ−有り(電動ｽﾗｲﾄﾞ 挟み込み防止機構) |
1 | ||
| 82171-53311 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53311 |
1 | ||
| 82171-53302 |
GSE20,25 品番ﾗﾍﾞﾙ=82171−53302 |
1 | ||
| 82171-53312 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53312 |
1 | ||
| 82171-53310 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53310 |
1 | ||
| 82171-53372 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53372 |
1 | ||
| 82171-53370 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53370 |
1 | ||
| 82171-53371 |
GSE2# 品番ﾗﾍﾞﾙ=82171−53371 |
1 | ||
| 82171-53342 |
GSE20,25 品番ﾗﾍﾞﾙ=82171−53342 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-53010 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-53040 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-53010 |
GSE2# ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-1A761 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-53240 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-53240 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-1A761 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-1A830 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82817-53250 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-53250 |
GSE2# ｶｳﾙ側 |
1 | ||
| 82817-1A830 |
GSE2# ｾﾝﾀﾋﾟﾗｰ |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50230 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革 |
1 | ||
| 82824-50220 |
GSE2# |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ﾌﾛﾝﾄｼｰﾄ−ｾﾐｱﾆﾘﾝ本革&ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ ﾌﾟﾚﾐｱﾑｻﾗｳﾝﾄﾞｻｳﾝﾄﾞｼｽﾃﾑ 14ｽﾋﾟｰｶ |
1 | ||
| 82824-50230 |
GSE2# VERSION L |
1 | ||
| 82824-50220 |
GSE2# |
1 | ||
| 82824-50230 |
GSE2# VERSION L&ｵｰﾃﾞｨｵ−AM/FM,DVDﾁｪﾝｼﾞｬ 5.1CH 14ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30140 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
