GSE20-AETLH (2008)

Toyota Lexus Is250/350

Production Aug 2008 - Aug 2010
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808-1008)

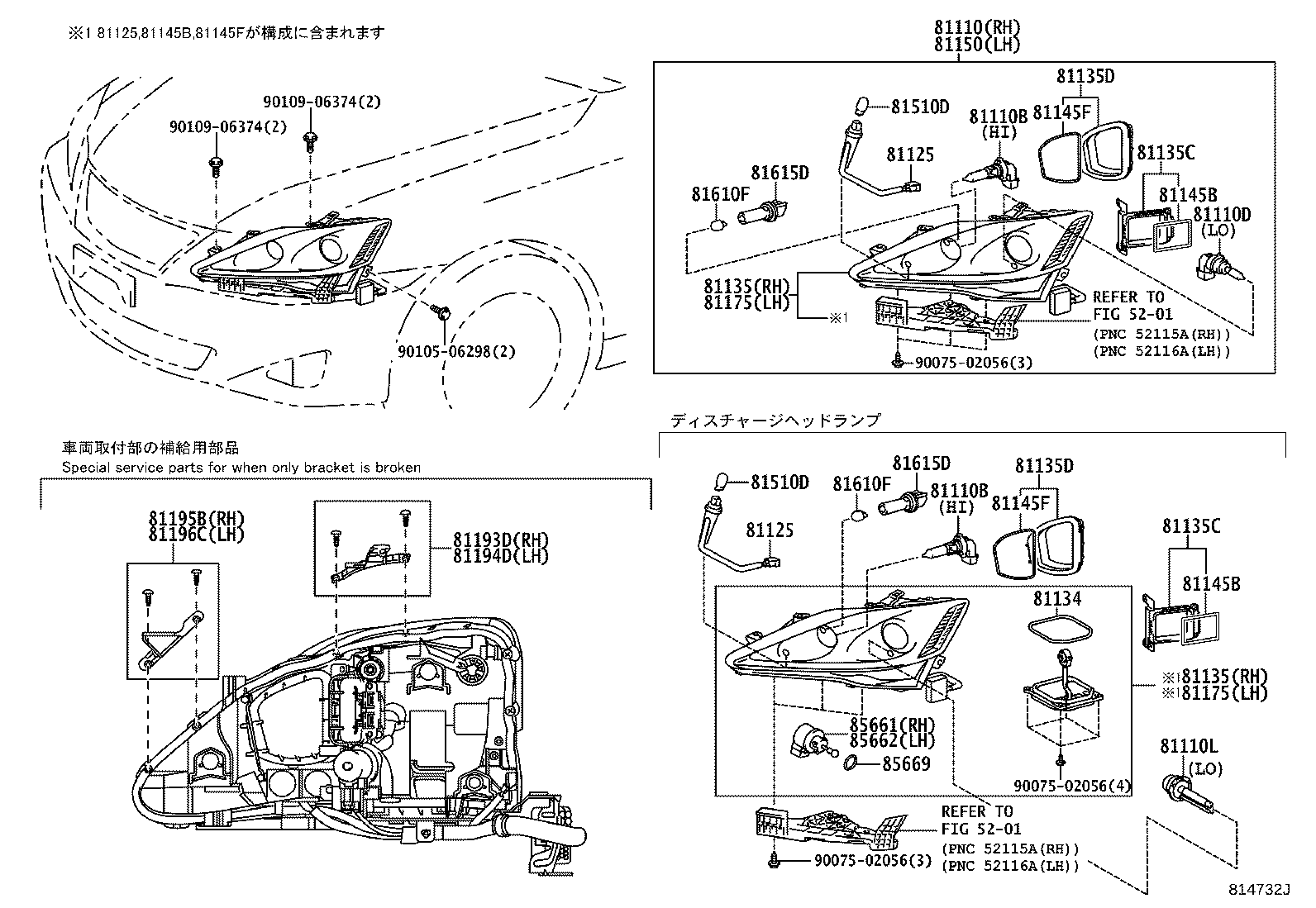

Click highlighted areas on diagram

diagram 5201 5201 81110 81110B 81110B 81110D 81110L 81125 81125 81134 81135 81135 81135C 81135C 81135D 81135D 81145B 81145B 81145F 81145F 81150 81175 81175 81193D 81194D 81195B 81196C 81510D 81510D 81610F 81610F 81615D 81615D 85661 85662 85669 9007502056 9007502056 9007502056 9010506298 9010906374 9010906374
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81110-53360

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-1304679

GSE2#

12V65W(SAE),60W(ECE)

 2
90981-1304679

GSE2#

12V65W(SAE),60W(ECE)

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-1304679

GSE2#

12V65W(SAE),60W(ECE)

 2
90981-1304679

GSE2#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-1307579

GSE20,25

12V 55W,ﾊﾛｹﾞﾝ,ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 2
90981-1307579

GSE20

12V 55W,ﾊﾛｹﾞﾝ,ﾍﾙﾌﾟﾈｯﾄ無し

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-2002479

GSE2#

42V 35W

 2
90981-2001379

GSE2#

45V 35W

 2
90981-2002179

GSE2#

45V 35W

 2
81125 - CORD, HEADLAMP
81126-53220

GSE2#

 2
81126-53220

GSE2#

 2
81125 - CORD, HEADLAMP
81126-53220

GSE2#

 2
81126-53220

GSE2#

 2
81134 - GASKET, HEADLAMP
90075-68007

GSE2#

 1
90075-68007

GSE2#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-53220

GSE2#

 1
81130-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81130-53250

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81140-53220

GSE2#

 1
81140-53351

GSE2#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-53220

GSE2#

 1
81130-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81130-53250

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81140-53220

GSE2#

 1
81140-53351

GSE2#

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-53270

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 2
81135-53240

GSE2#

 2
81135-53270

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 2
81135-53240

GSE2#

 2
81135C - COVER, HEADLAMP BACK, NO.1
81135-53270

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 2
81135-53240

GSE2#

 2
81135-53270

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 2
81135-53240

GSE2#

 2
81135D - COVER, HEADLAMP BACK, NO.2
81136-53240

GSE2#

右側

 1
81176-53240

GSE2#

左側

 1
81136-53240

GSE2#

右側

 1
81176-53240

GSE2#

左側

 1
81135D - COVER, HEADLAMP BACK, NO.2
81136-53240

GSE2#

右側

 1
81176-53240

GSE2#

左側

 1
81136-53240

GSE2#

右側

 1
81176-53240

GSE2#

左側

 1
81145B - GASKET, HEADLAMP COVER, NO.1
81132-53240

GSE2#

 1
81132-53240

GSE2#

 1
81145B - GASKET, HEADLAMP COVER, NO.1
81132-53240

GSE2#

 1
81132-53240

GSE2#

 1
81145F - GASKET, HEADLAMP COVER, NO.2
81134-53240

GSE2#

 1
81134-53240

GSE2#

 1
81145F - GASKET, HEADLAMP COVER, NO.2
81134-53240

GSE2#

 1
81134-53240

GSE2#

 1
81150 - HEADLAMP ASSY, LH
81150-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81150-53360

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81070-53351

GSE2#

 1
81070-53220

GSE2#

 1
81170-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81070-53220

GSE2#

 1
81170-53250

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81070-53351

GSE2#

 1
81070-53220

GSE2#

 1
81170-53250

GSE20

ﾍﾙﾌﾟﾈｯﾄ無し

 1
81070-53220

GSE2#

 1
81170-53250

GSE20,25

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

 1
81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81193-53020

GSE2#

 1
81193-53020

GSE2#

 1
81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194-53010

GSE2#

 1
81194-53010

GSE2#

 1
81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195-53010

GSE2#

 1
81195-53010

GSE2#

 1
81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81196-53020

GSE2#

 1
81196-53020

GSE2#

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-1502179

GSE2#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-1502179

GSE2#

12V 21W,ｱﾝﾊﾞｰ

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-1502179

GSE2#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-1502179

GSE2#

12V 21W,ｱﾝﾊﾞｰ

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-1205079

GSE2#

12V 5W

 2
99132-1205079

GSE2#

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-1205079

GSE2#

12V 5W

 2
99132-1205079

GSE2#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

GSE2#

 2
90075-60077

GSE2#

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

GSE2#

 2
90075-60077

GSE2#

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-48030

GSE2#

 1
85661-48030

GSE2#

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-48030

GSE2#

 1
85661-48030

GSE2#

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

GSE2#

 2
90075-99120

GSE2#

 2
Common parts
90075-02056
90105-06298
90109-06374
Linked diagrams
5201
