GSE20-AETLH (2008)

Toyota Lexus Is250/350

Production Aug 2008 - Aug 2010
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808-1008)

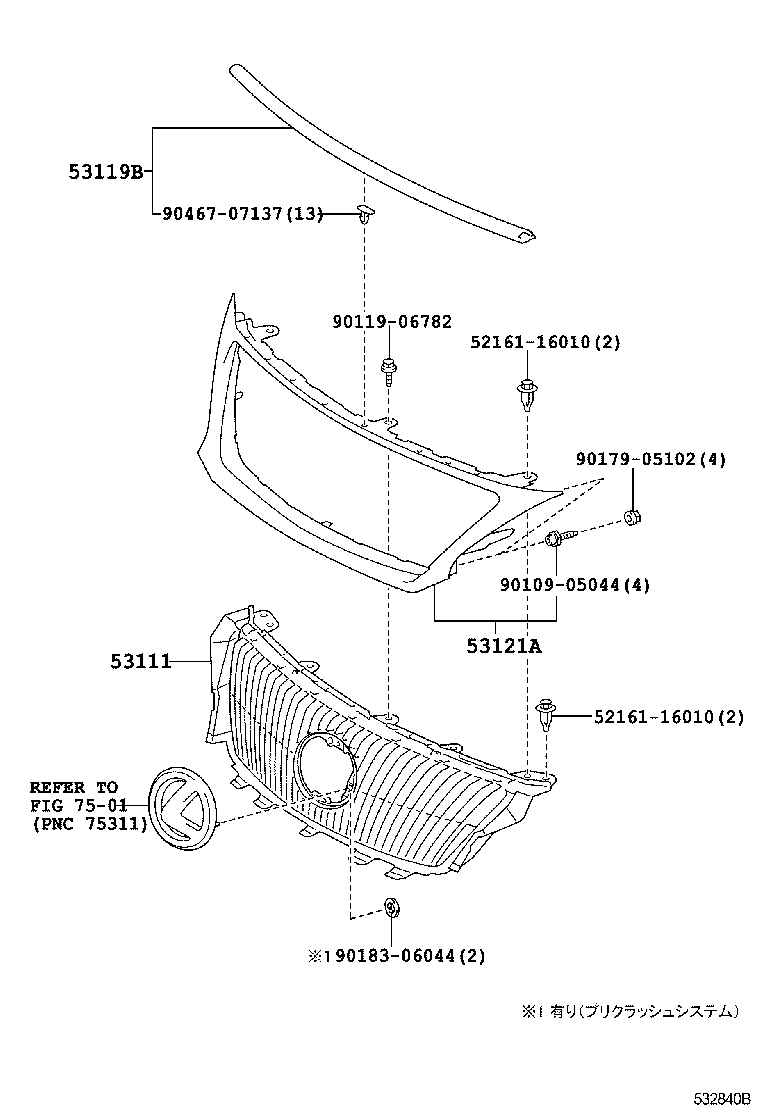

Click highlighted areas on diagram

diagram 5216116010 5216116010 53111 53119B 53121A 7501 9010905044 9011906782 9017905102 9018306044 9046707137
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-53120

GSE2#

塗装不要

 1
53112-53090

GSE2#

塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
53112-53070

GSE2#

塗装不要

 1
53112-53090

GSE20,25

塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB & *PBA & *PB)&ｸﾙ[ｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰ式)

 1
53112-53140

GSE20,21

塗装不要,VERSION F

 1
53112-53160

GSE20

塗装不要,VERSION F&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PSB & *PBA@& *PB)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰ式)

 1
53111-53140

GSE2#

塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式)

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-53010

GSE2#

 1
53119-53040

GSE2#

 1
53121A - MOULDING, RADIATOR GRILLE
53111-53190

GSE2#

 1
52711-53010

GSE2#

 1
Common parts
52161-16010
90109-05044
90119-06782
90179-05102
90183-06044
90467-07137
Linked diagrams
7501
