ANF10-AEXVB (2009)
Toyota Lexus Hs250h

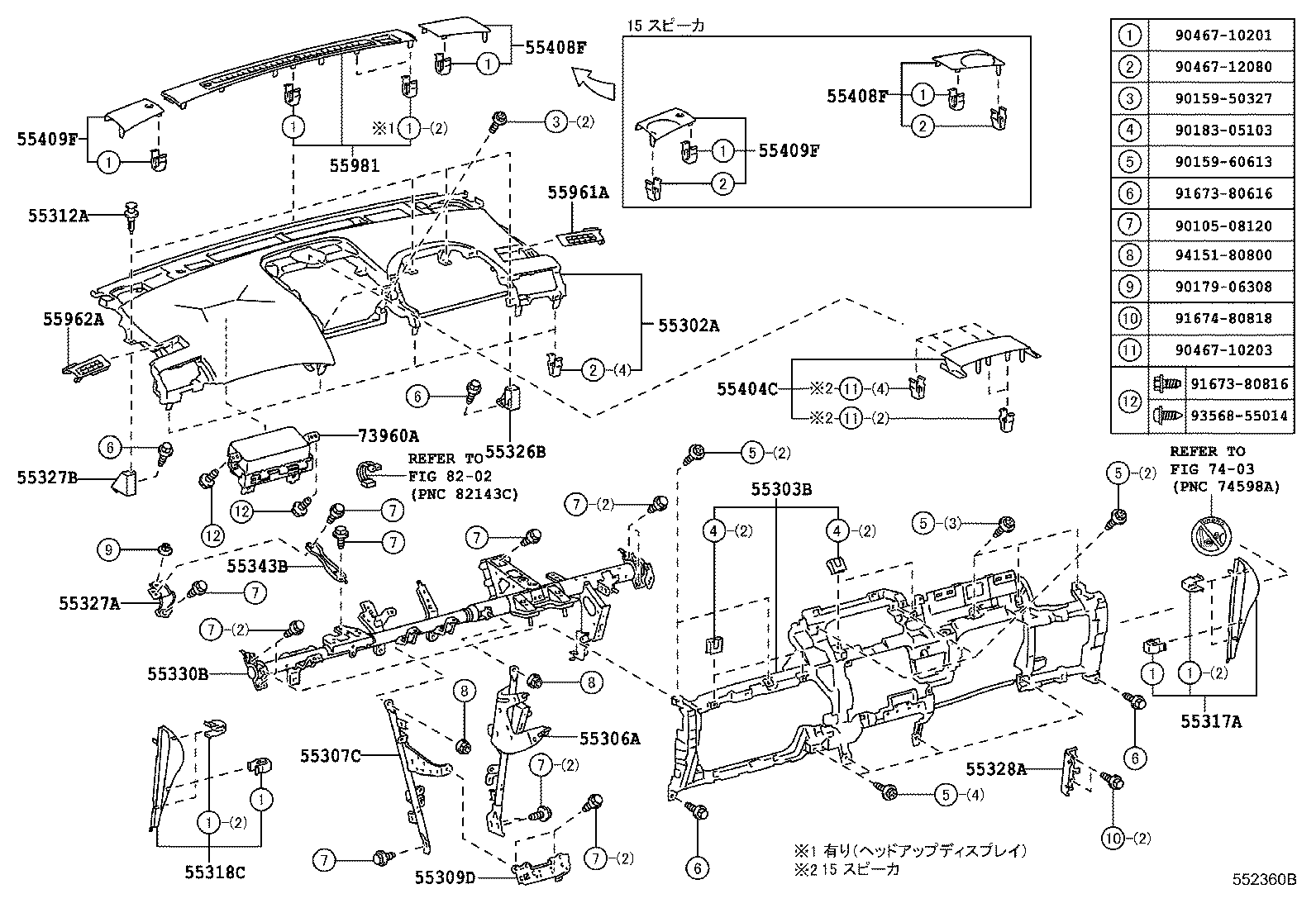

ILLUST NO. 1 OF 3(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-75020C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55302-75020E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-75020 |
ANF10 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-75020 |
ANF10 |
1 | ||
| 55306-75020 |
ANF10 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-75020 |
ANF10 |
1 | ||
| 55307-75020 |
ANF10 |
1 | ||
| 55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-75020 |
ANF10 |
1 | ||
| 55309-75020 |
ANF10 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ANF10 |
4 | ||
| 52161-16010 |
ANF10 |
4 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-75050C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55317-75050E0 |
ANF10 DK. BROWN,TRIM05,07 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55318-75030E0 |
ANF10 DK. BROWN,TRIM05,07 |
1 | ||
| 55326B - STAY, INSTRUMENT PANEL, RH | ||||
| 55326-75010 |
ANF10 |
1 | ||
| 55326-75010 |
ANF10 |
1 | ||
| 55327A - STAY, INSTRUMENT PANEL, NO.2 | ||||
| 55327-75010 |
ANF10 |
1 | ||
| 55327-75010 |
ANF10 |
1 | ||
| 55327B - STAY, INSTRUMENT PANEL, LH | ||||
| 55326-75020 |
ANF10 |
1 | ||
| 55326-75020 |
ANF10 |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-75010 |
ANF10 |
1 | ||
| 55328-75010 |
ANF10 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-75020 |
ANF10 |
1 | ||
| 55330-75020 |
ANF10 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-75010 |
ANF10 |
1 | ||
| 55343-75010 |
ANF10 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55472-75020 |
ANF10 |
1 | ||
| 55404-75020 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ |
1 | ||
| 55404-75050 |
ANF10 ｵｰﾃﾞｨｵ−有り(BD,SD,ﾃﾞｼﾞﾀﾙTV),15ｽﾋﾟｰｶ,*MAR |
1 | ||
| 55472-75080 |
ANF10 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-75020E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55408-75020C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55408-75040E0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,DK. BROWN,TRIM05,06,07 |
1 | ||
| 55408-75040C0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,BLACK,TRIM06,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-75020E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55408-75020C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55408-75040E0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,DK. BROWN,TRIM05,06,07 |
1 | ||
| 55408-75040C0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,BLACK,TRIM06,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-75020C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55409-75040E0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,DK. BROWN,TRIM05,06,07 |
1 | ||
| 55409-75020E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55409-75040C0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,BLACK,TRIM06,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-75020C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55409-75040E0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,DK. BROWN,TRIM05,06,07 |
1 | ||
| 55409-75020E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55409-75040C0 |
ANF10 ｵｰﾃﾞｨｵ−ﾏｰｸﾚﾋﾞﾝｿﾝ,15ｽﾋﾟｰｶ,BLACK,TRIM06,2# |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-75010C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55961-75010E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-75010E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55962-75010C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-75010E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55981-75020C0 |
ANF10 “version L”&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*PB&*RPCS),BLACK,TRIM06,2# |
1 | ||
| 55981-75020E0 |
ANF10 “version L”&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*PB&*RPCS),DK. BROWN,TRIM05,06,07 |
1 | ||
| 55981-75020E0 |
ANF10 “version I”&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB),DK. BROWN,TRIM05,06,07 |
1 | ||
| 55981-75020C0 |
ANF10 “version I”&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*PB),BLACK,TRIM06,2# |
1 | ||
| 55981-75010C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-75030 |
ANF10 |
1 | ||
| 73960-75030 |
ANF10 |
1 | ||
| Common parts | ||||
| 90105-08120 | None epc.PartDetail.None | |||
| 90159-50327 | None epc.PartDetail.None | |||
| 90159-60613 | None epc.PartDetail.None | |||
| 90179-06308 | None epc.PartDetail.None | |||
| 90183-05103 | None epc.PartDetail.None | |||
| 90467-10201 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| 91673-80816 | None epc.PartDetail.None | |||
| 91674-80818 | None epc.PartDetail.None | |||
| 93568-55014 | None epc.PartDetail.None | |||
| 94151-80800 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(0907-1301)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75010 |
ANF10 |
1 | ||
| 55054-75010 |
ANF10 |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42020 |
ANF10 |
1 | ||
| 55388-75050 |
ANF10 |
1 | ||
| 55388-75050 |
ANF10 |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-42020 |
ANF10 |
1 | ||
| 55389-42020 |
ANF10 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-75030C3 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55403-75030C7 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55403-75030C5 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55403-75030E2 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55403-75030E4 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55403-75030C6 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-75050 |
ANF10 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-75030 |
ANF10 |
1 | ||
| 55418-75030 |
ANF10 |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55422-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55432-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55432-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-75030E3 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55435-75030C5 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55435-75030C6 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55435-75030C4 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55435-75030C1 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55435-75030E1 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-75030C1 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55436-75030C5 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55436-75030C4 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55436-75030E1 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55436-75030E3 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55436-75030C6 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55446-75031A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55446-75031A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55446-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55446-75031C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55446-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-75030 |
ANF10 |
1 | ||
| 55459-75020 |
ANF10 |
1 | ||
| 55463B - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 55463-75070 |
ANF10 |
1 | ||
| 55463-75070 |
ANF10 |
1 | ||
| 55473A - RETAINER, INSTRUMENT PANEL FINISH PANEL | ||||
| 55473-75030 |
ANF10 |
1 | ||
| 55538 - RETAINER,GLOVE COMPARTMENT | ||||
| 55567-75020 |
ANF10 |
1 | ||
| 55567-75020 |
ANF10 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-48050 |
ANF10 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-75040A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55539-75040C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55539-75040A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
ANF10 ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｶﾞｲﾄﾞ付き & *WVFM) |
1 | ||
| 55539-48040 |
ANF10 |
1 | ||
| 55539-48040 |
ANF10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
ANF10 “version I” |
1 | ||
| 55539-48040 |
ANF10 “version L” |
1 | ||
| 55539-48040 |
ANF10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-75061A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75060A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75062A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75060A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75061A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75061C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55550-75062A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75062C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55550-75060C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 90541-04002 |
ANF10 |
2 | ||
| 55557-53030 |
ANF10 |
2 | ||
| 90541-04002 |
ANF10 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 90541-04002 |
ANF10 |
2 | ||
| 55557-53030 |
ANF10 |
2 | ||
| 90541-04002 |
ANF10 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55560-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55560-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
ANF10 |
1 | ||
| 55562-10010 |
ANF10 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55569-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55569-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-75010 |
ANF10 |
1 | ||
| 55606-75011 |
ANF10 |
1 | ||
| 55606-75011 |
ANF10 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-75010 |
ANF10 |
1 | ||
| 55607-75040 |
ANF10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55650-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55660-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-75051 |
ANF10 |
1 | ||
| 55670-75020 |
ANF10 |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58810-75020C1 |
ANF10 ﾄﾞｱﾄﾘﾑ−木目ﾊﾟﾈﾙ(ｳｫｰﾙﾅｯﾄ/ﾐﾃﾞｨｱﾑﾌﾞﾗｳﾝ)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),BLACK/WATER WHITE,TRIM06 |
1 | ||
| 58810-75020E1 |
ANF10 DK. BROWN/IVORY,TRIM0# |
1 | ||
| 58810-75020C1 |
ANF10 ﾄﾞｱﾄﾘﾑ−木目ﾊﾟﾈﾙ(ﾊﾞｰｽﾞｱｲﾒｲﾌﾟﾙ/ｸﾞﾚｰ)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),BLACK/WATER WHITE,TRIM06 |
1 | ||
| 58810-75020C2 |
ANF10 BLACK/BLACK,TRIM2# |
1 | ||
| 58995C - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-75040 |
ANF10 |
1 | ||
| 58995-75040 |
ANF10 |
1 | ||
| 58997A - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-75010 |
ANF10 |
1 | ||
| 58997-75010 |
ANF10 |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
ANF10 |
2 | ||
| 62199-48010 |
ANF10 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 73900-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 73900-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-75020A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 73990-75020A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 73990-75020C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 67771-58020 | None epc.PartDetail.None | |||
| 90119-06480 | None epc.PartDetail.None | |||
| 90119-06951 | None epc.PartDetail.None | |||
| 90159-50327 | None epc.PartDetail.None | |||
| 90159-60303 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 90468-05138 | None epc.PartDetail.None | |||
| 91535-60816 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| 93568-55012 | None epc.PartDetail.None | |||
| 93568-55016 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
ILLUST NO. 2 OF 3(1301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75010 |
ANF10 |
1 | ||
| 55054-75010 |
ANF10 |
1 | ||
| 55388B - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42020 |
ANF10 |
1 | ||
| 55388-75050 |
ANF10 |
1 | ||
| 55388-75050 |
ANF10 |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-42020 |
ANF10 |
1 | ||
| 55389-42020 |
ANF10 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-75030C3 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55403-75030C7 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55403-75030C5 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55403-75030E2 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55403-75030E4 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55403-75030C6 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-75050 |
ANF10 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-75030 |
ANF10 |
1 | ||
| 55418-75030 |
ANF10 |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55422-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55432-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55432-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-75030E3 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55435-75030C5 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55435-75030C6 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55435-75030C4 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55435-75030C1 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55435-75030E1 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-75030C1 |
ANF10 BLACK/SADDLE TAN NO.044,TRIM26 |
1 | ||
| 55436-75030C5 |
ANF10 BLACK/CAMEL YELLOW NO.043,TRIM28 |
1 | ||
| 55436-75030C4 |
ANF10 BLACK/BLACK,TRIM06,25,27 |
1 | ||
| 55436-75030E1 |
ANF10 DK. BROWN/SADDLE TAN,TRIM07 |
1 | ||
| 55436-75030E3 |
ANF10 DK. BROWN/BLACK,TRIM05 |
1 | ||
| 55436-75030C6 |
ANF10 BLACK/SADDLE TAN,TRIM29 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55446-75031A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55446-75031A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55446-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55446-75031C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55446-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-75030 |
ANF10 |
1 | ||
| 55459-75020 |
ANF10 |
1 | ||
| 55463B - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 55463-75070 |
ANF10 |
1 | ||
| 55463-75070 |
ANF10 |
1 | ||
| 55538 - RETAINER,GLOVE COMPARTMENT | ||||
| 55567-75020 |
ANF10 |
1 | ||
| 55567-75020 |
ANF10 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-75040A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55539-75040C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55539-75040A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
ANF10 ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(ｶﾞｲﾄﾞ付き & *WVFM) |
1 | ||
| 55539-48040 |
ANF10 |
1 | ||
| 55539-48040 |
ANF10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-48040 |
ANF10 “version I” |
1 | ||
| 55539-48040 |
ANF10 “version L” |
1 | ||
| 55539-48040 |
ANF10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-75061A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75060A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75062A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75060A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55550-75061A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75061C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55550-75062A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55550-75062C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55550-75060C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 90541-04002 |
ANF10 |
2 | ||
| 55557-53030 |
ANF10 |
2 | ||
| 90541-04002 |
ANF10 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55560-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55560-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
ANF10 |
1 | ||
| 55562-10010 |
ANF10 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 55569-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 55569-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-75010 |
ANF10 |
1 | ||
| 55606-75011 |
ANF10 |
1 | ||
| 55606-75011 |
ANF10 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-75010 |
ANF10 |
1 | ||
| 55607-75040 |
ANF10 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55650-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-75030E0 |
ANF10 DK. BROWN,TRIM05,06,07 |
1 | ||
| 55660-75030C0 |
ANF10 BLACK,TRIM06,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-75051 |
ANF10 |
1 | ||
| 55670-75020 |
ANF10 |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58810-75020C1 |
ANF10 ﾄﾞｱﾄﾘﾑ−木目ﾊﾟﾈﾙ(ｳｫｰﾙﾅｯﾄ/ﾐﾃﾞｨｱﾑﾌﾞﾗｳﾝ)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),BLACK/WATER WHITE,TRIM06 |
1 | ||
| 58810-75020E1 |
ANF10 DK. BROWN/IVORY,TRIM0# |
1 | ||
| 58810-75020C1 |
ANF10 ﾄﾞｱﾄﾘﾑ−木目ﾊﾟﾈﾙ(ﾊﾞｰｽﾞｱｲﾒｲﾌﾟﾙ/ｸﾞﾚｰ)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ),BLACK/WATER WHITE,TRIM06 |
1 | ||
| 58810-75020C2 |
ANF10 BLACK/BLACK,TRIM2# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-75040 |
ANF10 |
1 | ||
| 58995C - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-75040 |
ANF10 |
1 | ||
| 58995-75040 |
ANF10 |
1 | ||
| 58997A - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-75010 |
ANF10 |
1 | ||
| 58997-75010 |
ANF10 |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
ANF10 |
2 | ||
| 62199-48010 |
ANF10 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-75030A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 73900-75030C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| 73900-75030A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-75020A1 |
ANF10 WATER WHITE,TRIM06 |
1 | ||
| 73990-75020A0 |
ANF10 IVORY,TRIM05,07 |
1 | ||
| 73990-75020C0 |
ANF10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | None epc.PartDetail.None | |||
| 90159-50327 | None epc.PartDetail.None | |||
| 90159-60303 | None epc.PartDetail.None | |||
| 90467-12080 | None epc.PartDetail.None | |||
| 90468-05138 | None epc.PartDetail.None | |||
| 91535-60816 | None epc.PartDetail.None | |||
| 91631-J0612 | None epc.PartDetail.None | |||
| 91673-80616 | None epc.PartDetail.None | |||
| 93560-54012 | None epc.PartDetail.None | |||
| 93568-55012 | None epc.PartDetail.None | |||
| 93568-55016 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8121 | ||||

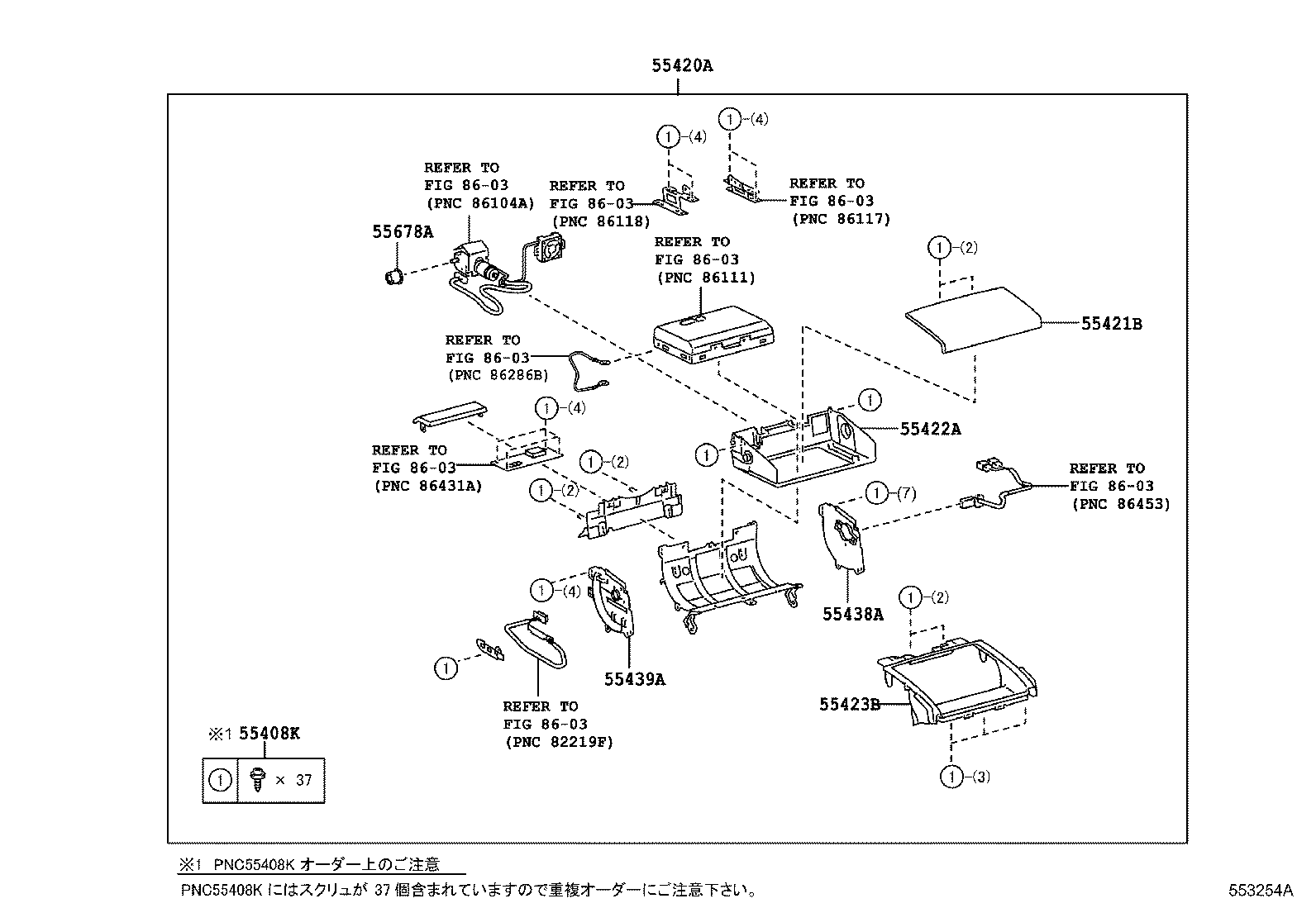

ILLUST NO. 3 OF 3(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55408K - SCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END | ||||
| 55408-75080 |
ANF10 |
1 | ||
| 55408-75080 |
ANF10 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-75032 |
ANF10 |
1 | ||
| 55420-75031 |
ANF10 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-75060 |
ANF10 |
1 | ||
| 55421-75070 |
ANF10 |
1 | ||
| 55421-75061 |
ANF10 |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-75090 |
ANF10 |
1 | ||
| 55422-75060 |
ANF10 |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-75090 |
ANF10 |
1 | ||
| 55423-75060 |
ANF10 |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-75040 |
ANF10 |
1 | ||
| 55438-75040 |
ANF10 |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-75030 |
ANF10 |
1 | ||
| 55439-75030 |
ANF10 |
1 | ||
| 55678A - GEAR, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55678-20070 |
ANF10 |
1 | ||
| 55678-20070 |
ANF10 |
1 | ||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
