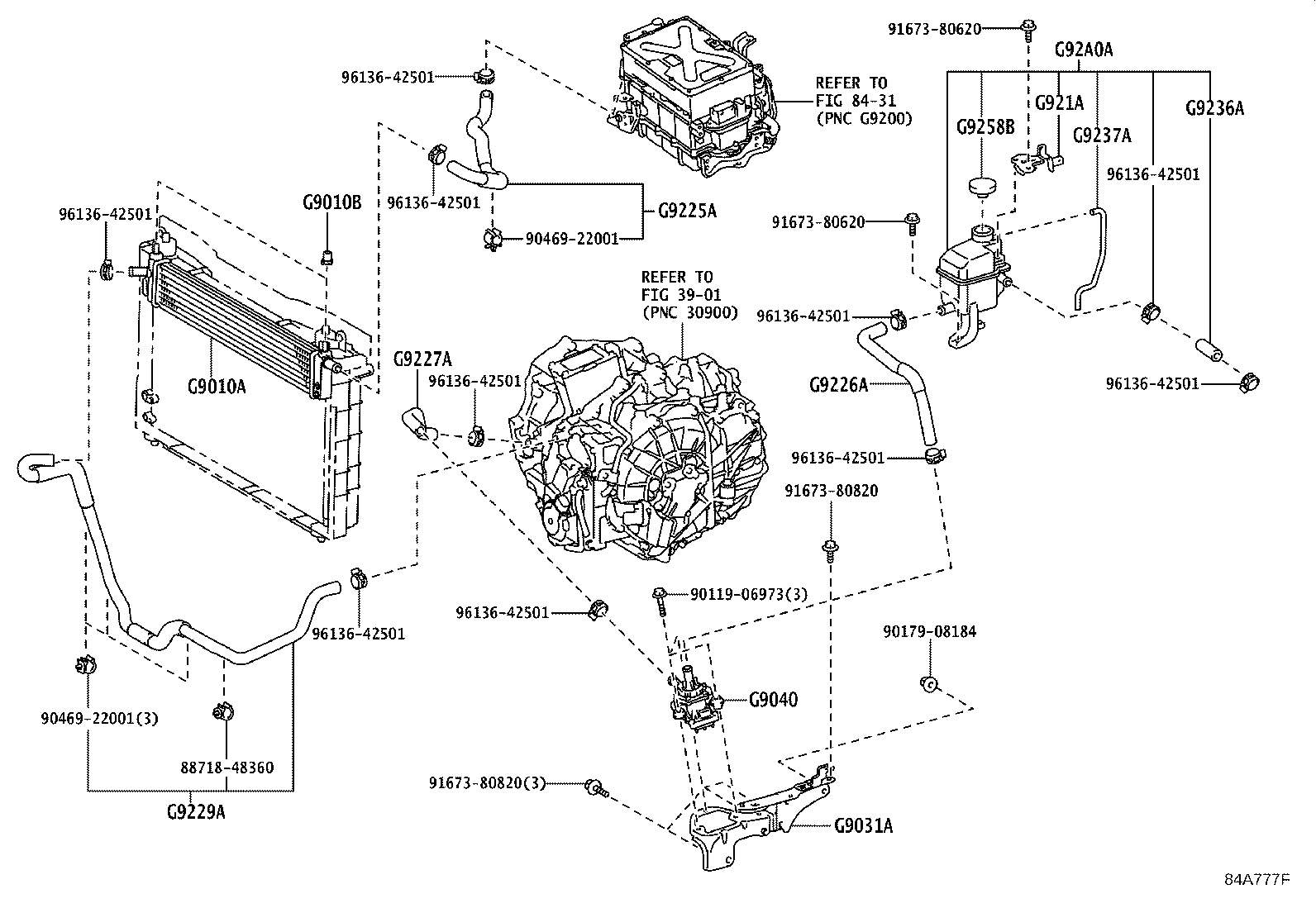

Toyota Lexus hs250h ANF10 INVERTER COOLING

Part #	Description	Period	Qty
G9010A - RADIATOR ASSY
G9010-75011	ANF10	06/2010 - 01/2013	1
G9010-75010	ANF10	07/2009 - 06/2010	1
G9010B - CUSHION, INVERTER RADIATOR
16716-37010	ANF10	07/2009 - 01/2013	2
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9031-75010	ANF10	07/2009 - 01/2013	1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-33010	ANF10	07/2009 - 01/2013	1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G921A-75011	ANF10	07/2009 - 01/2013	1
G9225A - HOSE, INVERTER COOLING, NO.7
G9225-75010	ANF10	07/2009 - 01/2013	1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-75010	ANF10	07/2009 - 01/2013	1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-75010	ANF10	07/2009 - 01/2013	1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-75010	ANF10	07/2009 - 01/2013	1
G9236A - HOSE, INVERTER COOLING, NO.6
G9236-75010	ANF10	07/2009 - 01/2013	1
G9237A - HOSE, INVERTER DRAIN
G9237-75010	ANF10	07/2009 - 01/2013	1
G9258B - CAP, INVERTER RESERVE TANK
G9258-28010	ANF10	07/2009 - 08/2009	1
G9258-28011	ANF10	09/2009 - 01/2013	1
G92A0A - TANK ASSY, INVERTER RESERVE
G92A0-75011	ANF10	07/2009 - 01/2013	1
Common parts
88718-48360
90119-06973
90179-08184
90469-22001
91673-80620
91673-80820
96136-42501
Linked diagrams
3901
8431

ANF10-AEXVB (2009)
