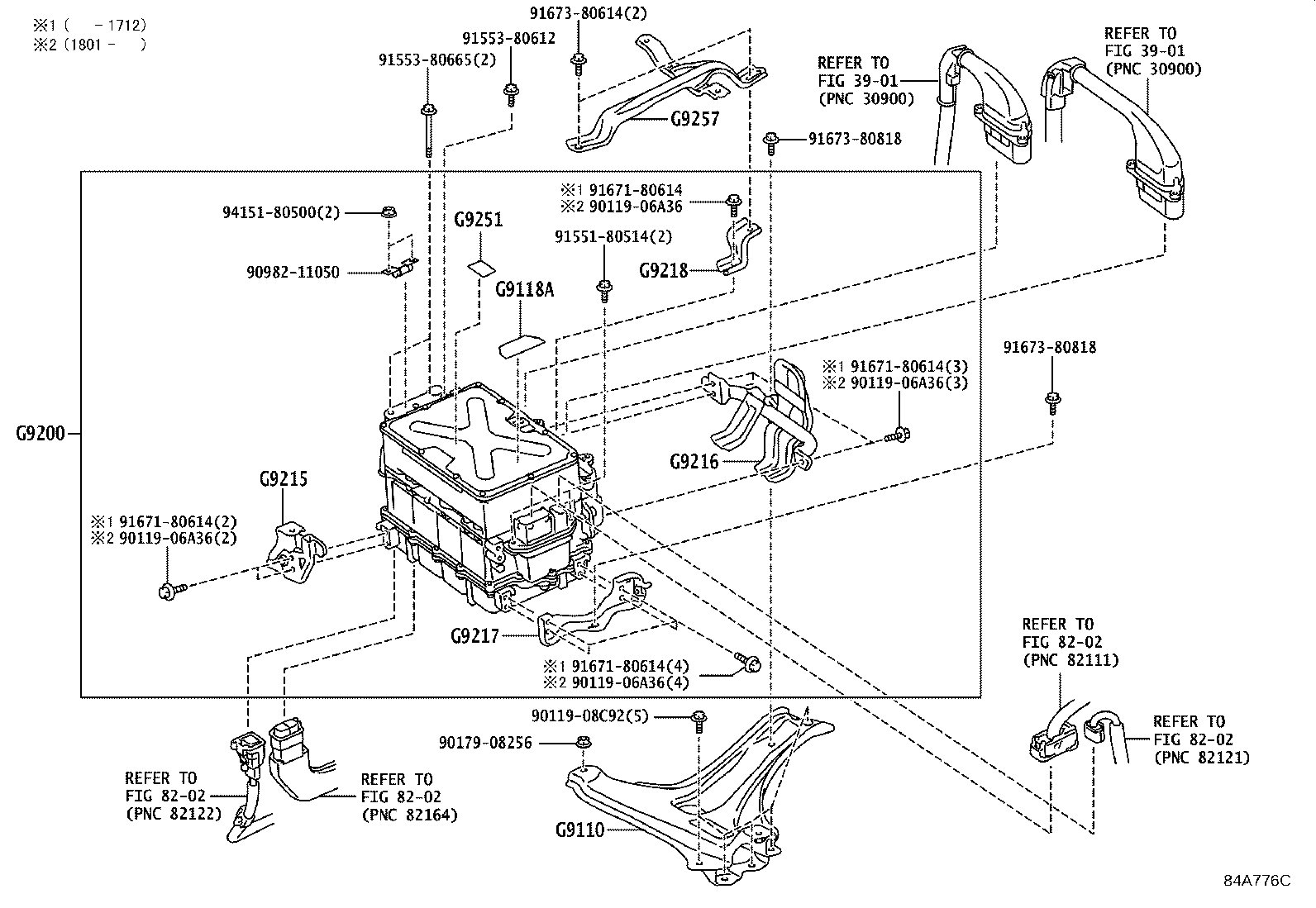

Toyota Lexus hs250h ANF10 HV INVERTER

Part #	Description	Period	Qty
G9110 - BRACKET ASSY, INVERTER
G9110-75010	ANF10	07/2009 - 01/2013	1
G9118A - LABEL, HV MOTOR CONTROL INVERTER CAUTION
G9118-30020	ANF10	07/2009 - 01/2013	1
G9200 - INVERTER ASSY, W/CONVERTER
G9200-75010	ANF10	07/2009 - 08/2012	1
G9200-75011	ANF10	09/2012 - 01/2013	1
G9215 - BRACKET, INVERTER, NO.2
G9215-75010	ANF10	07/2009 - 01/2013	1
G9216 - BRACKET, INVERTER, NO.3
G9216-75010	ANF10	07/2009 - 01/2013	1
G9217 - BRACKET, INVERTER, NO.4
G9217-75010	ANF10	07/2009 - 01/2013	1
G9218 - BRACKET, INVERTER, NO.7
G9218-75010	ANF10	07/2009 - 01/2013	1
G9251 - SEAT, INVERTER NAME
G9251-47010	ANF10	07/2009 - 01/2013	1
G9257 - BRACKET, INVERTER, NO.5
G9257-75010	ANF10	07/2009 - 01/2013	1
Common parts
90119-06A36
90119-08C92
90179-08256
90982-11050
91551-80514
91553-80612
91553-80665
91671-80614
91673-80614
91673-80818
94151-80500
Linked diagrams
3901
8202

ANF10-AEXVB (2009)
